8kw-108kw CE PROVED Hydraulic Lighting Tower Generator1.World famous engine
2.H class Brushless alternator
3.Warranty 1ye

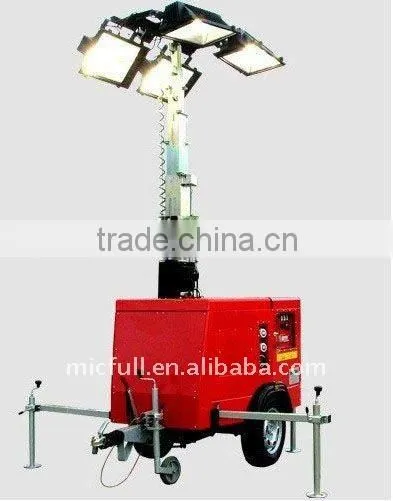

8kw-108kw CE PROVED Hydraulic Lighting Tower Generator
Parameters:
Model |
ENLT5000 |
ENLT6000 |
ENLT20000 |
|
Mast & Lamp |
Max. extension of mast |
4.8m |
9m |
9m |
Stages |
2 |
3 |
3 |
|
Total power of lamps |
4*400W |
4*1000W |
4*1000W |
|
Light capacity |
4*250000 lumen |
4*110000lumen |
4*110000lumen |
|
Lifetime of lamp |
2000 hours |
5000 hours |
5000 hours |
|
Generator |
Model |
BLTD6500I |
BLTD-10k |
BLTD-20C |
Rated Power |
50Hz 4.2kw |
50Hz 6.0kw |
50Hz 20kw |
|
60Hz 5.0kw |
60Hz 8.0kw |
60Hz 23kw |
||
Standby Power |
50Hz 4.5kw |
50Hz 7.0kw |
50Hz 22kw |
|
60Hz 5.5kw |
60Hz 9.0kw |
60Hz 25kw |
||
Engine model |
RP186FA |
Kubota D1105-BG |
Perkins 1003G |
|
Fuel tank capacity |
16L |
100L |
120L |
|
Prime fuel consumption |
≤1.65L/h |
≤2.0L/h |
≤5.25L/h |
|
Trailer |
Stabilizer Support |
4*manual |
5*manual |
5*manual |
Tire Size |
Diameter=25cm |
Diameter=25cm |
Diameter=25cm |
|
Anti-wind capacity |
≤6 |
≤10 |
≤10 |
|
Dimension |
Dimension(mm) |
1300*840*2600 |
4400*1200*1930 |
4400*1450*2100 |
Net Weight |
350kg |
870kg |
1950kg |
|
Engine Features:
1. World most famous brand diesel engine: Kubota/Yanmar/Perkins/Cummins
2. Mufti-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily
Alternator Features:
1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, ENGGA
2. Brushless, 4 poles, rotation magnet
3. IP21-23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤±1%
Soundproof/Slient Box:
1. Excellent ventilation
2. Oil tank mounted on base frame for 12 Hours working
3. Highly Corrosion Resistant construction
4. Excellent Access for Maintenance
5. Security and safety
6. 1m<80dB/7m<70dB
Control Panel:
1. Automatic control panel(AMF), LCD display
2. Four protection systems
3. Emergency stop
Optional:
1. Trailer type
2. Soundproof/water proof
3. ATS(automatic transfer switch)
4. Parallel system
5. Remote system
