portable high mast light tower

Name: portable high mast light tower
Brand: Boomaster
Price: USD $1,500 - 2,500 / Set

FOB Price

USD $1,500 - $2,500 / Set

1 Set(Min.Order)

Product Details

Place of Origin:

Fujian, China

Brand Name:

Boomaster

Model Number:

BLT-4000

light tower
5kw disel generator set 4x1000w metal halide lamp installed on the versatile tower frame
mast can be extend to 9m

LIGHT TOWER

1.5kw diesel generator set

2.Versatile Tower frame (360 degree non-continuous)

3.Withstands winds up to 72mph

4.Mast extends to 9m, can be rotated 360 degrees

5.Four 1.000-watt metal halide floodlights illuminate an area of 5-7 acres

Mobile Light Tower


MODEL	BLT4000
Mast
Maximum extention of mast	9m
Elevation	Mechanical / Electric
Rasing / Lowing mast	Winch(Mechanical) / Button(Electric)
Stages	3
Turning angle	360 degree non-continuous
Lamp
Total power of lamps	4×1000W
Type of lamp	Metal halide lamp
Light capacity	4×110000 lumen
Frequency	50Hz / 60Hz
Lifetime of lamp	5000 hours
Working temperature	≤85°C
Connection protection index	IP54
Light Coverage	5 to 7 acres

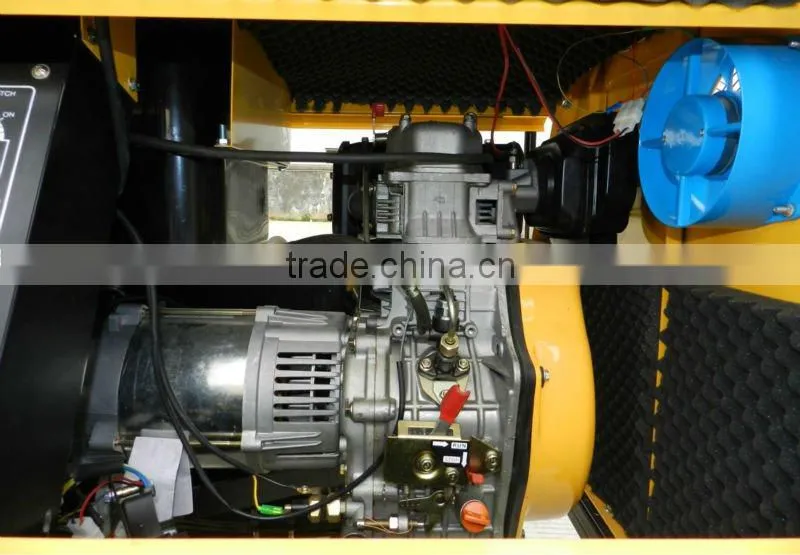

Characterisitics of the generator
Model	DG7500S
Rated power	50Hz 4.5 kW 60Hz 5.0kW
Standby power	50Hz 5.0 kW 60Hz 5.5kW
Voltage	120,220,230,240
Engine model	186FA
Engine speed	50Hz 3000 rpm 60Hz 3600 rpm
Starting systerm	Electric
Alternator	2-pole,brushless
Fule tank capacity	36L
Prime fuel consumption at 100% load	1.65L/h
Working hours	28
Control systerm	Mechanical control pannel
Power outlet	2
Trailer
Tow hitch	Ring or ball hitch
Stabilier Support	5 × manual
Tire Size	Diameter=52cm
Anti-wind capacity	≤10
Brakes	Manual
Dimension & Weight
Retracted Dimension	4400 × 1200 × 1930
Container load (20FT / 40FT)	8 / 16 (At least)
Net weight	680kg
Other Options:
6m mast
Truck tire (Diameter=65cm)
