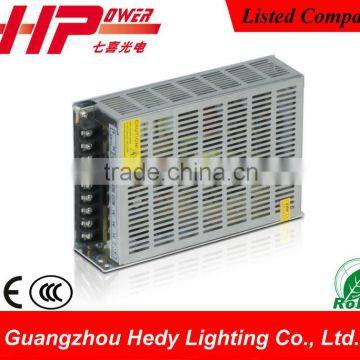

Help CenterHigh Quality 200w DC Single Output Ite Power Supply 12v
Related Products
-
Single Output Constant Voltage 120W 5V S-50-24 Power SupplyUS$ 8 - 8MOQ: 1 Set -
Guangzhou Factory Sell Constant Voltage 300w 12v Power Supply for Car StereoUS$ 14 - 16MOQ: 1 Set
-
200w 15v IP67 Waterproof lg Power Supply Lcd tvUS$ 10 - 20MOQ: 1 Set
-
HEDY 100w 24v Led Switching Power Supply,Guangzhou FactoryUS$ 7 - 12MOQ: 1 Set
-
36w 12v LED Transformer With CE RoHS, Guangzhou FactoryUS$ 3 - 15MOQ: 1 Set
Specifications
200w ite power supply 12vInput voltage: 90~132VAC/180~264VAC
Output voltage: 12v
Constant voltage
200w ite power supply 12v description:
Rated power: 200W
Output voltage: DC12V
Business type: Manufacturer/Factory
Trade Mark: HPower
Certificates: CE, RoHS, CCC
Warranty: 2 years
200w ite power supply 12v features:
v Universal AC input/Full range
v Protection: Short circuit/Overload /Over Voltage/Over Temperature
v Cooling by free air convection
v Bult-in constant current limiting circuit
v LED indicator for power on
v 100% full load bult-in test
200w ite power supply 12v applications:
1.Digital and electronic products;
2.LCD, LED, CCTV camera;
3.Communications and security products;
4.Electrical equipment, Instrumentation
5.LED display, led strip, nixie tube, street light, lamp;
6. Building lighting decoration.
200w power supply details:
200w Series, include output 5v, 12v, 15v, 24v and 36v.
| Model | HB-200W-5V | HB-200W-12V | HB-200W-15V | HB-200W-24V | HB-200W-36V | |
| Output | DC Voltage | 5V | 12V | 15V | 24V | 36V |
| Rated Current | 40A | 17A | 13A | 8.5A | 5.5A | |
| Current Range | 0~40A | 0~17A | 0~13A | 0~8.5A | 0~5.5A | |
| Rated Power | 200W | 204W | 195W | 204W | 198W | |
| Ripple & Noise (max.) | 100mVp-p | 100mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | |
| Voltage Adj. Range | 4.75~5.5V | 11.4~13.2V | 14.3~16.5V | 22.8~26.4V | 34.2~39.6V | |
| Voltage Tolerance | ±2.0% | ±2.0% | ±2.0% | ±1.0% | ±1.0% | |
| Line Regulation | ±1.0% | ±1.0% | ±1.0% | ±0.5% | ±0.5% | |
| Load Regulation | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ±5.0% | |
| Setup,Rise time | 600ms,30ms at full load | |||||
| Hold Up Time(Typ.) | 13ms at full load | |||||
| Input | Voltage Range | 90~132VAC/180~264VAC | ||||
| Frequency Range | 47~63HZ | |||||
| Efficiency(Typ.) | 83% | 86% | 85% | 88% | 90% | |
| AC Current (Typ.) | 5A/115VAC 3A/230VAC | |||||
| Inrush Current (Typ.) | 30A/115VAC 50A/230VAC | |||||
| Leakage Current | <2mA / 240VAC | |||||
| Protection | Over Load | 110~115% rated output power | ||||
| Protection type: Shut down O/P,re-power on to recover | ||||||
| Over Voltage | 5.5~6.75V | 13.2~16.2V | 16.5~20.25V | 26.4~32.4 | 39.6~48.6V | |
| Protection type: Shut down O/P,re-power on to recover | ||||||
| Over Temperature | 100°C±5°C(5V~12V); 105°C±5°C(15V~36V); TSW1 detect on main power transformer for others | |||||
| Protection type: Shut down O/P,recovers automatically after temperature goes down | ||||||
| Environment | Working Temperature | -20~+40°C | ||||
| Working Humidity | 20~90% RH Non-condensing | |||||
| Storage temp.& humidity | -20~+85°C, 10~95%RH | |||||
| Temp. coefficient | ±0.03%/°C (0~50°C) | |||||
| Vibration | 10 ~ 500Hz, 3G 10min./1 cycle,60min.each along X,Y,Z axes | |||||
| Safety & EMC | Safety Standards | UL60950-1 approved | ||||
| Withstand Voltage | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH | |||||
| Others | MTBF | 10000hrs MIL-HDBK-217F (25°C) | ||||
| Dimension | 200*110*50mm (L*W*H) | |||||
| Packing | 0.67Kg; 27pcs/19.8Kg/1.79CUFT | |||||
| Note | 1. All parameters NOT specially mentioned are measured at 220VAC input, rated load and 25°C of ambient temperature. | |||||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 10uf parallel capacitor. | ||||||
| 3. Tolerance: includes set up tolerance, line regulation and load regulation. | ||||||
| 4. Derating may be needed under low input voltages. | ||||||

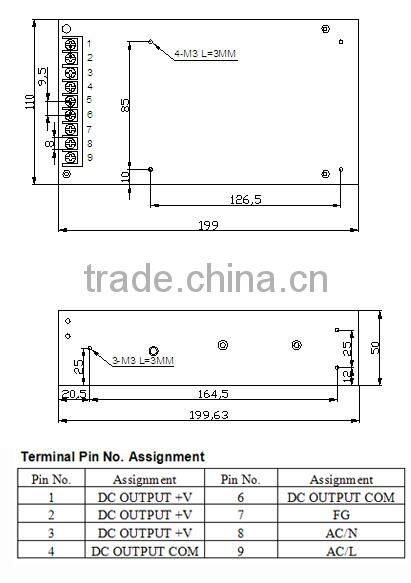

200w ite power supply 12v structural drawing:
200w ite power supply 12v derating curve:
200w ite power supply 12v delivery and packaging:
Lead time: 7-15 days
0.67kg/pc; 27pcs/carton; 19.8Kg/carton; 1.79cuft/carton
Delivery method:
ü Express service: FedEx/DHL/UPS/TNT/EMS
ü Air transportation: factory to airport
ü Ocean shipping: factory to port

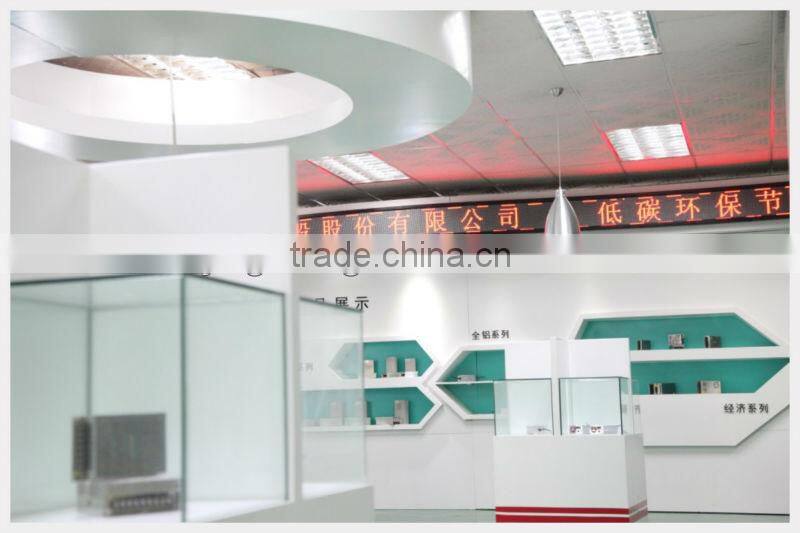

Our switching power supply show room:

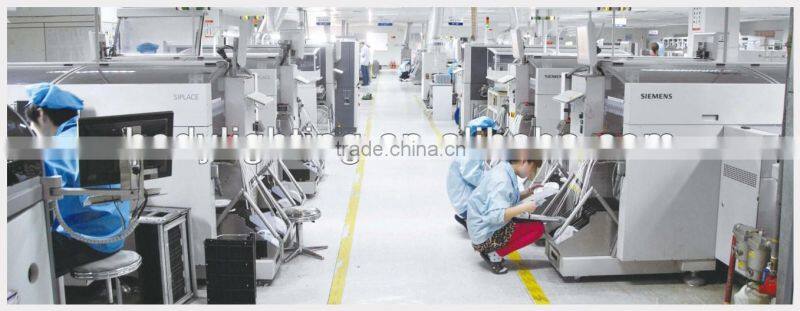

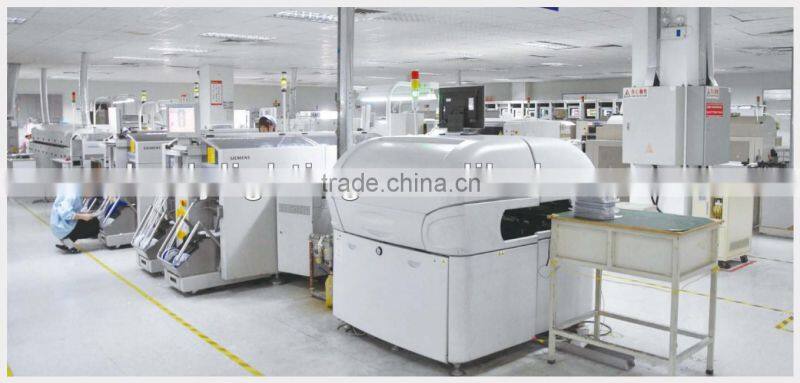

Our switching power supply workshop:
