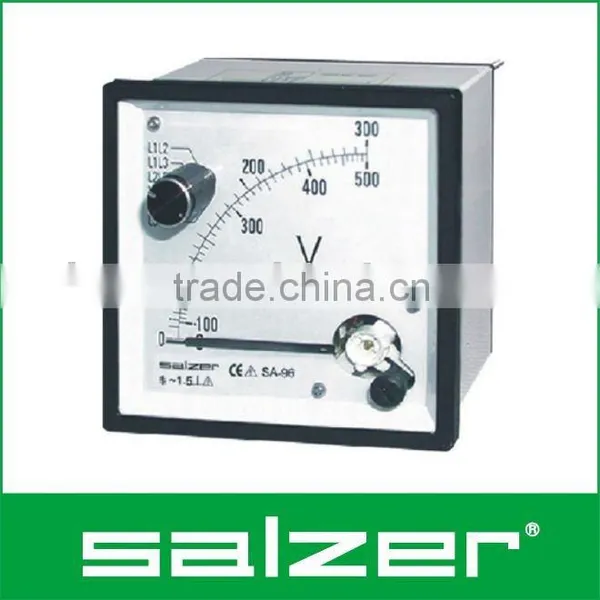

Help CenterSalzer Brand Analog AC Voltmeter With Change Over Switch
Related Products
Specifications
3 phase 3 wire: 100V, 150V, 200V. 250V, 400V, 500V3 phase 4 wire: 60V/100V, 80V/150V, 100V/200V
Accuracy: Class1.5
The instrument are suitable for measuring AC Voltages in three phase 4 or 3 wire networks by using a change over switch on the fornt side of the instrument.
Feature: With cover on movement (F), without cover on movement(c).
Model: SA-Z96V, SA-Z72V.
Technical data:
Movement: Moving-iron movement with oil filled bearings,practically vibration-free oil damping.
Class of accuracy: 1.5.
Frequency range: 50Hz.
3 phase 3 wire Measuring range: 100V, 150V, 200V. 250V, 400V, 500V
3 Position: L1-L2, L1-L3, L2-L3.
3 phase 4 wire Measuring range: 60V/100V, 80V/150V, 100V/200V.
150V/250V, 250V/400V, 300/500V.
6 Position: L1-L2, L1-L3, L2-L3, L1-N, L2-N, L3-N.
7 Position: L1-L2, L1-L3, L2-L3, L1-N, L2-N, L3-N, OFF.
Heat resistance: Case of non-combustible plastic material.Fastening by means of nuts, absolutely safe, fast, robust, side-by-side.
Mounting depth: Max 43mm.
