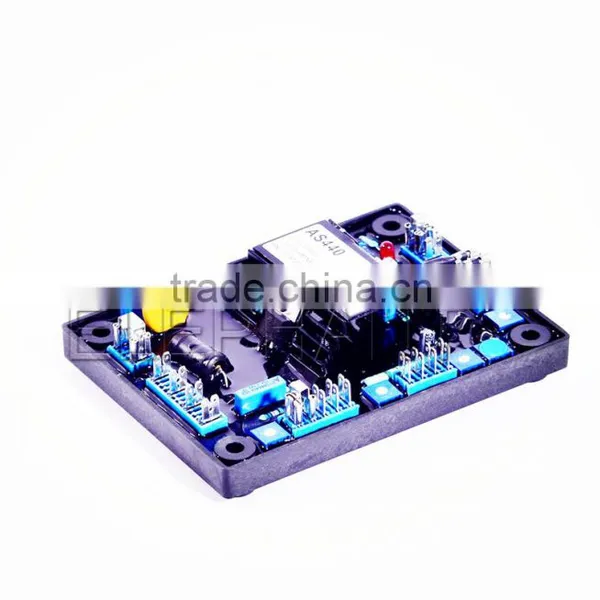

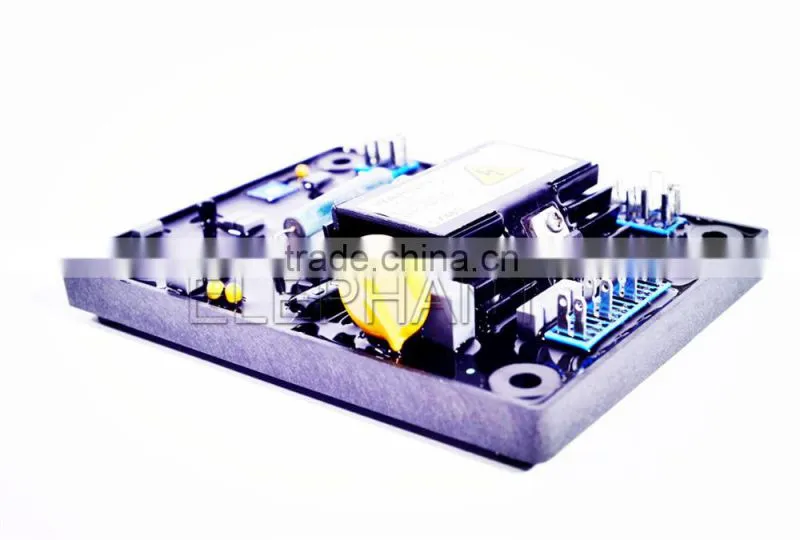

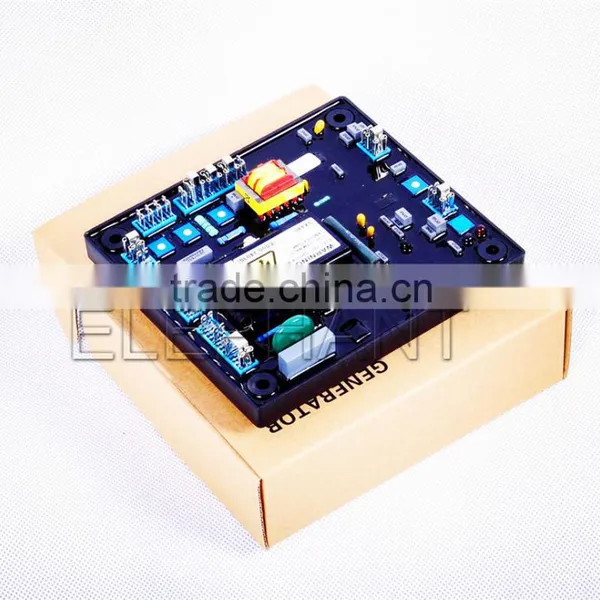

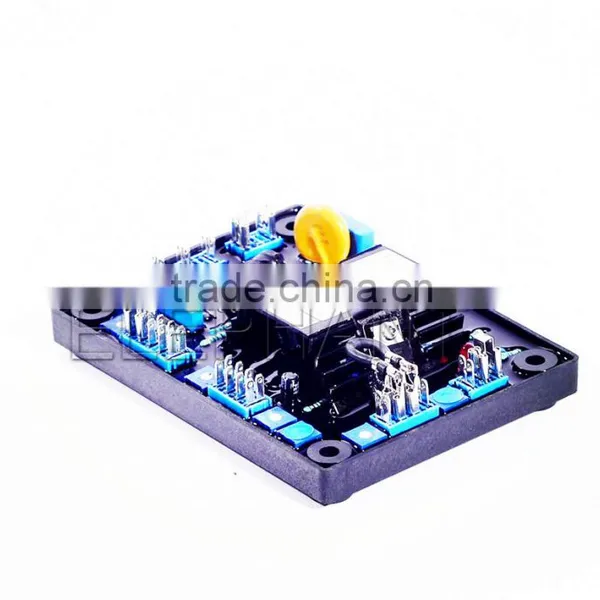

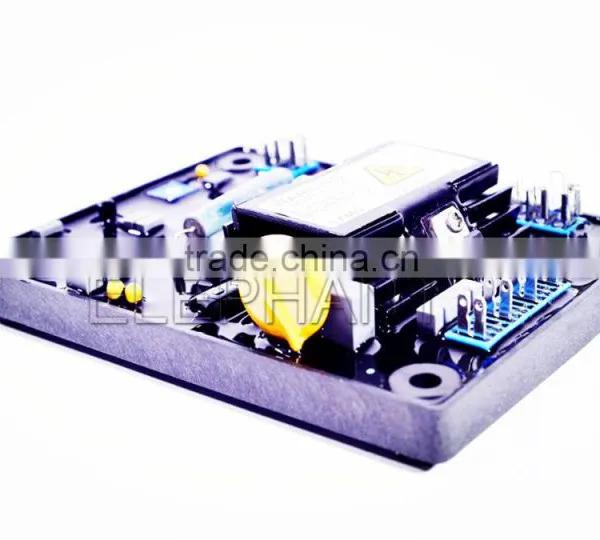

SX460 Industrail Diesel Generator AVR
APPLICATION
Sx460 is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator.
In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator.
Tech data
| AVR | SX460 |
| Sensing voltage | jumper selectable120(95-132)VAC, 240(190-264)VAC, single phase 2wire |
| Frenquency | 50-60Hz nominal |
| Voltage Input | Max 90VDC at 207VAC input |
| Resistance | 15 Ω minimum |
| Regulation | <±1% RMS with 4% engine governing |
| Voltage Build-up | residual voltage at avr terminal >5vac |
| External Voltage Adjustment | :+/-7% with 1k ohm 1 watt trimmer |
| Generator Power | <150kw |
