Product Details

Place of Origin	Zhejiang, China		Brand Name	SALZER
Model Number	ZL-803

Product Description

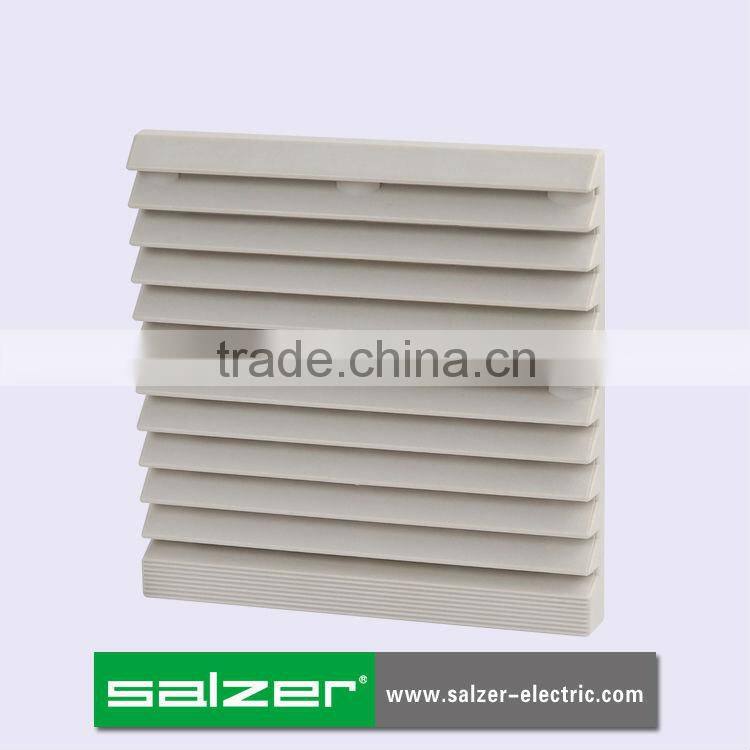

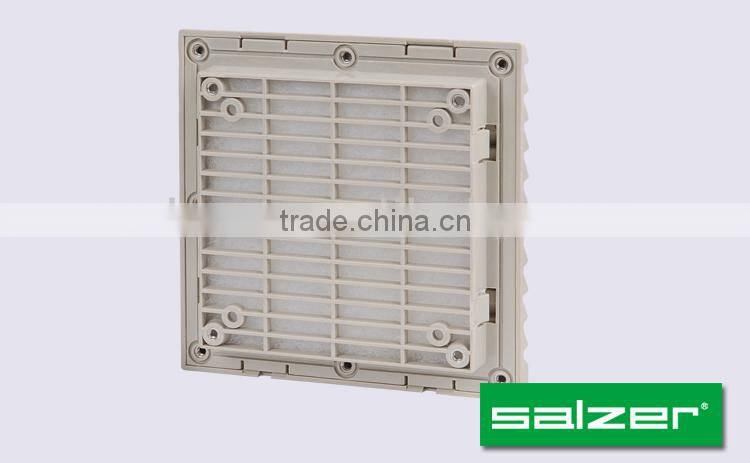

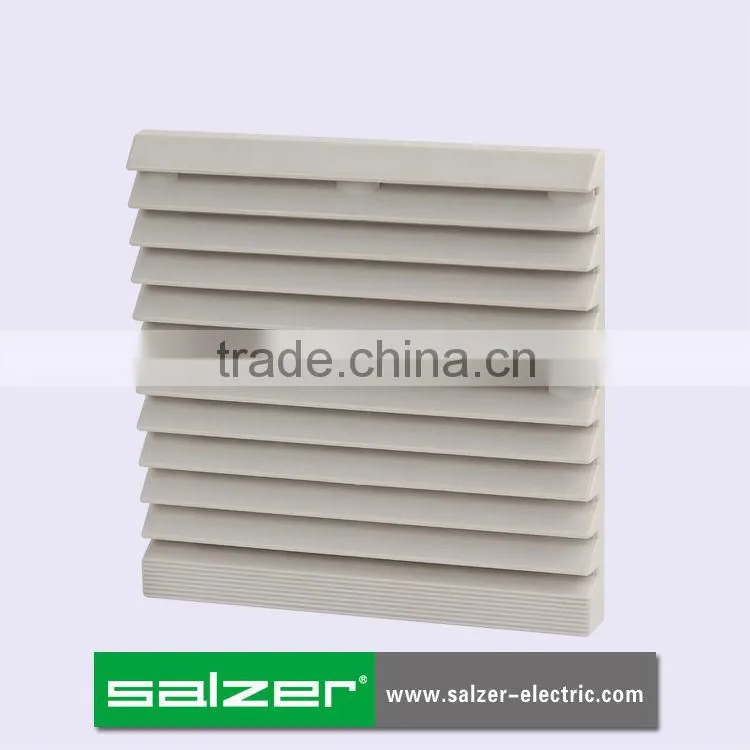

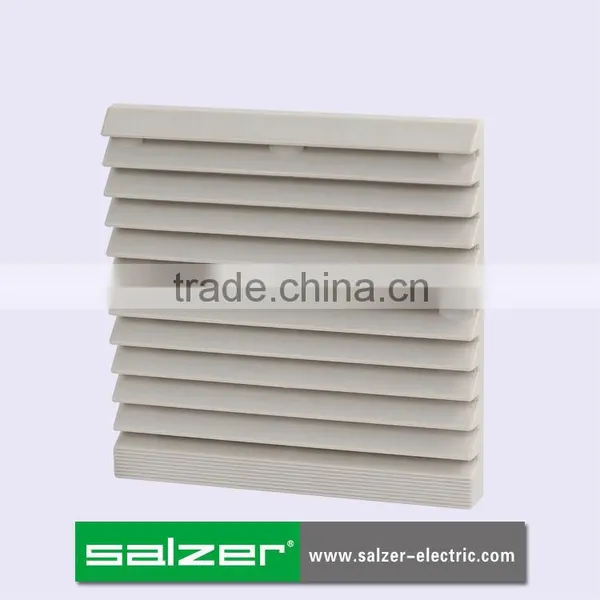

SALZER ZL-803 Fan Dust Filter (For Fan 120X120)

General Information

Material: The fan dust filter adopts ABS resin for shell to improve its resistance to flame and ultraviolet ray. In addition, it adopts imported nylon fiber synthetic resin for filter gauze to achieve high filtration efficiency AFI 80%.

Exquisite design: The elegant shell is of ultra-thin design. The ventilator is designed at a 45-degree angle so as to obtain optimum ventilation, waterproof and dustproof effect. The use of a sealing washer at the rear end of the filter gauze further improves product's water-proof performance.
Performance: The fan dust filter ensures great heat dissipation of the controller and precision electronic parts, resulting in longer service life and reduced failure rate.

Technical Parameters of the Fan Dust Filter

Model	Dimension (mm)	Installation (mm)	Max. wind speed	Collection coefficient	Fireproof class	Protection grade	For fan size (mm)
ZL-803	148.5X148.5	122X122	2.0m /second	88%	VO,UL94	IP54	120X120
ZL-804	204X204	175X175	2.0m /second	88%	VO,UL94	IP54	120X120, 150X150, 150X172, Φ172X51
ZL-805	255X255	223X223	2.0m /second	88%	VO,UL94	IP54	Φ172X51, 150X172, 200X200
ZL-806	320X320	283X283	2.0m /second	88%	VO,UL94	IP54	Φ172X51, 200X200, Φ230X65

As a specialized fan dust filter manufacturer and supplier in China, Salzer also provides fan filter, cam switch, AC axial fan, LED indicator, push button switch, and high temperature wire, among others.

We at Salzer back up our products with a 12 or 13-month warranty, during which substandard products are replaced free of charge. In addition, we can offer customize products according to customers' sample, drawings or other requirements. Free product samples (less than USD30) and wearing parts are also available, upon request. As a result, customers can feel secure in purchasing our axial fan, fan filter, cam switch, isolator switch, push button switch and LED indicator.

Mini order amount USD5,000
