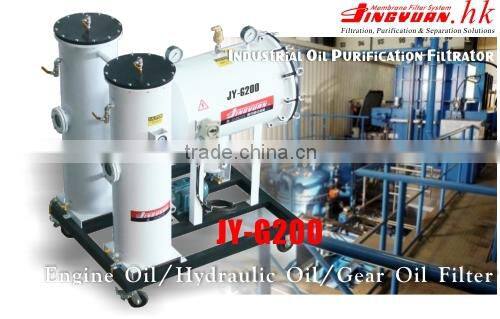

High performance gear oil filtration equipment for gas station with selectivity characteristics

Name: High performance gear oil filtration equipment for gas station with selectivity characteristics
Brand: Jing Yuan
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Dalian Port
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Flow:	32L/min,40L/min,63L/min	Working Pressure:	0.2~0.35Mpa
Place of Origin:	Liaoning, China	Brand Name:	Jing Yuan	Model Number:	JY-G200
Usage:	Other, Industrial Oil	Voltage:	380V	Certification:	ISO9001:2008
After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

High performance gear oil filtration equipment for gas station with selectivity characteristics

Emulsified industrial oil filtration equipment for gas station with selectivity characteristics

Excellent performance:

•New polymer membrane filtration technology

•Selectivity characteristics of polymer membrane is core technology.

•Oil-water separating is easy.

•High precision and deep filtration

•Guarantee the cleanness index of industrial oil

•Improve the efficiency of the engine

•Prolong engine service life

•The cost of filtration is low

Technical Parameters	1	Model Number	JY-G200
	2	Working Pressure	0.2~0.35Mpa
	3	Flow Rate	32L/min,40L/min,63L/min
	4	Filtration Precision	2,5,10,15,25μm
	5	Filtration Material	HDPE,PA
	6	Applicative Oil	Industrial Emulsified Oil
	7	Chemical Resistance	Widely Chemical Compatibility
	8	Power	380V Motor
	9	Coalescence Filter Element	J150-500L
	10	Separation Filter Element	J150-500F
	11	Membrane Filter Element	J30-975H
	12	Service Life of Filter Element	2~3 Year
	13	Warranty for Main Engine	1 Year
Functional Characteristics	1	Large flow diesel purification filter
	2	Polymer 3D mesh structure membrane filter element
	3	High precision filtration
	4	High interception rate
	5	Oil-water separation
	6	High dehydration efficiency
	7	Combining precision filtration and high efficient dehydration
	8	Continuous processing
	9	Clean degree can reach NAS5 grade
	10	Water rate in oil is less than 100ppm
	11	Keeping the physical and chemical character of the oil
	12	Extending oil service life
	13	Low energy consumption, low operation cost
	14	Simple and convenient operation and maintenance
	15	Design life is more than 20 years (except for filter element)
Principle	Selectivity characteristic is to say, the oil molecules will pass and water molecules or impurities will be intercepted, so that the oil and water can be separated.
Principle	It adopts dehydration technology “coalescence separation”and coalescence separation filter targeted at oil special ratio on the basis of different medium surface tension to remove the emulsified water.
Application	Factories, mines, mechanical processing, engineering machinery,power plant and other industries in Asia, South America, Africa and Middle East.
Why do we filter diesel?	90% of the failure problem of diesel engine is due to dirt and moisture in the diesel. After multiple storage and transportation, the purity of the product will decline. So filtering out the pollutants and water is necessary to restore the purity of the product. Clean diesel makes fuel consumption reduces 5-10%, oil-saving effect is obvious, the service life of diesel engines extend 2 ~3 times.

Advantage:

1. Low MOQ: It can meet your promotional business very well.

2. OEM Accepted: We can produce any your design.

3. Good Service: We treat clients as friend.

4. Good Quality: We have strict quality control system .Good reputation in the market.

5. Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).

Company information:

Shenyang Jingyuan Membrane Co.,Ltd. is a professional and innovative membrane filter manufacturer,specialized in clean diesel filter technologh,special membrane production technology,supplying with high performance and large flow of diesel purification filters and devices, industrial oil purification device, high proformance military filtration device. we are particularly skilled in research and application of membrane filtration materials, strict product quality control. we uphold the proprietary technology and creative and offer you qualified products,competitive price and professional services. we sincerely hope to promote and develop the business with our friends on the basis of equality and mutual benefit. Philosophy:Focus on research and development,continously innovate product,control quality in strict,base on equality and mutual benefit.

Packaging & Transportation

1>Durable Plywood Case packaging suitable for long distance ocean/train transportation.

2>Appointed shipping company could be used in shipment.

3>Whole process monitoring insures the safety of goods unitl arrival.

efit.

Our services---Term of Warranty:

We have our own factories and our own international sales team, we could satisfy you with our high quality products ,fast delivery and most important ,competitive price. We adhere to the philosophy of "Quality is the life,the credibility of the first,customer first".

1. One year with spare parts and service.

2. Engineers available to service machinery for overseas.

Tel:0086 18742486458

Skype:ivyqian25

Viber/what's up:0086 18742486458

Application in generating units and electric power plant
