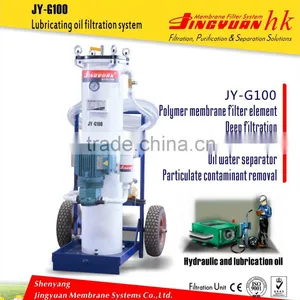

JY-G100 Low Operating Cost Hydraulic Oil Cleaning Machine

Name: JY-G100 Low Operating Cost Hydraulic Oil Cleaning Machine
Brand: Jing Yuan
SKU: 103703241
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Flow:

60L/min

Working Pressure:

0.2~0.35Mpa

Shenyang Jingyuan Membrane Systems Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Flow 60L/min

Working Pressure 0.2~0.35Mpa

Place of Origin Liaoning, China

Brand Name Jing Yuan

Model Number JY-G100

Usage Insulation Oil

Certification ISO9001:2008

After-sales Service Provided Engineers available to service machinery overseas

Excellent performance:

•New polymer membrane filtration technology

•Selectivity characteristics of polymer membrane is core technology.

•Oil-water separating is easy.

•High precision and deep filtration

•Guarantee the cleanness index of industrial oil

•Improve the efficiency of the engine

•Prolong engine service life

•The cost of filtration is low

Technical Parameters	1	Model Number	JY-G100
	2	Working Pressure	0.2~0.35Mpa
	3	Flow Rate	60L/min
	4	Filtration Precision	2,5,10,15,20,30μm
	5	Filtration Material	HDPE,PA
	6	Applicative Oil	High viscosity industrial gear oil
	7	Chemical Resistance	Wide Chemical Compatibility
	8	Type of Filter element	J30-970S
	9	Power	380V Electrical Engine
	10	Dimension	800×750×1350mm
	11	Weight	113KG
	12	Service Life of Filter Element	2~3 Year
	13	Warranty for Main Engine	1 Year
Functional Characteristics	1	Large flow diesel purification filter
	2	Polymer 3D mesh structure membrane filter element
	3	High precision two-level filtration
	4	High interception rate
	5	Oil-water separation
	6	Potable trolley structure
	7	Providing rapid fuel filtration service on site
	8	Circulating filtration for oil storage tank
	9	Made of high quality thick steel plate, anti-corrosion treatment
	10	Minimum mechanical flow resistance
	11	Low pressure difference
	12	Motor gear pump group
	13	Pumping the oil stored in tank into systematic oil tank
	14	Purifying the oil under use
	15	Design life is more than 20 years (except for filter element)
