Salzer CE SUK-6 SUK Screw Earth Terminal Block
- NINGBO SHANGHAI
You May Like
-
Salzer CE Approved SUK-2.5X Terminal Block Din
-
Salzer CE SUK-B2 Nylon Screw Terminal Block Connector
-
Salzer CE SUK-6 SUK Connector Electric Terminal Blocks
-
Salzer CE SUK-6S Terminal Block for 16mm2
-
Salzer CE Approved SUK-2.5X Universal Terminal Block Terminal Block
-
Salzer CE Approved SUK-2.5 Pa66 Fuse Terminal Block Suk-10
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Salzer | |
| Model Number | SUK-6 | Number of Contacts | 11 - 20 | |
| Conductor Size | 11 - 20 AWG | Type | PCB |
Product Description
Specifications
screw earth terminal block1.Thickness: 8.2mm
2.Width: 43mm
3.Height: 46mm

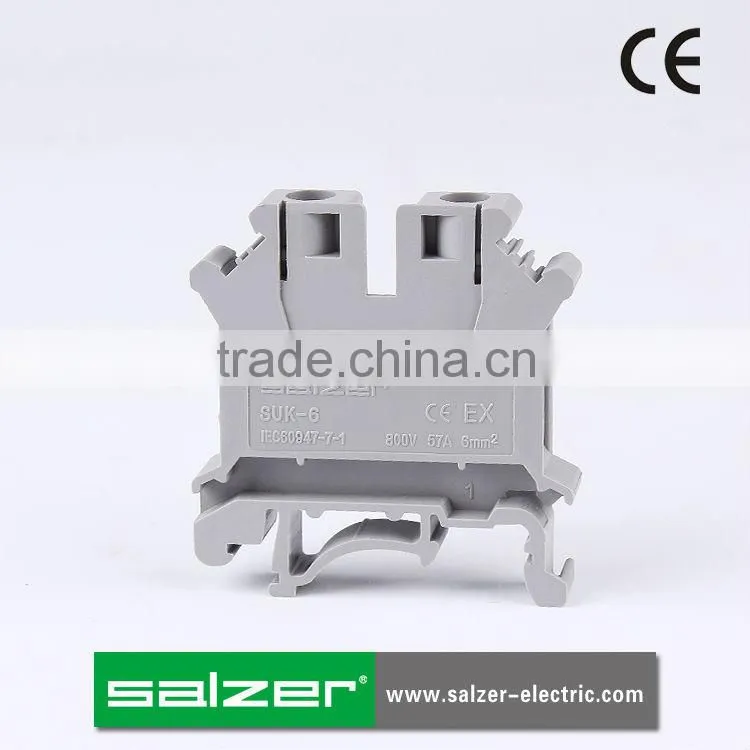

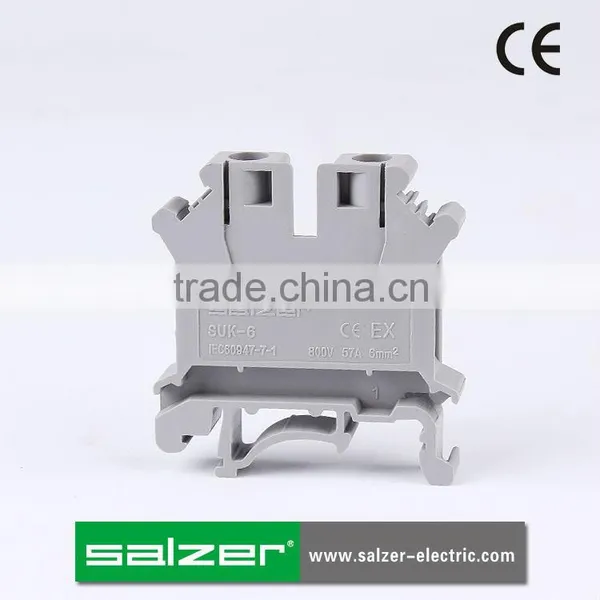

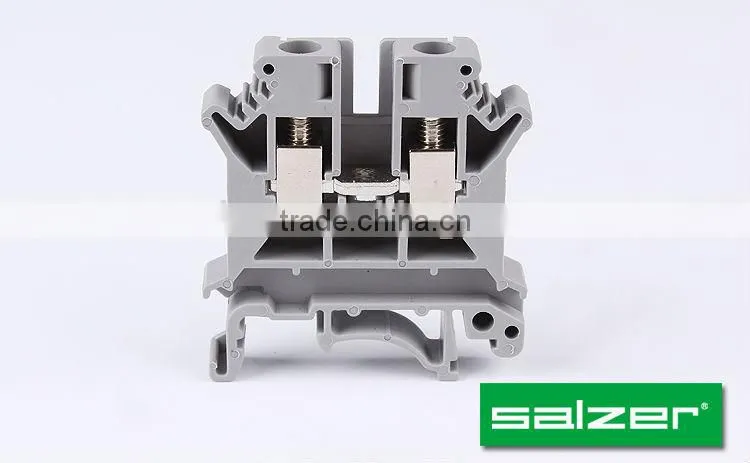

Salzer CE SUK-6 SUK screw earth terminal block
Technical parameters
| T x W x H mm | 8.2 x 43 x 46 | |
| Rated data | Voltage V | 800 |
| Current A | 57 | |
| Section mm2 | 6 | |
| Wire range | Rigid wire mm2 | 0.2-10 |
| Soft wire mm2 | 0.2-6 | |
| Screw type | M4 | |
| Sprain distance Nm | 1.5-1.8 | |
| Line-shelling length mm | 10 | |
