Product Details
| Place of Origin | Zhejiang, China | Brand Name | Salzer | |
| Model Number | SUK-2.5X | Number of Contacts | 11 - 20 | |
| Conductor Size | 11 - 20 AWG | Type | PCB |
Product Description
Specifications
Green/yellow Ground Terminal Connector1.Thickness: 6mm
2.Width: 43mm
3.Height:41mm

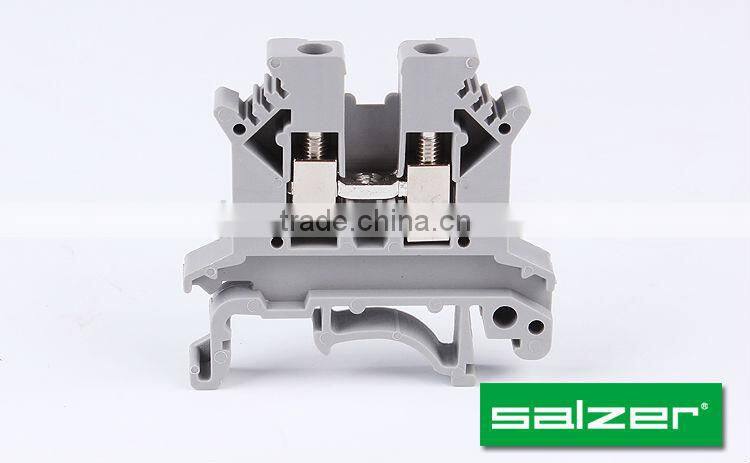

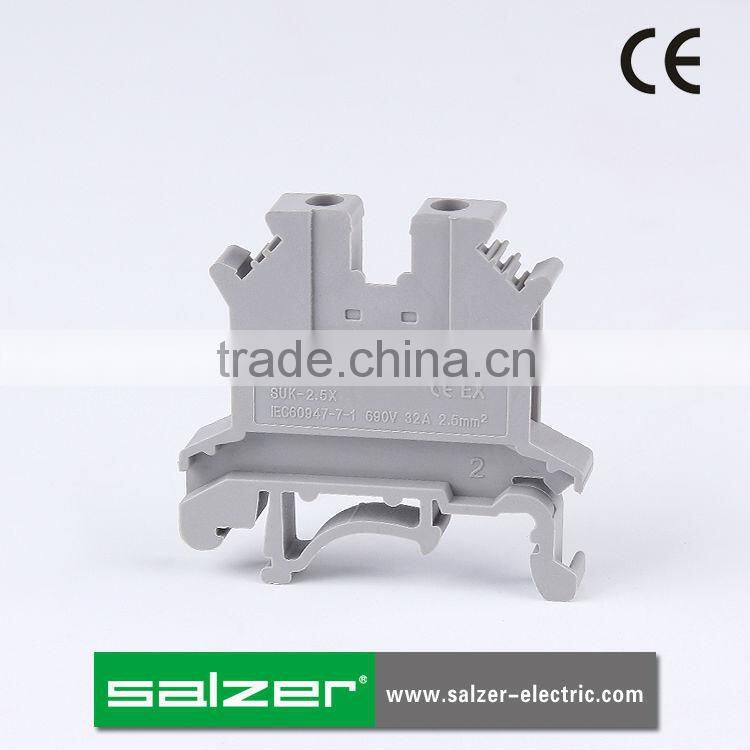

Salzer CE Approved SUK-2.5X Green/yellow Ground Terminal Connector
Technical parameters
| T x W x H mm | 6 x 43 x 41 | |
| Rated data | Voltage V | 800 |
| Current A | 32 | |
| Section mm2 | 2.5 | |
| Wire range | Rigid wire mm2 | 0.2-4 |
| Soft wire mm2 | 0.2-2.5 | |
| Screw type | M3 | |
| Sprain distance Nm | 0.5-0.8 | |
| Line-shelling length mm | 7 | |
