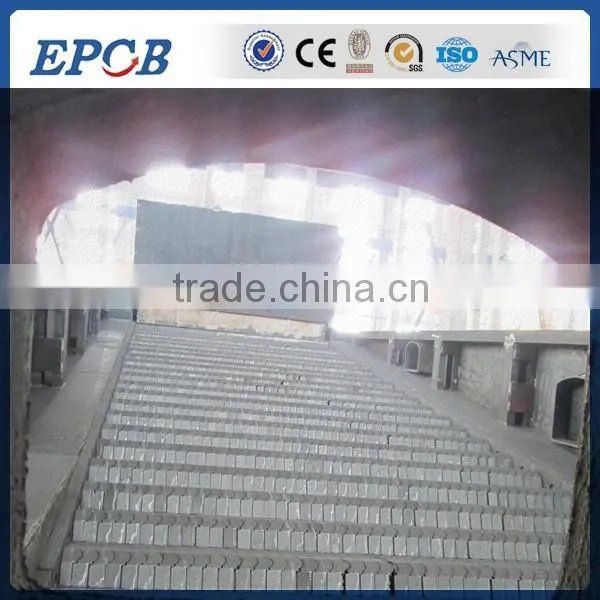

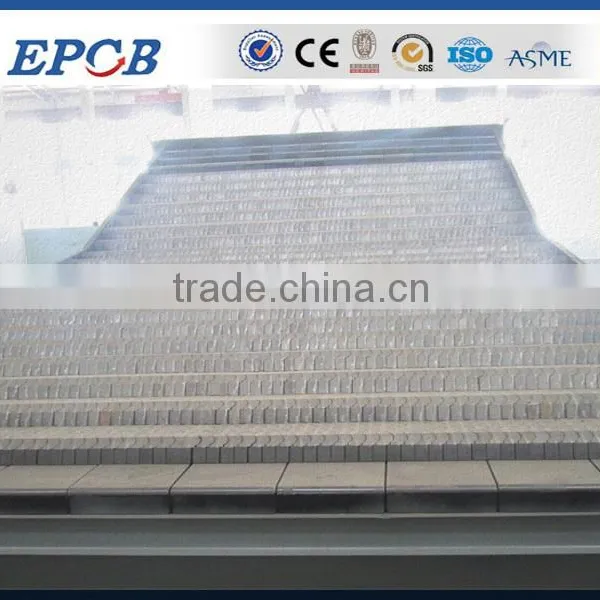

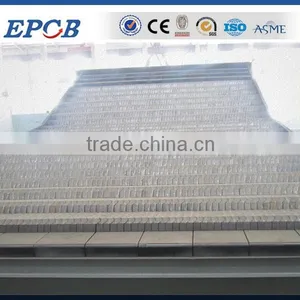

Reciprocating Grate 10 Ton Boiler Step Grate

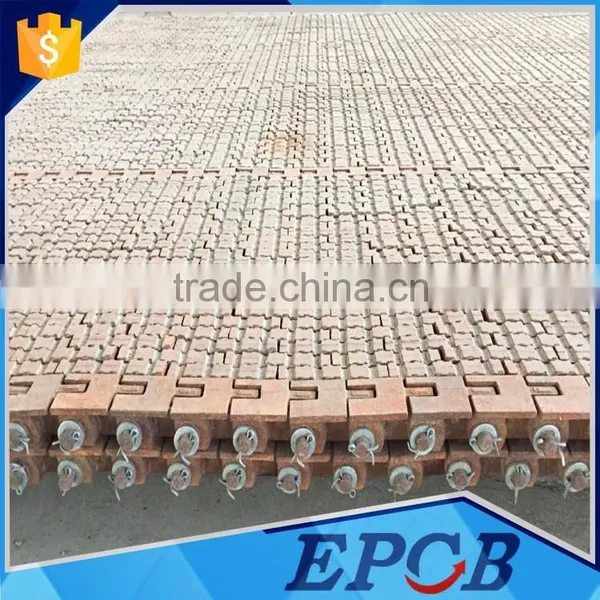

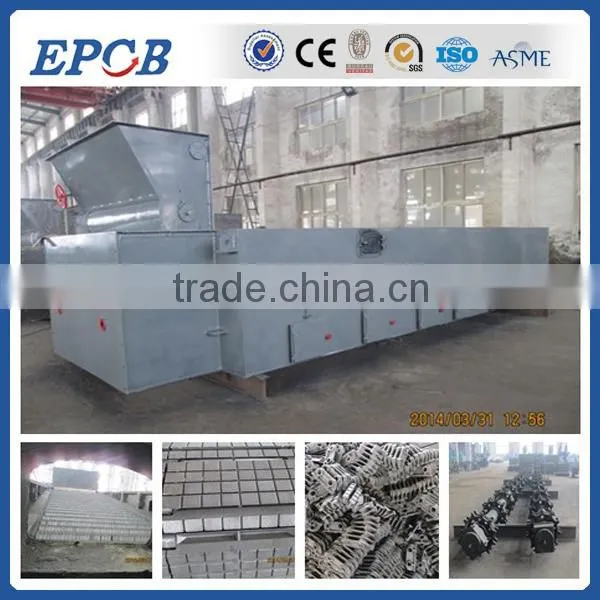

The chain grate is a mechanization equipment applied mostly in steam boiler, hot water boiler and thermal oil boiler. It features reasonable structure, reliable performance and convenient installation, etc.
| Applicable boiler | grate effective area(m2) | grate effective width(mm) | Grate surface height(mm) | Width between two endplates(mm) | Length of shaft out of grate(mm) | Height of shaft out of grate(mm) | Dia. of shaft out of grate(mm |
| 1t/h | 2.16 | 800 | 500 | 890 | 657 | 313 | Φ60 |
| 1t/h | 2.43 | 900 | 540 | 990 | 707 | 353 | Φ60 |
| 2t/h | 3.19 | 1100 | 540 | 1190 | 807 | 353 | Φ60 |
| 2t/h | 3.48 | 1200 | 540 | 1290 | 857 | 353 | Φ60 |
| 4t/h | 50.3 | 1300 | 540 | 1390 | 907 | 353 | Φ60 |
| 4t/h | 5.42 | 1400 | 540 | 1490 | 957 | 353 | Φ60 |
| 4t/h | 5.81 | 1500 | 590 | 1590 | 1007 | 403 | Φ60 |
| 6t/h | 6.63 | 1500 | 590 | 1590 | 1007 | 393 | Φ80 |
| 6t/h | 7.07 | 1600 | 590 | 1690 | 1057 | 393 | Φ80 |
| 6t/h | 7.51 | 1700 | 590 | 1790 | 1107 | 393 | Φ80 |
| 8t/h | 9.9 | 1800 | 690 | 1890 | 451 | Φ80 | |
| 10t/h | 12.6 | 2000 | 797 | 2090 | 555 | Φ80 | |
| 10t/h | 13.23 | 2100 | 797 | 2190 | 555 | Φ80 | |
| 15t/h | 18.82 | 2800 | 797 | 2890 | 555 | Φ100 | |
| 20t/h | 22.6 | 3400 | 797 | 3490 | 555 | Φ120/Φ110 | |
Ps: 1. suitable fuel : coal or biomass ; 2. used in boiler and furnace thermal technology equipment ; 3. The length and width can be change according to user needs. | |||||||
Q: Are you manufacturer?
A: Yes, we are manufacturer. Our factory is in Pingdu Qingdao established in 1993.
Q: Do I get guarantee of products?
A: Yes, every product is 1 year quality warrantee under customer correct using the products.
Q: Do you have any Certificate?
A: Yes. Each of our boiler has China GB certificate. If you need CE ASME or AS, we can help you to get it.
Q: How to buy it?
A: Please contact me by email or online, let me know your factory situation, I will give you some advice which model mostly suitable to you.
Q: What about the delivery?
A: We have shipping agent that can choose the cheapest and fastest delivery. FOB,CIF, C&F or EXW are no problem for us
Q: How can I pay you?
A: T/T, LC is very well used.
Q: What about the production?
A: Produce time is 20~25days for <6Ton boiler, 25~40days for >8Ton boiler.
Q: Could you offer some wear parts?
A: Yes, some chain grate bars, electric equipments in control panel box for example.
Q: What about the maintenance?
A: I will offer you the timely maintenance way after installation of the boiler mainly parts.
|
|
