Specifications
Color Coated Aluminum Coil - Wood Grain Finish

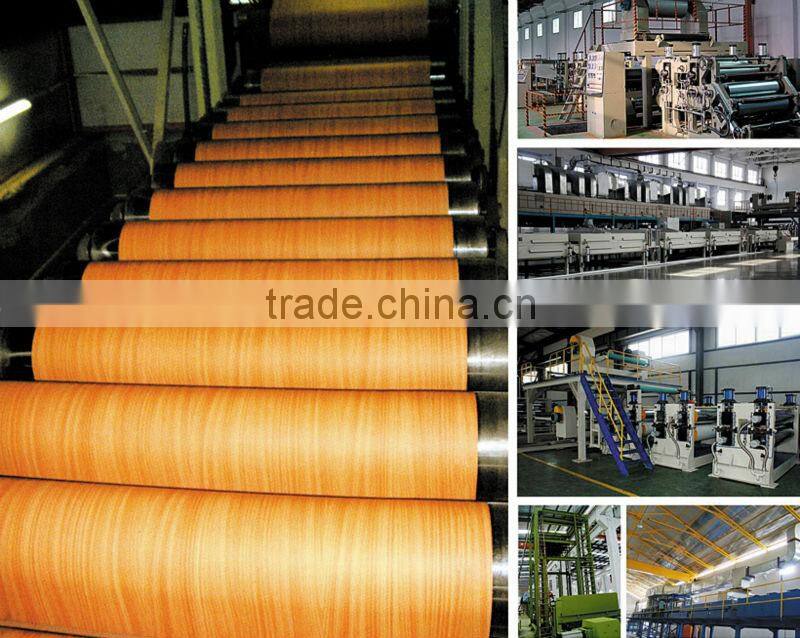

Alumstar Imitative Wood/ Marble Grain Roll coated Aluminum coil and plate, which is combined the roller coating technology with digital printing technology. On one side or two sides of aluminum coil, make the pre-treatment of degreasing, cleaning, conversion film, using high quality polyester or PVDF paints, passing many times coating and baking, through a series of AC urate numerical control positioning, overprint the lifelike effect of imitation wood or marble grain finish.
Roller coated Imitative wood / marble grain Aluminum Coil Features:
Ø Noble Nature Color : Imitative wood / marble grain use hig-grade polyester or fluorocarbon (PVDF) piants on the advanced roller coating production line, use high temperature baking roller coating process technology to finalize the design uder the temperature of 224~255°C.which endow the paints and aluminum with excellent adhesion. The wood / marble grain is the paints original color, it is prolonged invariable;

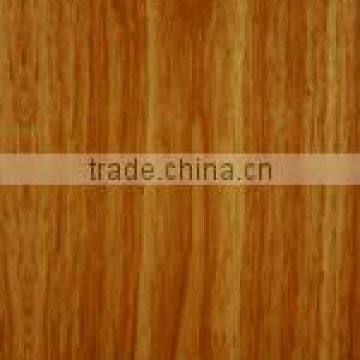

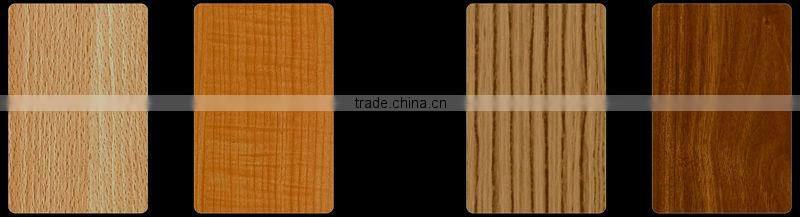

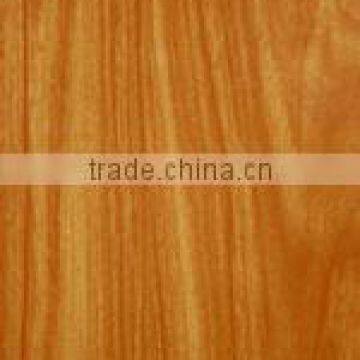

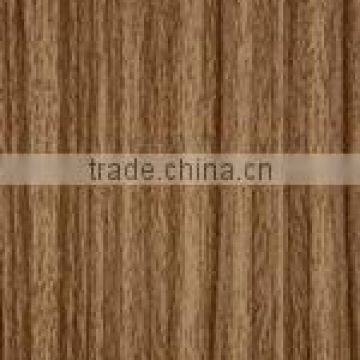

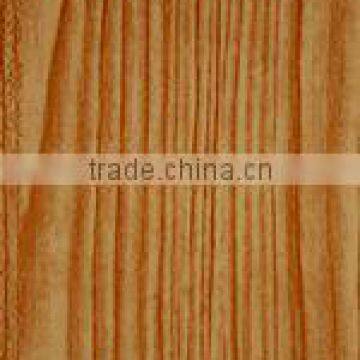

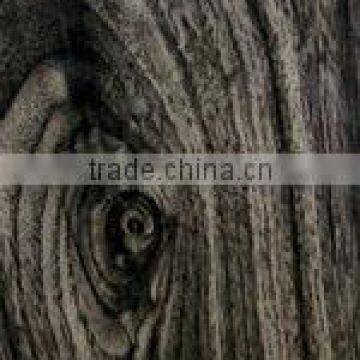

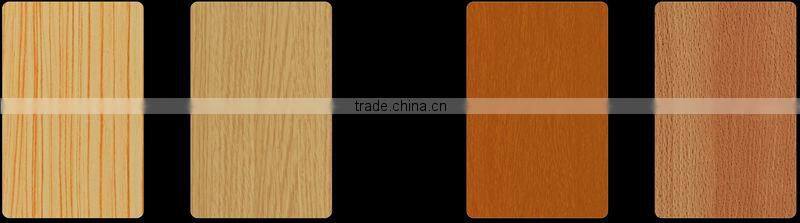

Ø Lifelike Pattern : The wood / marble grain all sample from the real materials. So rich in real wood and marble texture, existing strong material object sense, without dim or false feeling ;
Ø Varied & graceful : Rich & various in color, wide-ranging choice, very rich cultural connotation, fully reflecting “ people-oriented” humanistic idea and concept of decoration ;
Ø Durable : Polyester coating layer thickness is around 20~25μm, PVDF coating layer thickness is 25~30μm, there have one layer of transparent varnish on the surface of wood or marble grain, the coating layer thickness is around 10μm. So it is not easy faded, water resistance, scratch resistance, the weath resistant feature of PVDF coated wood or marble grain Aluminum coil can be over 20 years ;
Ø Full specification: Aluminum thickness from 0.04mm~1.00mm, Aluminum width can reach 1600mm, meet different building decoration panels requirements ;
Spefication of iminative wood grain Aluminum Coil:
Aluminum Thickness |
Aluminum Coil width |
Aluminum Alloy |
Weight |
Inner Diameter |
0.04~1.00mm |
1240~1600mm |
1100 / 3003 |
≤ 2T |
405 / 505mm |
Note: |
The above is standard specification, Customized specification is acceptable. |
|||
Test data of physical property&chemical peformance:
Test Item |
Polyester Coating |
PVDF Coating |
Coating Thickness |
≥20 μm |
≥25 μm |
Gloss Tolerance |
≤5°(Gloss≥70°) ≤10°(Gloss<70°) |
≤5°(Gloss≥70°) ≤10°(Gloss<70°) |
Pencil Hardness |
≥HB |
≥2H |
Coating Flexibility |
≤2T |
≤2T |
Adhesion |
≤ Class 1 |
≤ Class 1 |
Impact Resistance |
50kg·cm Nodepainting&crack |
50kg·cmNodepainting&crack |
Boiling Water Resistance |
2 Hours No change |
2 Hours No change |
Anti-acid |
2% HCL(Mariatic Acid), 24 Hours no change |
2% HCL(Mariatic Acid), 24 Hours no change |
Anti-alkali |
2%NaOH(Sodium hydroxide) 24 Hours no change |
2%NaOH(Sodium hydroxide) 24 Hours no change |
Butanone Resistance |
≥100 times ( 1kg/cm2 ) |
≥100 times ( 1kg/cm2 |
Scour Reistance |
≥10,000 times No Change |
≥10,000 times No Change |
Application:
Ø Pefect aluminum choice of production of Aluminum Composite Panel, Aluminum Honeycomb Panel, Aluminum Ceiling,Sandwich Plate .
Ø Aluminum board for Cabinets, Furniture, Home appliances, Security door, Train compartment, Ship’s internal decoration .
Ø Partition of Office, Negotiation Room, Passenger Ship Room, KTV Amusement Suite,Computer Room,etc .
Ø Clean Bord for CT Room, Sterilizing Room, Operating Room, etc.
Ø Aseptic processing room of Pharmaceutical factory, Food factory.
Ø Clean Room for electronic components factory.
Ø Wood / Marble Grain Shutters.
Ø Interior or Exterior decoration of Star hotel, Grade office building, Office buildings, Upper-class residence, Villa,etc.
