Elevator Parts/Elevator Hollow Guide Rail TK3, TK3A, TK5, TK5A

Name: Elevator Parts/Elevator Hollow Guide Rail TK3, TK3A, TK5, TK5A
Brand: Banda
Price: Negotiable

FOB Price

Negotiable / Ton

20 Tons(Min.Order)

Product Details

Place of Origin:

Jiangsu, China

Brand Name:

Banda

Model Number:

TK3, TK5,TK5A

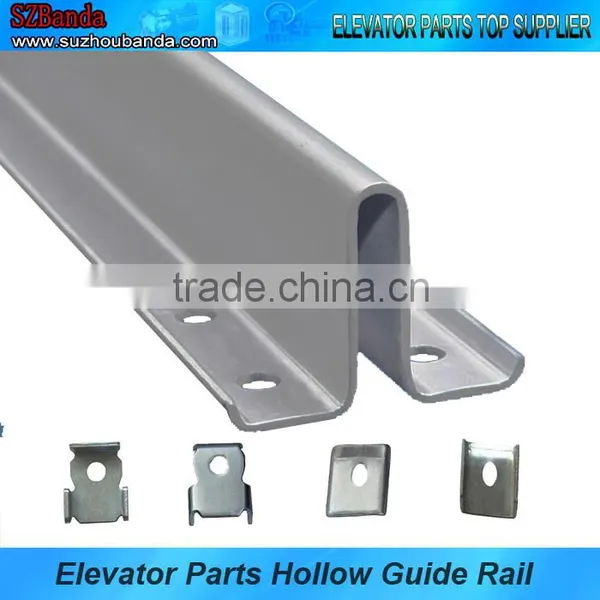

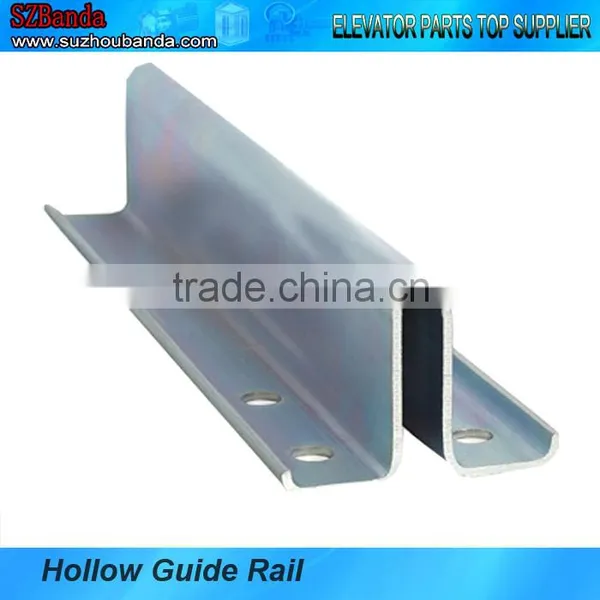

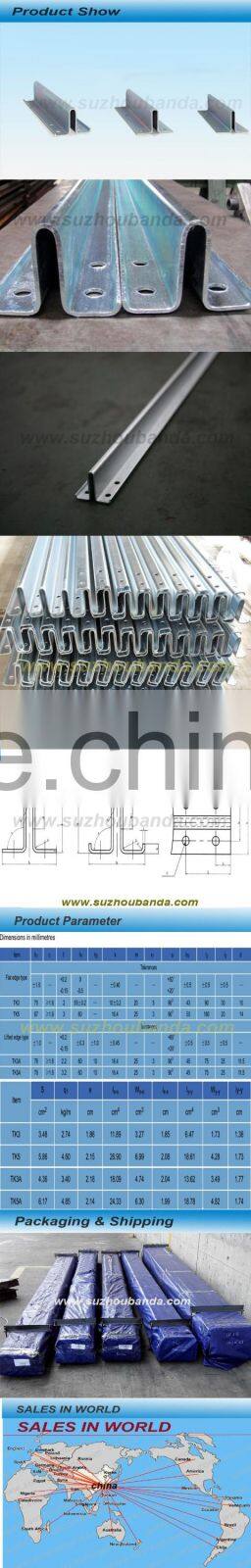

Elevator Hollow Guide Rail

1.Specifications:TK3 TK5 TK5A

2.All rails Meet ISO 7465 standard

3.Material: SS400

Hollow Elevator Guide Rail, Elevator Rail,Elevator Hollow Guide Rail,TK3 TK3A TK5 TK5A Elevator Hollow Guide Rail,TK3 TK3A TK5 TK5A Hollow Rail

Banda has been supplying and exporting various types of elevator hollow guide rails in big volume every year as follows:

1.Specifications: TK3, TK5, TK5A

2.All rails meet ISO 7465 standard.

3.Fishplate, rail clip, bolts and nuts available

4.Standard export package: Tk5 and Tk5A:50pcs/bundle, TK3:100pcs/bunndle

5.Dimensions of Hollow Guide Rail

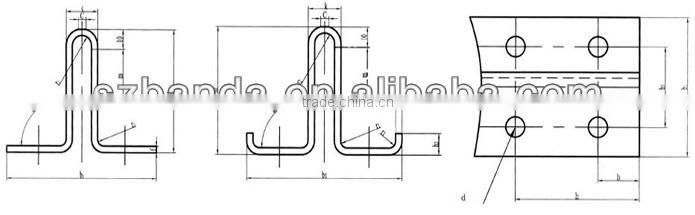

Elevator Hollow Guide Rail Drawing:

Elevator Hollow Guide Rail Specifications:

3Dimension(mm)
Type	b1	c	f	h1	h2	k	m	R1	a	b3	l2	l3	dia
Hollow Guide Rail (Flat Edge)
Tolerance	±1.0		0.2	0		±0.4			+60'	±0.5	±0.5	±0.3
			-0.15	-0.5					+20'
TK3	75		2				20	5	90'	43	90	30	11
TK5	87	≥1.8	3	60		16.4	25	3	90'	50	180	20	14
Hollow Guide Rail (Lifted Edge)
TK5A	78	0	3.2	60		16.4	25	3	90'	45	75	25	11.5

Elevator Guide Rail Packing:

Suzhou Banda Trading Co., Ltd.: Contact nameAnne Tang; Phone86-512-52952070; Address316, Bldg. A8, Changshu Outlets, No. 28, Xueqian Road, Haiyu Town, Changshu
