Elevator Hydraulic Buffer, Lift Oil Buffer (Spring Inside)
- Shanghai port Zhangjiagang port Taicang port
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Banda | |
| Model Number | BDOH-10 |
Product Description
Elevator Oil Buffer
1.Oil Buffer for elevator
2.Various specifications available
3.Passed testing by NETEC
Elevator Buffer, Elevator Oil Buffer, Hydraulic Buffer, Elevator Hydraulic Oil Buffer
Banda has been supplying various specification of elevator oil buffer as per customers’ requirement as follows. Oil buffer are well sealed without any oil leakage, free of maintenance. They are green products which are tested and passed by National Elevator Inspection and testing center of China.
Elevator Oil Buffer Parameters
| Model | Rated Speed | Max.total buffer weight | Min.total buffer weight | S(mm) | L(mm) | aXb(mm) | AXB(mm) | C(mm) |
| BDOH-10 | ≤1.0m/s | 2500kg | 300kg | 100 | 388 | 150x90 | 180x125 | 14 |
| BDOH-16 | ≤1.6m/s | 5300kg | 700kg | 175 | 625 | 210x100 | 270x150 | 18 |
| BDOH-20 | ≤2.0m/s | 5300kg | 1300kg | 290 | 915 | 210x100 | 270x160 | 18 |
| BDOH-65 | ≤0.63m/s | 4600kg | 1000kg | 65 | 350 | 150x100 | 190x160 | 14 |
| BDOH-70 | ≤1.0m/s | 2500kg | 300kg | 70 | 305 | 210x80 | 250x125 | 18 |
| BDOH-80 | ≤1.0m/s | 3000kg | 600kg | 80 | 313 | 150x90 | 200x125 | 14 |
| BDOH-210 | ≤1.75m/s | 3000kg | 780kg | 210 | 600 | 150x90 | 200x125 | 14 |
| BDOH-220 | ≤1.75m/s | 2500kg | 600kg | 225 | 780 | 210x80 | 250x125 | 18 |
| BDOH-275 | ≤2.0m/s | 3500kg | 850kg | 275 | 790 | 210x80 | 250x125 | 14 |
| BDOH-425 | ≤2.5m/s | 3500kg | 860kg | 425 | 1128 | 150x100 | 190x160 |
Elevator Oil Buffer Drawing

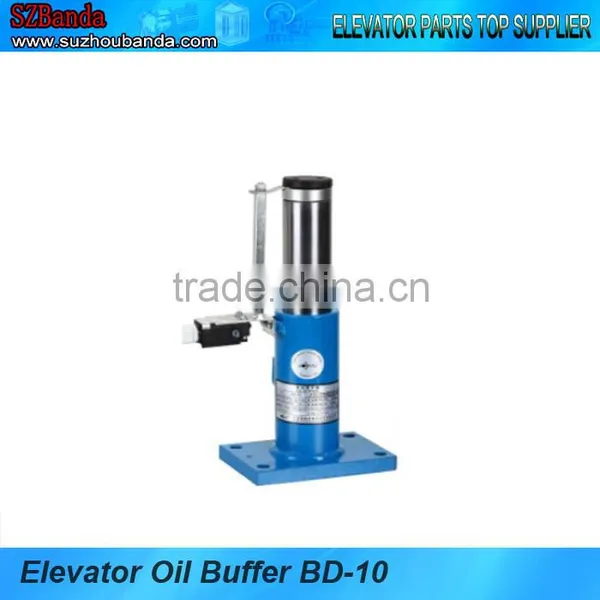

Elevator Oil Buffer Picture:
