Home > Products > Door System > Elevator Light Curtain, Elevator Door Detector
Elevator Light Curtain, Elevator Door Detector
Negotiable
/ Set
10 Sets(Min. Order)
- Shanghai port
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Banda | |
| Model Number | BD-633 |
Product Description
Elevator Infrared Light Curtain, Door Detector, Door Photocell,Door Sensor
1.Main type:620/632, 820/832
2.Others are optional
Safety Light Curtain,Elevator Entrance Door Detector, Lift Safety Photocell, Lift Light Curtain Safety Device,Elevator Door Photocell, Elevator Door Safety Photocell,Elevator Photocell, Elevator Infrared Light Curtain
Elevator Light Curtain, Elevator Photocell, Elevator Door Detector
Banda has been supplying various specifications of elevator safety light curtains as per customers’ requirements.
Elevator Infrade Light Curtain Parameters:
| Type | Number of diodes | Number of Beams | Dimenstion(mm) | Voltage |
| BD-620 | 17 | 96-33Beams | 2000X24.5X9 | AC220V/AC110V/DC24V |
| BD-632 | 32 | 154-94Beams | 2000X24.5X9 | |
| BD-623 | 17 | 96-33Beams | 2000X24.6X16 | |
| BD-633 | 32 | 154-94Beams | 2000X24.6X16 | |
| BD-720 | 17 | 96-33Beams | 2000X24X10 | |
| BD-732 | 32 | 154-94Beams | 2000X24X10 | |
| BD-824 | 17 | 96-33Beams | 2000X18.5X14 | |
| BD-834 | 32 | 154-94Beams | 2000X18.5X14 | |
| BD-938 | 32 | 154-94Beams | 2000X32X7 |
Elevator Infrade Light Curtain including as Follows:
| Item | Name | Quantity |
| 1 | Power supply control box | 1pcs |
| 2 | Purable flexible cable 3.5m | 2pcs |
| 3 | Transmiter | 1pcs |
| 4 | Receiver | 1pcs |
| 5 | User manual | 1copy |
| 6 | Mounting accessories | 1set |

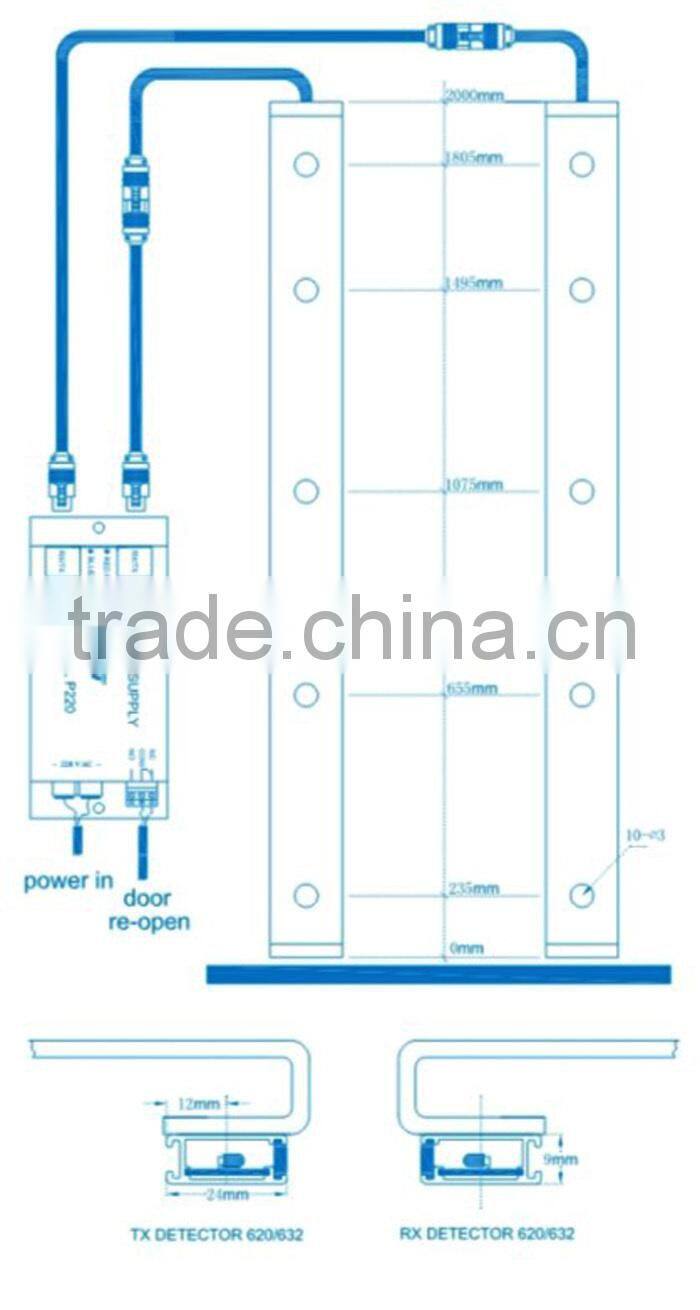

Elevator Infrade Light Curtain Drawing:
Elevator Infrade Light Curtain Packing:
