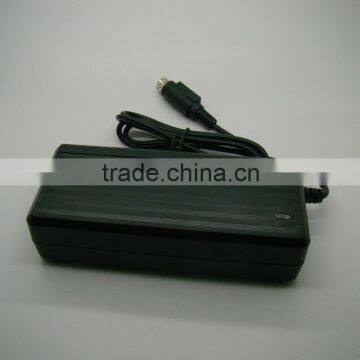

Made in China OEM 24v 1.7a power supply plug for verifone Omni 3750 Lead cable

• AC input voltage ……100-240VAC
• Output ………24V 1.7A
• Input frequency ………47-63Hz
• AC inrush current(max.) …….20A/230V
• Line regulation (full load).......±0.5%
• Peak- to -peak ripple …….<500MV
• Working temperature………….0-35°C@100%,50°C@70% load
• Setup rise hold up time………100ms,50ms,20ms@240VAC input
• Strong made totally compatible part
• Over voltage protection………115%-135% rated output voltage
• Withstand voltage………I/P-O/P 3Kvac,1 minute
• Over load protection ………115%-135%fold back current limiting, Auto-recovery
• Input Condition ……… 100 to 240VAC 50/60 Hz 1A Max
• Input Rated Voltage ……… 100 to 240VAC
• Input Voltage Range ……… 90 to 264VAC
• Input Rated Frequency ………50/60Hz
• Input Frequency Range ……… 47Hz to 63Hz
• Inrush Current ……… 60A Max
• No Load Power Consumption ……… within 0.3W
• Efficiency ……… 80% Min
• Line Regulation……… ± 1%
• Load Regulation ……… ± 5%
• Over Shoot ………10% Max
• Ripple And Noise……1% Max
• Rising Time ……… 20ms Max At 115Vac
• Output Hold up Time ……… 8ms Min At 230Vac
• Protection ………  OCP OVP SCP OPP
• Dielectric Withstand Voltage ……… 3.75KV 5mA 60s
• Leakage Current ……… 0.25 mA At 230Vac

1.Power adapter factory for the customisation made.We can meet the big clients's requirements.

2. Wide Range: AC/DC Wall Chargers and adapters,Desktop Adapters, Travel Chargers,LED Power Supply,Printer charger,Cell Phone charger,CCTV Power supply,TV/Monitor Adapter and so on.

3.Stock for the popular power adapters.We can offer the samll order and defferent types service. Fast delivery.
4.Many ebay and amazon sellers choose our products.

5.Test before shipping out.
6.One year warranty.
7.Free exchange:If any problems happen and you can offer the evidence that it is our products issue we will resend you the new products or refund you the money.There is no requirement of  return shipping.
