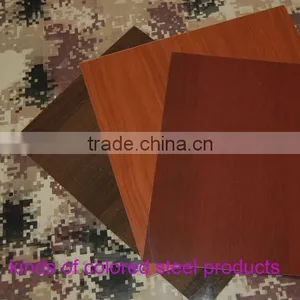

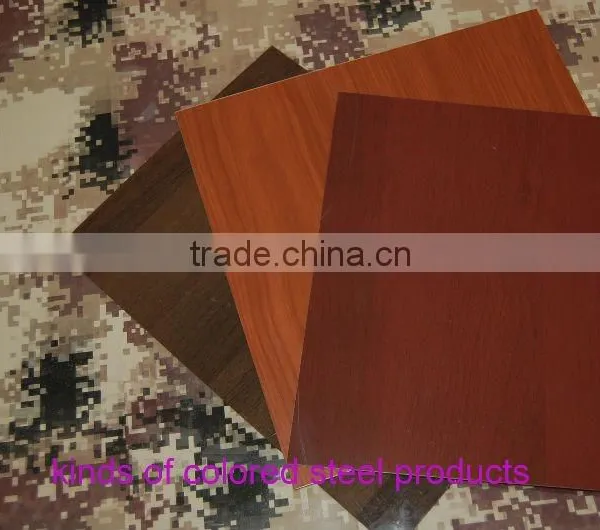

Wooden Grain Steel Sheet

Specifications

PPGI Specification:
1. Standard: SGCC, JIS, G3312, GB/T1275, EN
2. Base material: hot dipped galvanized steel coil.
3. Paint coating :normal polyester coating, fluorocarbon coating and silicon modified coating.
4. Thickness:0.18mm-0.8mm.
5. Sizewidth:800mm/914mm/1220mm/1250mm/1219mm(usual:1000mm-1200mm).

6. Zinc coat:80g-180g
7. Color: all RAL colors to your demands.
8. ID and weight: 508mm-610mm.  3-12ton
9. Price term: CIF, CFR, FOB Qingtao Port.
10. Payment: Irrevocable L/C at sight, T/T.
Your detailed enquiry will be highly appreciated, We are looking forward to your reply.

Product Description

(Prepainted galvanized steel coil)Paint system consists of a steel substrate to which a super polyester prepaintedfinish system is applied. The system is designed to provide protection against corrosion in areas where severe to very severe environmental conditions are experienced.  Prepainted steel product is suitable for a wide range of rollformed roof and wall claddings, rainwater accessories and general building products.

Composition

 Following pretreatment, a corrosion inhibitive primer, and top coat is applied to the outer surface and a corrosion inhibitive primer and a backer to the reverse side. These coatings are oven cured to provide colour and corrosion performance.
