Help CenterGalvanized Roofing Sheet
Related Products
Specifications
gi sheet/galvanized steel sheetprice galvanized roofing tile
building materials
high quality best price
various application
gi sheet / galvanized steel sheet
price galvanized roofing tile
building materials
high quality best price
various application prepainted steel coil
materials of roofing sheet
REMARKS:
gi sheet / galvanized steel sheet is a form of galvanization. It is the process of coating iron, steel, or aluminum with a thin zinc layer, by passing the metal through a molten bath of zinc at a temperature of around 860 °F (460 °C). When exposed to the atmosphere, the pure zinc (Zn) reacts with oxygen (O2) to form zinc oxide (ZnO), which further reacts with carbon dioxide (CO2) to form zinc carbonate (ZnCO3), a usually dull grey, fairly strong material that stops further corrosion in many circumstances, protecting the steel below from the elements.
gi sheet / galvanized steel sheet is widely used in applications where rust resistance is needed, and can be identified by the crystallization patterning on the surface (often called a “spangle”).
gi sheet / galvanized steel sheet has gone through a chemical process to keep it from corroding. The steel gets coated in layers of zinc because rust won't attack this protective metal. For countless outdoor, marine, or industrial applications, galvanized steel is an essential fabrication component.
Corporation Introduction
Shandong Longfa is a logistics, new building materials, galvanized steel processing, plastics machinery research and development as one group of the large-scale private enterprises.

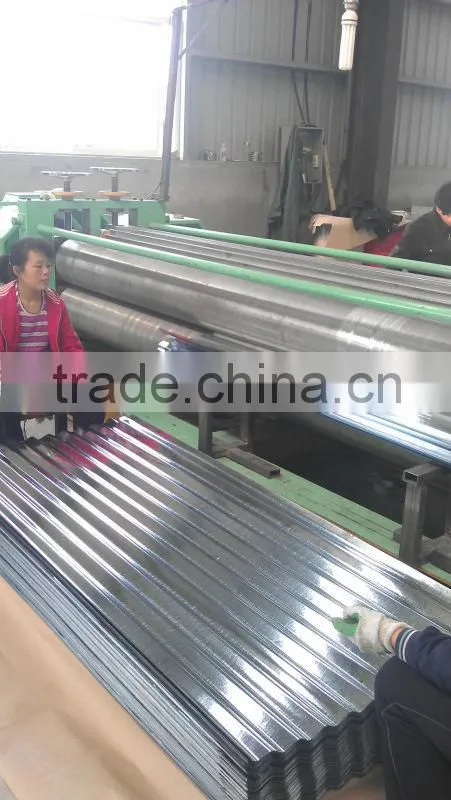

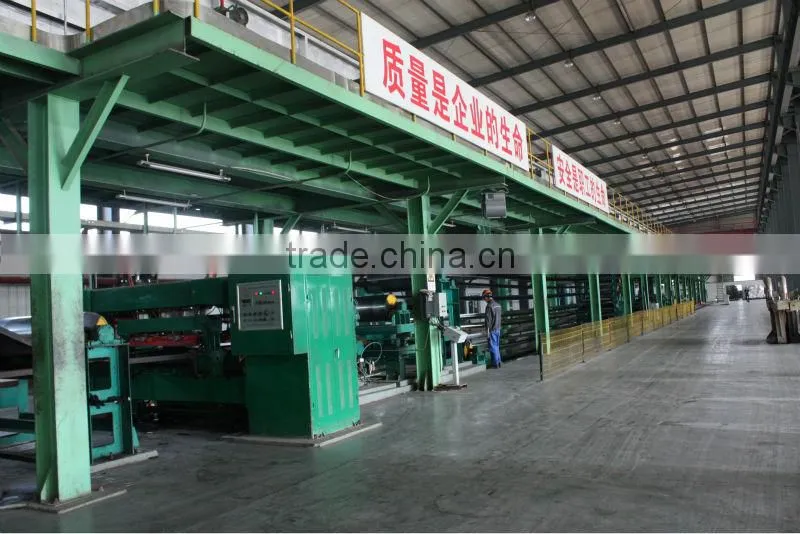

Work Shop and Production Lines
It has two production lines of PPGI/PPGL, two production line of galvanized steel (GI) ,different kinds lines of roofing sheet and more than six lines of Sandwich Board.etc
Productions
We mainly manufacture all kinds of building materials, such as pre-painted steel coils (PPGI/PPGL), hot dipped galvanized steel coils (GI), galvalume steel coil (GL), roofing sheet, composite boards, galvanized corrugated sheet etc.
1) Available Designation
| Quality | Q/BQB 440-2003 | JIS G3312-1994 | EN 10326-2004 | ASTM A653-02a |
| EN 10327-2004 | (BASE PLATE) | |||
| (BASE PLATE) | ||||
| Commercial Steel | TDC51D | CGCC | DX51D+Z/AZ | CS Type A/B/C |
| Forming Steel | (TSt01,TSt02,TSt03) | CGCD1 | FS Type A, Type B | |
| Drawing | TDC52D /TDC53D | - | DX52D+Z/AZ | DDS TYPE A/C |
| Steel | DX53D+Z/AZ | |||
| Structural | TS280GD(TStE28) | CGC400 | S280D+Z/AZ | SS275 |
| Steel | TS350GD(TStE34) | CGC440 | S350D+Z/AZ | SS340 Class1 |
2) Available Size:
| Manufacturer | Thickness | Width | Length of plate | Inner diameter of coil |
| SHANDONG LONGFA STEEL PLATE CO., LTD | 0.135~1.2mm | 800/914/1000/1200/1219/1250mm | 1000-6000mm | 508mm/610mm |
3) Coated Mass:
| Base plate | Available Coated Mass(g/m^2) |
| Galvanized Steel | 30,50,60,80, 100, 120, 160, 180,200 |
| Galvalume Steel | 30,50, 60, 80,100,120 |
4) Available Painting:
| Category of Painting | Item | Code | |
| Polyester | PE | ||
| High-durability polyester | HDP | ||
| Silicon modified polyesters | SMP | ||
| Polyvinylidene fluoride | PVDF | ||
| Easy-Cleaning | — | ||
| Painting Thickness | Top side: 20+5microns; | ||
| Bottom side: 5~7microns. | |||
| Color System | Produce according to RAL Color System or as per buyer’s color sample. | ||
| Painting structure | Top surface | Bottom surface | |
| Primer coating | No coating | 1/0 | |
| Primer coating | Primer coating | 1/1 | |
| Primer coating + Finish coating | No coating | 2/0 | |
| Primer coating + Finish coating | Primer coating or single back coating | 2/1 | |
| Primer coating + Finish coating | Primer coating + Finish back coating | 2/2 | |
Note: Protect film available
5) Application
| Construction | Outside | Workshop, agricultural warehouse, residential precast unit, corrugated roof, roller shutter door, rainwater drainage pipe, retailer booth |
| Inside | Door, doorcase, light steel roof structure, folding screen, elevator, stairway, vent gutter | |
| Electrical appliance | Refrigerator, washer, switch cabinet, instrument cabinet, air conditioning, micro-wave oven, bread maker | |
| Furniture | Central heating slice, lampshade, chifforobe, desk, bed, locker, bookshelf | |
| Carrying trade | Exterior decoration of auto and train, clapboard, container, isolation lairage, isolation board | |
| Others | Writing panel, garbage can, billboard, timekeeper, typewriter, instrument panel, weight sensor, photographic equipment | |
Packing
Each bare coil to be securely tied with two bands through the eye of coil (or not) and one circumferential, the contact points of these bands on the coil edge to be protect with edge protectors. Coil then to be properly wrapped with water proof /resistant paper, it then to be properly and completely metal wrapped. And each packed coil to be properly wrapped with band, three-six such band through the eye of coil at about equal distance, and two-four such bands securely tied around belly of coil at about equal distance.
Certificate
Our company operates to the stringent ISO 9001 and ISO 14001 quality standards and is committed to being a first-class coated steelmaker.
With the sophisticated equipment, you can get the best quality with most competitive price here.
Welcome to contact me at any time for any possible questions. I'm always on line at your service.
Best regards & thanks
Shmily Song
