30kw Large Air Output Fan Heaters
- Ningbo
- T/T
You May Like
Product Details
| Type | Other, fan heater | Power Source | Electric | |
| Place of Origin | Zhejiang, China | Brand Name | Kinlux | |
| Model Number | BG-C30/3 | Dimension(L*W*H) | 645x565x860mm | |
| Weight | 32kgs | Voltage | 400V 50hz | |
| Power(W) | 30kw | Certification | CE | |
| Warranty | 1 year |
Product Description
BG-C30/3
Features :
| Model | BG-C3/1-13 | BG-C5/3-13 | BG-C9/3 | BG-C15/3 | BG-C30/3 |
| Electric supply | 220-240V ~50Hz | 380-400V ~50Hz | 380-400V ~50Hz | 380-400V ~50Hz | 380-400V ~50Hz |
| Heating setting | 25/1500/3000W | 30/2500/5000W | 52/4500/9000W | 110/5000/10000/15000W | 70/15000/30000W |
| Capacity | 3KW | 5KW | 9KW | 15KW | 30KW |
| 10250 Btu/h | 17060 Btu/h | 30706 Btu/h | 51177 Btu/h | 102354 Btu/h | |
| 2579.4 Kcal/h | 4299 Kcal/h | 7738.2 Kcal/h | 12897 Kcal/h | 25794 Kcal/h | |
| Air Output | 360 m³/h | 388 m³/h | 980 m³/h | 1100 m³/h | 1911 m³/h |
| Outlet temperature | 77℃ | 98℃ | 107 ℃ | 124℃ | 156℃ |
| Suggestion using area | 60 m³ | 100 m³ | 180 m³ | 300 m³ | 600 m³ |
| Packing | 1 pcs/ctn | 1 pcs/ctn | 1 pcs/ctn | 1 pcs/ctn | 1 pcs/ctn |
| Product Meast | 315x330x400mm | 315x330x400mm | 350x405x460mm | 495x520x860mm | 645x565x860mm |
| Packing Meast | 335x335x415mm | 335x335x415mm | 415x370x470mm | 505x410x530mm | 660x450x590mm |
| N.W. | 6.6 kgs | 7.5 kgs | 11.9 kgs | 22 kgs | 32 kgs |
| G.W. | 7.5 kgs | 8.3 kgs | 13 kgs | 23.5 kgs | 34 kgs |
| Qty/20' | 610 pcs | 600 pcs | 388 pcs | 255 pcs | 158 pcs |
| Qty/40' | 1245 pcs | 1245 pcs | 804 pcs | 529 pcs | 330 pcs |
| Qty/40'HQ | 1460 pcs | 1460 pcs | 942 pcs | 620 pcs | 388 pcs |

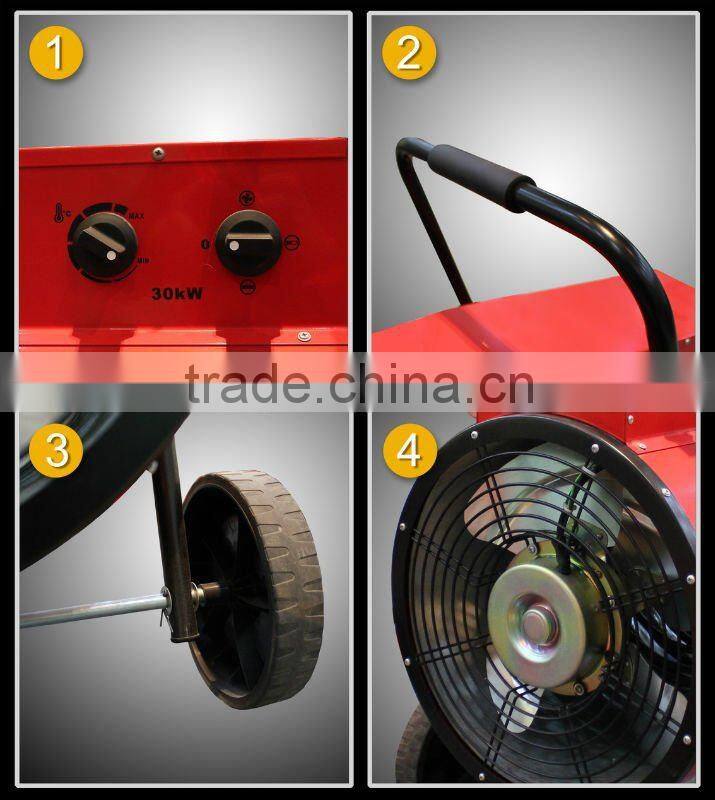

Details:
1. Heating element : Stainless steel
2. Adjustable thermostat control
3. Overheat protection
4. With fan
5. Free standing & portable type
6. No fumes, no odours, no humidity
7. Strong and long lasting construction
8. With time-delay
9. Can adjuste the angle about 30°according to using surrounding and to get more large air output.
10. 5-30KW with relay
11. Waterproof class IPX4
Certificates:
CE / GS / LVD / EMC / RoHS approved .
Where to use
* Construction Sites * Factories * Barns
* Agriculture * Sports Events * Utility/Farm Buildings
Introduction:
* Company history: established in 1999. professional manufacturer specialized in heaters.
* Industrial fan heater, industrial diesel heater, gas forced heater,radiator heater,quartz heater etc.
*Main markets: Germany, Denmark, Norway, Sweden, Finland, UK, France,Russia, Australia, America and Asia etc.
* Employees: 320-400
* Production capacity: 6+ lines , 800,000 pcs/ year,
* Quality management system: ISO 9001
Quality control system:
IQC (Incoming Quality Control)
IPQC (In Process Quality Control)
PQC (Process Quality Control)
FQC (Final Quality Control)
OQC (Out-going Quality Control)
