Help CenterPPGI of Metal Building Materials
Related Products
Specifications
PPGI of Metal Building 1) 5 year's experience 2) Advanced coating equipment 3) Competitive pricePPGI of Metal Building Materials
Specification( ppgi coils )
| Capacity | about 6,000 tons per month for coil product |
| Standard | JIS G 3312, ASTM A755M, GB/T 12754, EN 10143 |
| Grade | SGCC/CGCC/SGCH/SGLCC/DX51D |
| Thickness | 0.13mm-0.65mm |
| Width | 600mm-1250mm |
| Zinc coating weight | 45-275g/m2 |
| Painting Thickness | top side 25+/-5microns, bottom side 7+/-2microns |
| Color | produce according to Ral color system or as per buy's sample |
| Surface treatment | chromate, oil/unoil, bright finish, anti-finger print |
Advantages( ppgi coils )
1) Excellent corrosion resistance: The zinc layer provides a good protection of Pre-painted Galvanizeed Steel Sheet.
2) High heat resistance: The reflective surface of the material aids in efficiently reflecting the sunlight away and in turn reducing the amount of heat transmitted. The thermal reflectivity converts into energy savings.
3) Aesthetics: Pre-Painted Galvanized steel sheet is available in plethora of patterns and multiple sizes as per the requirements that given by our customers.
4) Versatility: can be used in the various areas.
Applications( ppgi coils )
1) Buildings and constructions: roofing, ceilings, gutters, venting lines, indoor decorations, window frames, etc.
2) Electrical appliances: computer shells, washing machines, refrigerators, dehumidifiers, video recorders, water heaters, etc.
3) Agricultural equipments: troughs, feeding tools, agricultural driers, irrigation channels, etc.
4) Vehicle parts: back-seat plates of buses and trucks, conveying systems, oil tanks, etc

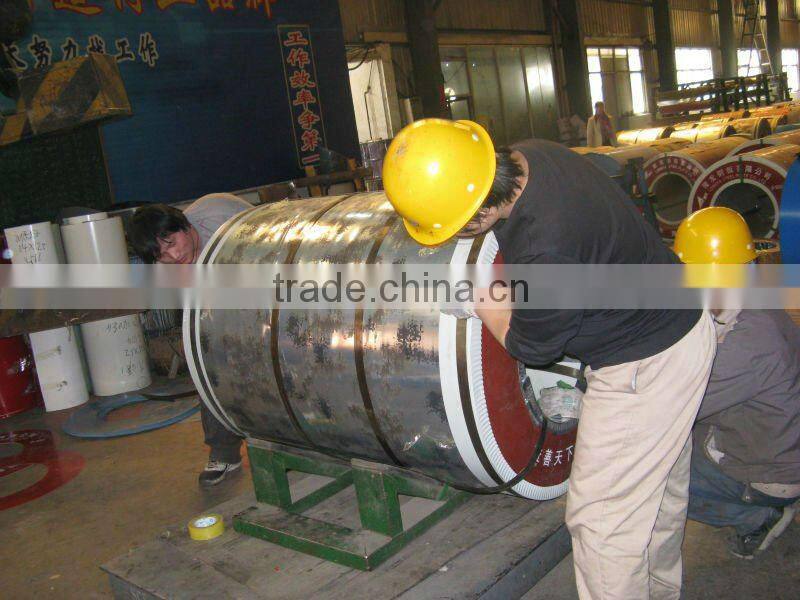

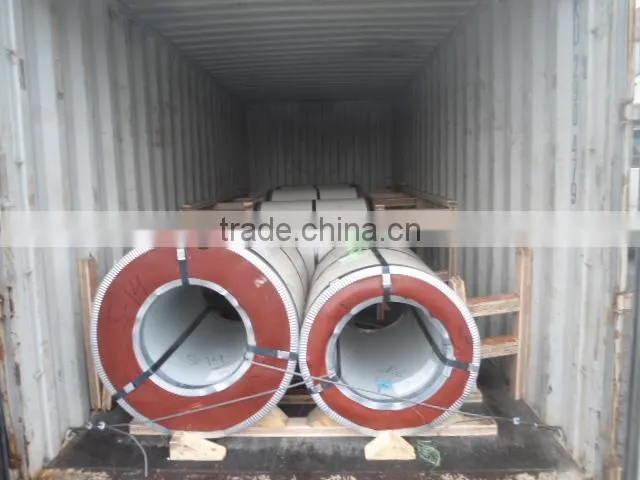

Package( ppgi coils )
Standard packing to export:
1) 4 eye bands and 4 circumferential bands in steel
2) Galvanized metal fluted rings on inner and outer edges
3) Galvanized metal & waterproof paper wall protection disk
4) Galvanized metal & waterproof paper around circumference
