RB03 6 axis robot
- 20 Set / Sets per Month
- dalian
- T/T
Product Details
Condition: | New | Type: | Other | CNC or Not: | CNC |
Automatic Grade: | Automatic | Place of Origin: | Liaoning, China | Brand Name: | R&C |
Model Number: | RB03 | Voltage: | 220V/380V | Power(W): | 3KW |
Weight: | 125kg | Certification: | ISO9001,CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
6 axis robotISO9001 Quality System
RB03 RB03 6 axis robot
1. Machine Tool Introduction:
Automatic Welding
Automatic casting
Ultra-bearing super bearing turntable 70kg
Feeding the fastest speed one second place
Actual production operating speed 2M / sec
2. The main technical parameters (standard):
Item | RB03 | RB08 | RB20 | RB50 | |||||
Degree of Freedom | 6 | 6 | 6 | 6 | |||||
Drive System | AC servo motor | AC servo motor | AC servo motor | AC servo motor | |||||
Maximum Load Capacity | +0.05mm | +0.05mm | +0.05mm | +0.05mm | |||||
Movement Range | J1 Axis | +170° | +170° | +170° | +170° | ||||
J2 Axis | +150° ~- 60° | +120° ~- 85° | +133°~- 95° | +130 °~- 90° | |||||
J3 Axis | +75° ~- 170° | +85°~-170° | +76° ~- 166° | +280° ~- 160° | |||||
J4Axis | +190° | +180° | +180° | +360° | |||||
J5Axis | +125° | +135° | +133° | +120° | |||||
J6Axis | +360° | +360° | +360° | +360° | |||||
Rated Speed | J1 Axis | 2.62rad/s, 150° /s | 2.09rad/s, 120° /s | 1.90rad/s, 109° /s | 1.23rad/s, 70° /s | ||||
J2Axis | 2.62rad/s, 150° /s | 2.09rad/s, 120° /s | 1.30rad/s, 74.5° /s | 1.12rad/s, 64° /s | |||||
J3xis | 3.14rad/s, 180° /s | 2.09rad/s, 120° /s | 1.74rad/s, 100° /s | 0.90rad/s, 51° /s | |||||
J4Axis | 4.71rad/s 270° /s | 3.93rad/s, 225° /s | 3.93rad/s, 225° /s | 2.51rad/s, 144° /s | |||||
J5Axis | 4.71rad/s 270° /s | 2.53rad/s, 145° /s | 2.56rad/s, 147° /s | 2.92rad/s, 167° /s | |||||
| 4.71rad/s 270° /s | 5.24rad/s, 300° /s | 5.16rad/s, 296° /s | 5.10rad/s, 292° /s | |||||
| J6Axis |
| |||||||
Environmental Condition | Temperature | 0--45°C | |||||||
Humidity | 20~80% 20~80%(no condensation) | ||||||||
|
|
| |||||||
Other |
| ||||||||
Installation Posture | Installed on floor | ||||||||
Robot Body weight | 125kg | ||||||||
Electric Cabinet weight
| 75kg | 180kg | 245kg | 600kg |

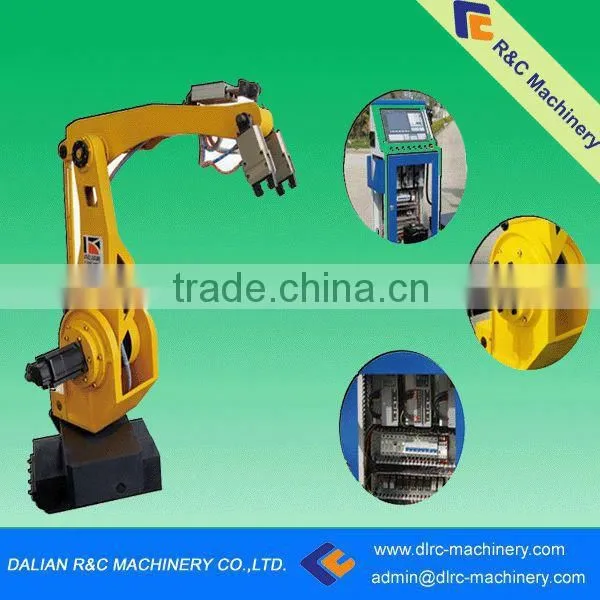

3.Our Product Photo:
4. Other robot you may interest in:
5.Company Introduction:
We are the big machine manufacturer specializing in producing heavy duty machine tools, it has five factories in China which mainly produce Vertical Lathe, Boring & Milling Machine, Heavy-duty Horizontal Lathe, both conventional and CNC types.
We have a group of professional engineers in charge of technology, manufacturing, installing and testing, so we can guarantee that our machines will put on good performance based on high quality. We can provide customers with full service and technical consultation upon different requests in 24 hours. R&C Machinery would like to offer its best machines with best solution, and build itself as the bridge and window for both overseas and domestic enterprises and customers.
6. Main Export Market:
Canada, the U.S.A., Italy, France, Brazil, Bolivia, Chile, Russia, Romania, Saudi Arabia, Syria, Jordan, the U.A.E., Indonesia, Singapore, Thailand, India, Pakistan, South Africa, Egypt, Nigeria, Kenya and so on.
7. Our Work Shop:
8. With Customers:
9. Why Choose Us:
10. After-sales Service and Commitment to Quality:
a. The date of final acceptance of the machine, the vendor of the product free of charge three packs a year (the buyer causes damage will be charged the cost of).
b. Machine fails, the user information of the seller can accurately determine the cause of the malfunction and treatment measures, given immediately reply sent to the scene to deal with such as could not determine the cause, within 48 hours, to solve the failure so far.
