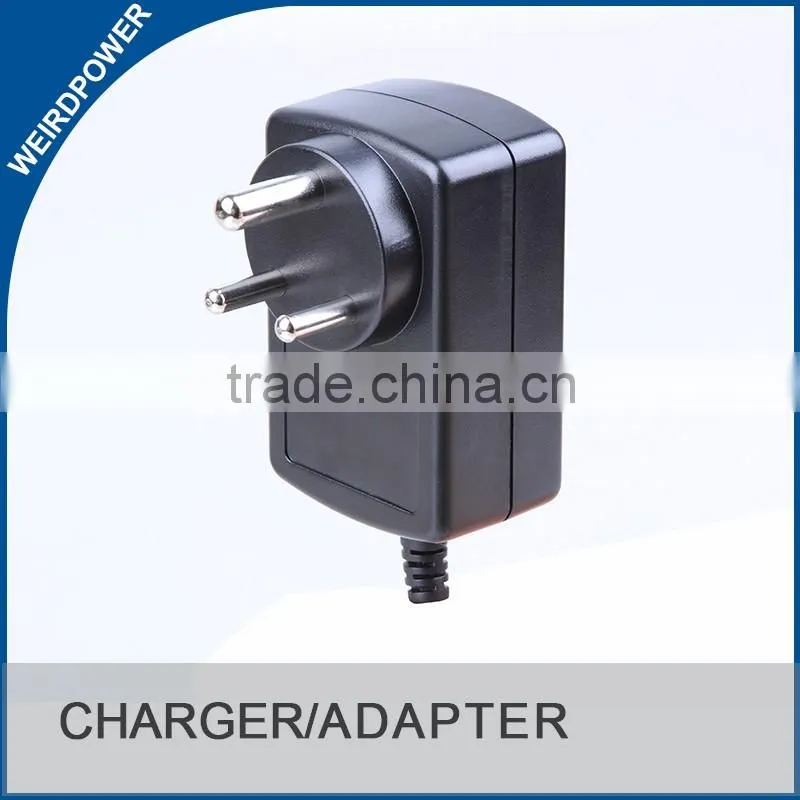

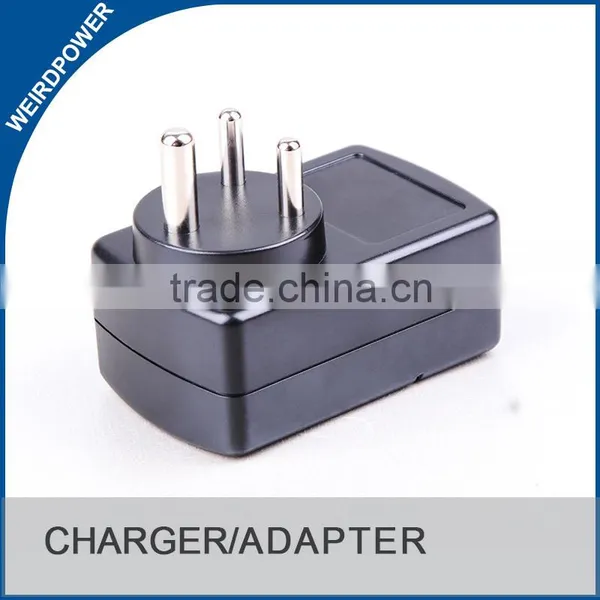

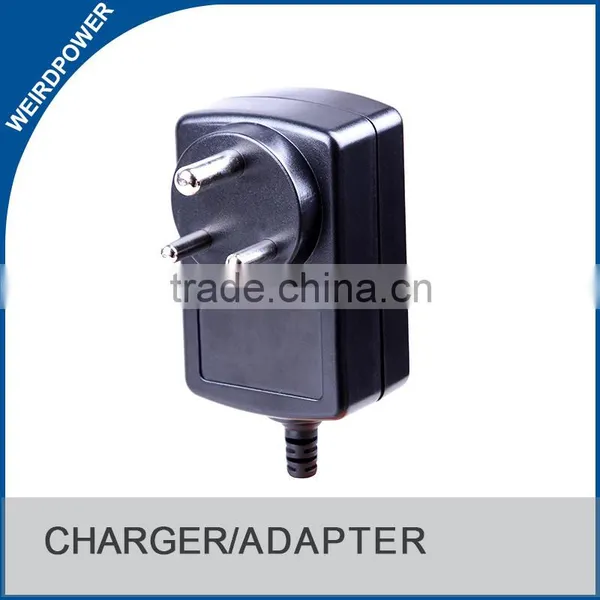

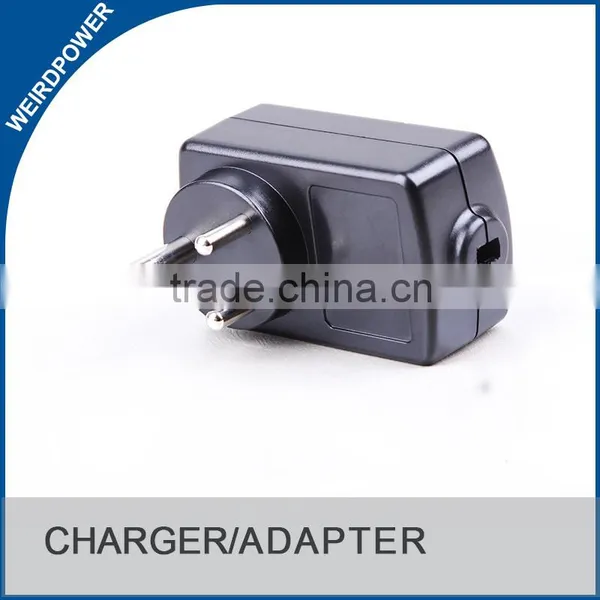

Hot Sell 12V2A India Charger Adapter BIS Certificate POS Machine
1. Input Characteristics
1.1. Input Voltage & Frequency
The range of input voltage is from90Vac to 264Vac single phase.
|
Minimum |
Nominal |
Maximum |
Input Voltage |
90Vac |
100Vac~240Vac |
264Vac |
Input Frequency |
47Hz |
50Hz/60Hz |
63Hz |
1.2. Input AC Current/AC
0.8Amax. @ 230Vac input & Full load/
1.3. Inrush Current (cold start)/
50Amax. @ 230Vac input
1.4. Pulse interference
Pulse interference test
1.5. Efficiency (Normal)
82.09% min. @ Nominalinput & Full load
2. Output Characteristics
2.1. Static Output Characteristics
Output |
Rated Load |
Output Range |
R+N |
Remark |
|
Rate |
Min. Load |
Max. Load |
|||
+12V |
0.0A |
2A |
11.4 V~ 12.6V |
≤120mVp-p |
|
Ripple & Noise: Measurement is done by 20MHz bandwidth oscilloscope and the output paralleled a 0.1uF ceramic capacitor and a47uF electrolysis capacitor. (test under the condition of rated input and rated output)
3. Protection Requirements
3.1. OverCurrent Protection
The output shall hiccup when the over currents (130-300%)applied to the output rail, and shall be self-recovery when the fault condition is removed
3.2. Short Circuit Protection
The input power shall decrease when the output rail short,the power supply shall no damage, and shall be self-recovery when the fault condition is removed
