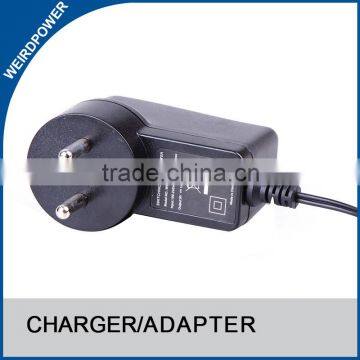

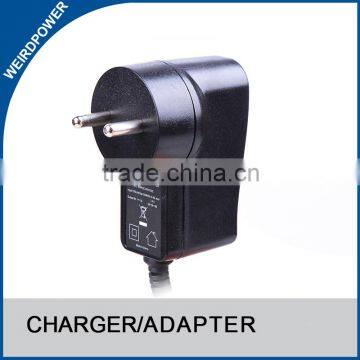

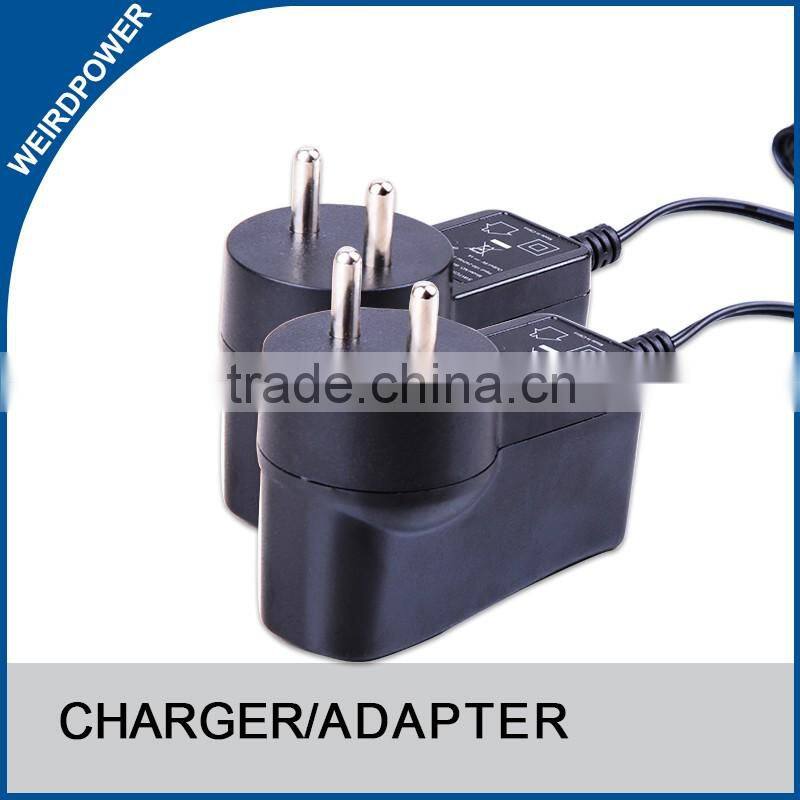

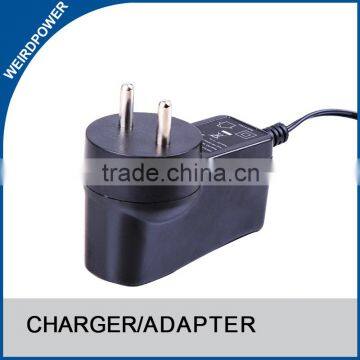

The product details the electrical, mechanical and environmental specifications of a Adaptor, the power supply provides 10W continuous output power: 12W 5V2A 5v 2a Indian power adapter for Android TV box
1. Input Characteristics
1.1. Input Voltage & Frequency
|
Minimum |
Rating |
Maximum |
Input Voltage |
100Vac |
100Vac~240Vac |
240Vac |
Input Frequency |
47Hz |
50Hz/60Hz |
63Hz |
1.2. Input AC Current
0.4Amax. @ 230Vac input & Full load
1.3. Inrush Current (cold start)
30Amax. for 230V/50Hz at cold start (25℃).
1.4. Average Efficiency
While input 115Vac and 230Vac,the average efficiency is more than 68%.The test point is 100% of max load respectively.
1.5. Standby power
Standby power <0.3W @ 230VAC/50Hz.
2. Output Characteristics
RATED OUTPUT |
Rated Load |
Remark
|
|
Min. |
Max. |
||
Output Voltage(unload) |
4.7V |
5.3V |
|
Output Voltage(Full load) |
4.7V |
5.3V |
|
Output Current |
0A |
2A |
|
Ripple & Nosic |
|
100mVp-p |
|
OCP |
|
110-300% |
|
power Wp-p |
|
|
|
Ripple & Noise: Tested by a oscilloscope using 20MHz bandwidth and the output is paralleled a 0.1uF ceramic capacitor and a 47uF electrolysis capacitor.
1. Protection Requirements
1.1. Over Current Protection
OCP Point Limited: 110%-300% auto restart
The output shall hiccup when the over current applied to the output , and shall be self-recovery when the fault condition is removed
1.2. Short Circuit Protection
The input power shall decrease when the output is short to GND, the power supply shall not damage, and shall be self-recovery when the fault condition is removed
2. Environment Requirements
2.1. Operating Temperature and Relative Humidity
0℃ to +40℃ 20%RH to 80%RH @ Sea level shall below or no more than10,000 feet
2.2. Storage Temperature and Relative Humidity
-10℃ to +70℃ 10%RH to 90%RH(non-condensing)@ Sea level shall below 30,000 feet
3. EMC Standards & Safety Standards
3.1. EMC Standards
l EN55022:2006+A1:2007
l EN55024:1998+A1:2001+A2:2003
l EN6100-3-2:2006
l EN6100-3-3:2008
3.2. Safety Standards
l IS 13252(PART 1):2010+A1:2013/IEC60950-1:2005+A1:2009
3.3. ielectric Strength(Hi-pot)
Primary to Secondary: 3000Vac / 10mA / 60 seconds (3 seconds for production)
3.4. Leakage Current
0.25mA max. at 230Vac / 50Hz input
3.5. Insulation Resistance
10MΩ min. @ primary to secondary add a 500Vdc test voltage

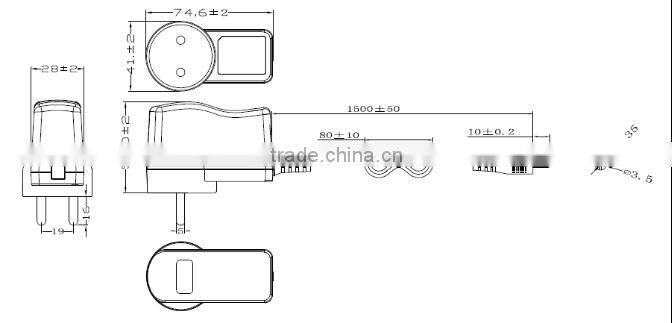

4: Cable connector:
5.5*2.1 / 5.5*2.5 / 3.5*1.35 / 4.0*1.35/ micro5pin / micro USB / mini 5pin ect
