Product Details
Place of Origin: | Jiangsu, China | Material: | Other |
Product Description

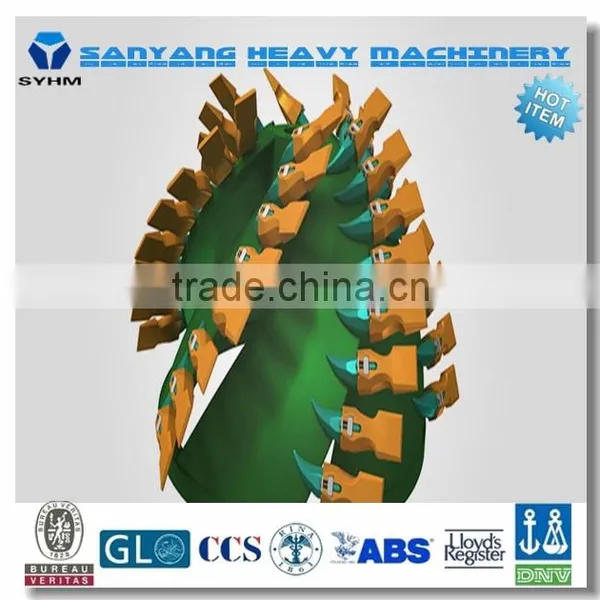

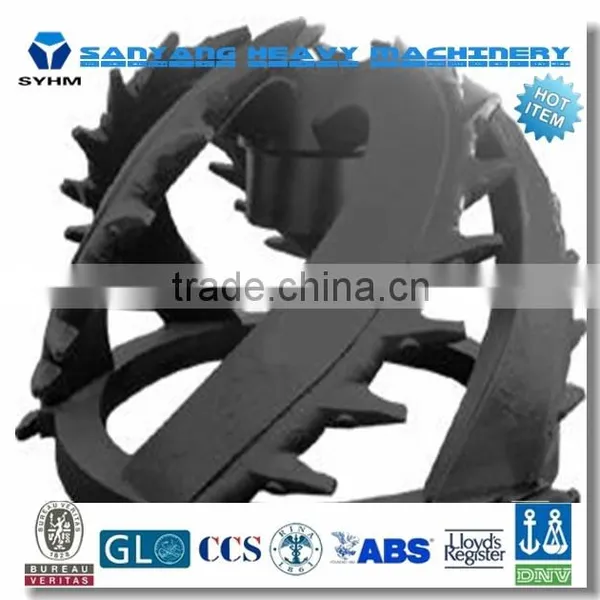

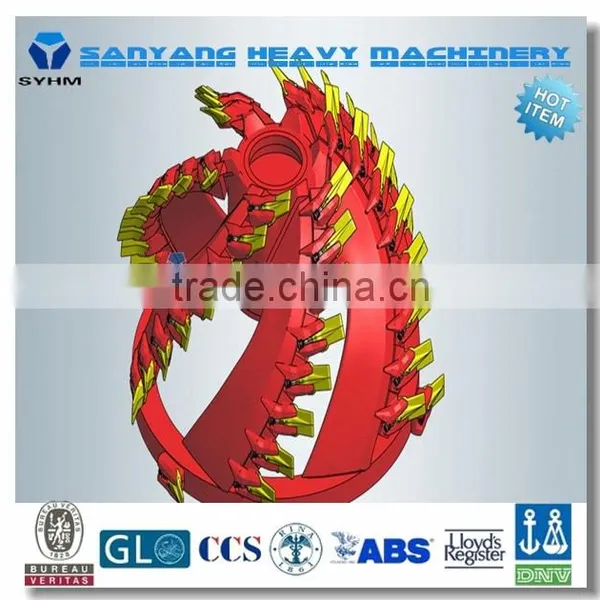

Dredging Cutter Head / Reamer for Cutter Suction Dredger / Cutter Head
Dredging Cutter Head / Reamer for Cutter Suction Dredger
The cutterhead is integrated within vessels to deliver high productivity and minimal downtime thanks to the profile, spacing and size of the arms, as well as the location, orientation and form of the teeth.
Cutter Head is one of the key structures of a CSD, for it largely determines the production quantity and the dredging efficiency.
The cutters can be fitted with a variety of teeth and replaceable cutting edges to offer the full spectrum of standard and customized excavation tools for all types of soils.
The dredging industry requires cutters for many types of dredging work. Sanyang cutters meets those needs by designing and supplying replaceable, optimally efficient edge cutters and the more sophisticated toothed cutters in close consultation with the customer.
Benefits
• exceptional wear resistance
• low cost per tonne production
• simplified maintenance.
For peat, soft clay, loose sand and gravel, teeth with a wide front chisel are typically used. For firmer or harder ground, a tooth with a narrower chisel can be selected. For extremely hard ground and rock, pick point type teeth offer the most effective results.

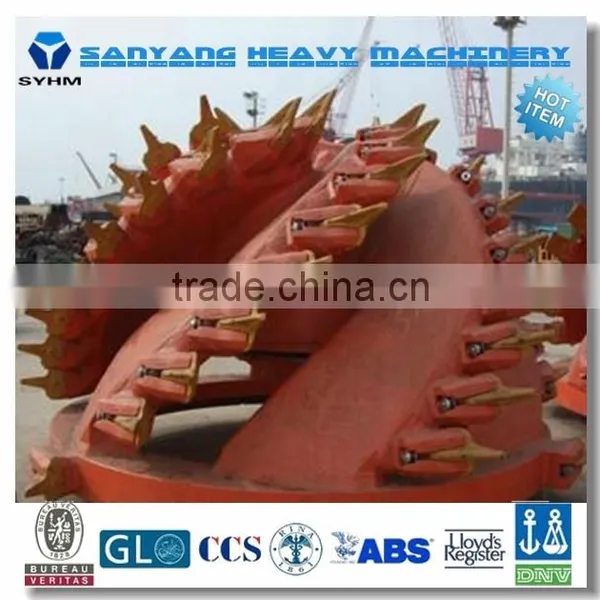

Cutters with replaceable teeth
In the case of a toothed cutter, the adapters are welded on the front side of the cutter arm. The easily replaceable teeth are fitted on the adapters and fixed in place with a locking pin. When a tooth has to be replaced, the locking pin is removed with a punch. In this way, the tooth can be exchanged rapidly for a change in soil type or for maintenance purposes.
Product No. | Dia of Suction Pipe | Inner Dia | Rotated Speed | Blade Arms No. |
[mm] | [mm] | [rpm] | ||
1 | 250-300 | 830 | 0-34 | 5 |
2 | 350-400 | 955 | 0-35 | 5 |
3 | 350-400 | 955 | 0-30 | 5 |
4 | 400-450 | 1330 | 0-30 | 5 |
5 | 500-550 | 1550 | 0-30 | 56 |
6 | 600-650 | 1750 | 0-32 | 56 |
7 | 600-650 | 1750 | 0-30 | 56 |
8 | 600-650 | 1750 | 0-24 | 56 |
9 | 600-650 | 1830 | 0-30 | 56 |
10 | 650-700 | 2000 | 0-30 | 56 |
11 | 700-750 | 2150 | 0-30 | 6 |
12 | 800-850 | 2260 | 0-30 | 6 |
13 | 850-900 | 2330 | 0-30 | 6 |
14 | 900-950 | 2400 | 0-30 | 6 |
I. Packaging Methord:
1. Wooden Csse;
2. Iron Frame;
For different shipping methods and destinations, we will suggest different packaging.
If you have any requirement for the packaging, please let me know during enquiry.
II. Shipping:
We offer our clients one-stop service.The shipping tool can be by sea, by air or by train.
It depends on the destination of our products.
And we will suggest you the min. cost and min. damage of the products.
Design Ability: We have a very experienced, creative, and cooperative team, which can design the whole propulsion system according to different vessels and requirements.
Material Preparation: our purchasing dept. will choose the material from many aspects, such as cost, quality, machining, environment protection, etc.
Machining & Test: We have advanced processing equipment with responsible crews. Our factory also have strict quality control process and test skills.
After-sale Service: You will get the after-sale service all over the world. Convenient, Fast, High Efficiency, World-wide, etc.
Best service will be enjoyed by cooperating with us.
