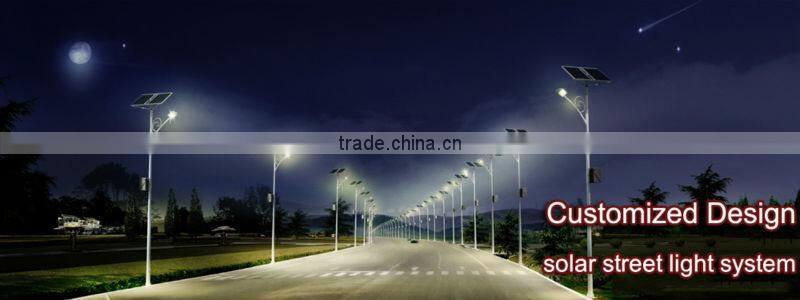

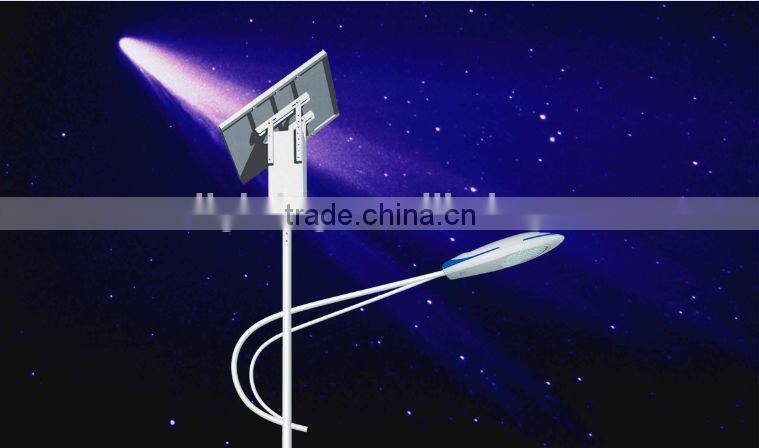

customized solar led street light with pole
Reference Configuration
| Pole Height | Led Lamp | Solar Panel | GEL Battery | Controller | Working Time |
| 4M | 12V20W | 18V50W | 12V50AH | 24V10AH |
10 hours per night 3 continued over cast and raining days |
| 5M | 12V25W | 18V70W | 12V70AH | 24V10AH | |
| 6M | 12V35W | 18V100W | 12V100AH | 24V10AH | |
| 7M | 24V50W | 35V120W | 24V60AH | 24V10AH | |
| 8M | 24V70W | 35V150W | 24V10AH | 24V10AH |
Brife Specification
Model |
ACR-SP100-30w | System voltage | DC12V/DC24V |
Lamp Power |
30W | Solar Panel Brand | Sunpower |
Led Chip |
Cree/Philips | Solar Panel Type | mono-crystalline |
| Color Temperature | 2500k~7500K | Battery Type | GEL |
Lampe |
|||
|
Width of Road |
10 m | Height of Led Lamp | 5 m |
|
Lamp Arrangement
|
Opposite Mounted |
Led Lamp Power | 30 w |
|
Work Time/day |
10 hours | Capacity of Battery | 120 Ah |
|
Continuous Rainy Days |
3 days | Power of Solar Panel | 130 w |
| Average Sunshine Time | 5 hours | Pole Distance | 15 m |
| Wind Resistance | 27m/s | Las for rainy/couldy days | 5~7days |
| Applicable : | around 6 hours valid sunshine time area |
Component Parts
| Solar panel |
C-SI Solar Panel and the lifespan is more than 15 years |
|
Battery
|
Rechargeable Lead-acid Battery |
|
Intelligent controller
|
Remote Intelligent Control that can read and set both work time and work style, and showing the work conditions of solar panel and battery. It also can remoted control the running status of LED lights according to the work sit need |
|
Light source
|
CREE LED characterized by high luminous efficacy, high brightness, low depreciation, long life, etc. |
| Controller | Remote Control, Light Control, Time Control, Anti-overdischarge and Short-circuit Resistance |
| Pole | Superb carbon steel pole coated with hot-dip zinc and static apray treatment, anti-salted, anti-acid, weather and rust resistant |
| Wokr time | Light Control Automatically. The main LED light turns on at dark in full brightness firstly and 4 hours later, then it turns off automotically. It works 5~7 cloudy and rainny days |
Solar Panle:
Battery:
Controller:
Remote Intelligent Control that can read and set both work time and work style, and showing the work conditions of solar panel and battery. It also can remoted control the running status of LED lights according to the work sit need
Working Principle
More Light Head
Light Pole Production
Multiple Type Pole
Installation and Application
