X6325 Universal Turret Milling Machine

Dalian R&C Machinery Co., Ltd.
X6325 Universal Turret Milling Machine thumbnail-1
X6325 Universal Turret Milling Machine photo-1
US$ 4,500 - 5,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
China
Brand Name:
R&C
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin China
Brand Name R&C
Model Number X6325
Type Universal
CNC or Not Normal
Voltage 380V
Power(W) 7.5kW
Dimension(L*W*H) 1600X1700X2250
Weight 1200
Certification ISO9001 CE
Warranty 1 years
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Milling Machine with High precision
2.Milling Machine with Low noise
3.High ragidity and high stability

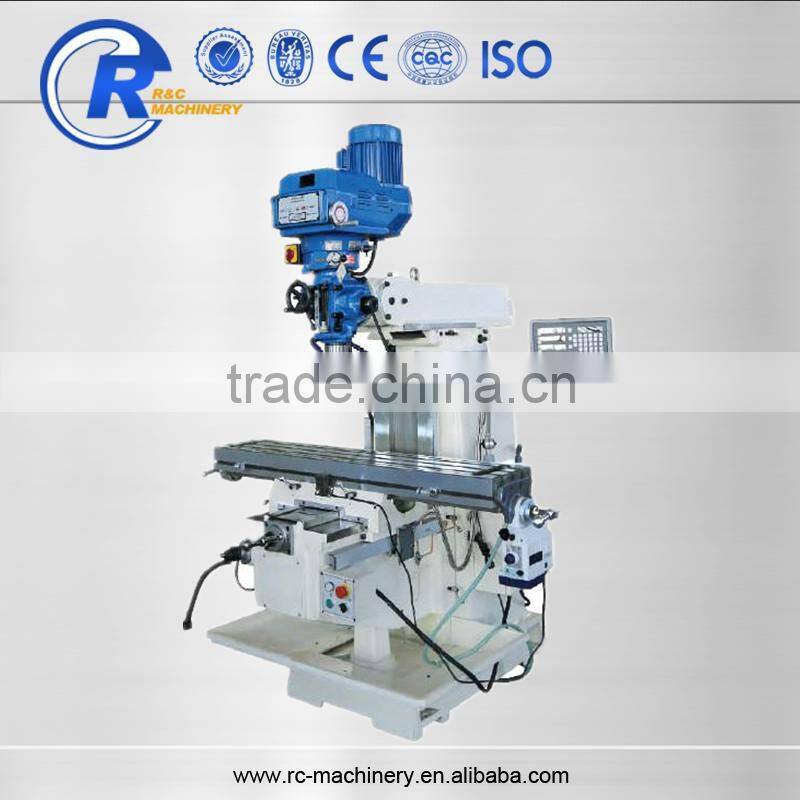

  X6325 universal turret milling machine

IMAGES >PARAMETERS >CUSTOMER VISITING > EXHIBITION>PACKING >OTHER MILLING MACHINES >OTHER MACHINES > COMPANY PROFILE>COMPANY PROMISE  > R&C

X6325 universal turret milling machine

IMAGES >PARAMETERS >CUSTOMER VISITING > EXHIBITION>PACKING >OTHER MILLING MACHINES >OTHER MACHINES > COMPANY PROFILE>COMPANY PROMISE  > R&C



Specification

Unit

X6325

Table size

mm

305X1370

254X1270

T-slots(NO./Width/Pitch)

mm

3/16/65

Table Travel(X/Y/Z)

mm

750/400/400

Distance between spindle nose and table surface

mm

0-460

Spindle speed range

rpm

80-3750

66-4540

Main motor Power

HP

5

3

Spindle hole taper

/

NT40

R8

Rotary arm



360°

Swivel angle of vertical milling head(right and left)

-

±90°

Swivel angle of vertical milling head(forward and backward)

-

±45°

Max. table load

kg

350

Overall size(L*W*H)

mm

1600X1700X2250

1750X1650X2100

Net weight

kg

1200







IMAGES >PARAMETERS >CUSTOMER VISITING > EXHIBITION>PACKING >OTHER MILLING MACHINES >OTHER MACHINES > COMPANY PROFILE>COMPANY PROMISE  > R&C



X6325 universal turret milling machine

X6325 universal turret milling machine

IMAGES >PARAMETERS >CUSTOMER VISITING > EXHIBITION>PACKING >OTHER MILLING MACHINES >OTHER MACHINES > COMPANY PROFILE>COMPANY PROMISE  > R&C

X6325 universal turret milling machine

IMAGES >PARAMETERS >CUSTOMER VISITING > EXHIBITION>PACKING >OTHER MILLING MACHINES >OTHER MACHINES > COMPANY PROFILE>COMPANY PROMISE  > R&C

X6325 universal turret milling machine

IMAGES >PARAMETERS >CUSTOMER VISITING > EXHIBITION>PACKING >OTHER MILLING MACHINES>OTHER MACHINES > COMPANY PROFILE>COMPANY PROMISE  > R&C

X6325 universal turret milling machine



IMAGES >PARAMETERS >CUSTOMER VISITING > EXHIBITION>PACKING >OTHER MILLING MACHINES >OTHER MACHINES > COMPANY PROFILE>COMPANY PROMISE  > R&C



X6325 universal turret milling machine

X6325 universal turret milling machine

X6325 universal turret milling machine

X6325 universal turret milling machine

X6325 universal turret milling machine

IMAGES >PARAMETERS >CUSTOMER VISITING > EXHIBITION>PACKING >OTHER MILLING MACHINES >OTHER MACHINES > COMPANY PROFILE>COMPANY PROMISE  > R&C

X6325 universal turret milling machine

X6325 universal turret milling machine

IMAGES >PARAMETERS >CUSTOMER VISITING > EXHIBITION>PACKING >OTHER MILLING MACHINES >OTHER MACHINES > COMPANY PROFILE>COMPANY PROMISE  > R&C

X6325 universal turret milling machine

IMAGES >PARAMETERS >CUSTOMER VISITING > EXHIBITION>PACKING >OTHER MILLING MACHINES >OTHER MACHINES > COMPANY PROFILE>COMPANY PROMISE  > R&C

X6325 universal turret milling machine
