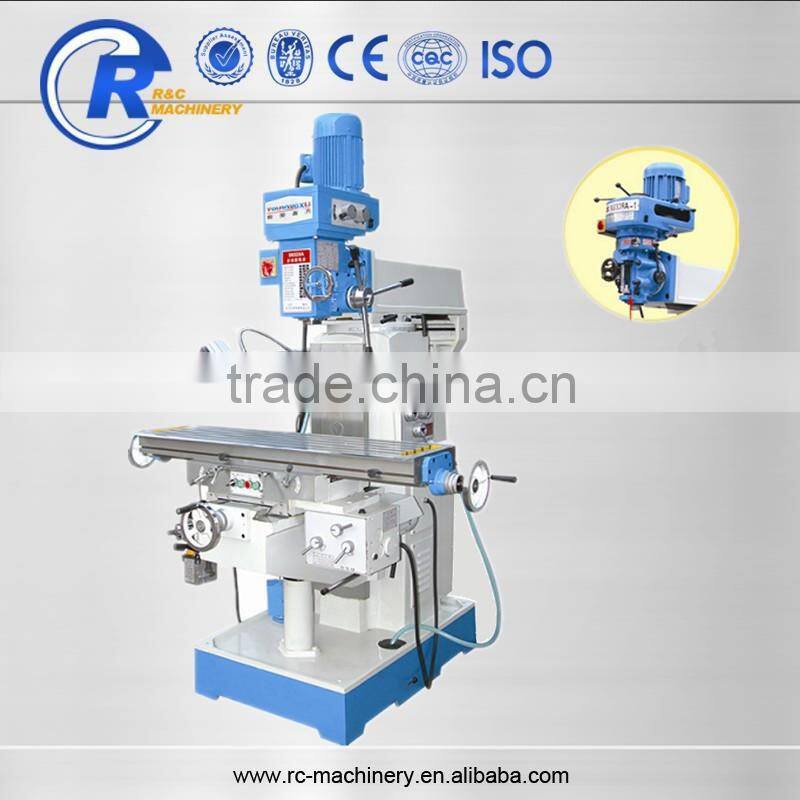

X6328A-1 New Design Manual Milling Machine Price

Dalian R&C Machinery Co., Ltd.
X6328A-1 New Design Manual Milling Machine Price thumbnail-1
X6328A-1 New Design Manual Milling Machine Price photo-1
US$ 30,000 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
China
Brand Name:
R&C
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin China
Brand Name R&C
Model Number X6328A-1
Type Universal
CNC or Not Normal
Voltage 380V
Power(W) 3kW
Dimension(L*W*H) 1635X1680X1810
Weight 1350
Certification ISO9001 CE
Warranty 1 years
After-sales Service Provided Engineers available to service machinery overseas



X6328A-1 New Design Manual Milling Machine Price

IMAGES >PARAMETERS >CUSTOMER VISITING > EXHIBITION>PACKING >OTHER MILLING MACHINES >OTHER MACHINES > COMPANY PROFILE>COMPANY PROMISE  > R&C

X6328A-1 New Design Manual Milling Machine Price

IMAGES >PARAMETERS >CUSTOMER VISITING > EXHIBITION>PACKING >OTHER MILLING MACHINES >OTHER MACHINES > COMPANY PROFILE>COMPANY PROMISE  > R&C







Specification

Unit

X6328C

X6328C-1

X6328A

X6328A-1

Table size

mm

1200X280

Table travel(X. Y. Z)

mm

620/260/400

T-slots(NO: /width/pitch)

mm

3/14/70

Spindle nose to table surface

mm

90-490

70-470

60-460

95-495

Distance between horizontal spindle and table surface

mm

0-280

Spindle speed range

r/min

8steps,

115-1750 (V)

Standard:

16steps80~5520

Optional:

variable speed

8 steps,

115~1750

Standard:

16steps80~5520

Optional:

variable speed

12steps, 45-1350 (H)

Spindle taper

-

MT4(V)

R8/IS040(V)

MT4(V)

R8/IS040(V)

IS040(H)

Automatic feed of spindle



0.04/0.08/0.15

Table feed

mm/min

30-855

13-265

Take-off and landing platform feed

mm/min

9-270

manual

Distance between horizontal spindle and ram surface

mm

215

Main motor power

kw

0.85/1.5(V)

2.2(V)

0.85/1.5(V)

2.2(V)

2.2(H)

Rapid motor power

kw

0.75

Overall size

mm

1750x1450x2200

Net weight

kg

1420

1380
