Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > DHM-50 High Speed Horizontal Machining Center
DHM-50 High Speed Horizontal Machining Center
US$ 10,000 - 12,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
VM850 Cnc Milling Machine Lathe With Promotion Price USD36,335.00 SIEMENS Quality ChoiceUS$ 36,335 - 43,350MOQ: 1 Set -
VM1050 3 Axis Cnc Vertical Machining With Promotion Price USD39,217.00 SIEMENSUS$ 39,217 - 47,500MOQ: 1 Set
-
VM1060 CNC MACHINE CENTER PRICEUS$ 6,000 - 35,000MOQ: 1 Set
-
VM1265 Small Cheap 4 Axis Cnc Milling Machine Tools Quality ChoiceUS$ 66,500 - 75,500MOQ: 1 Set
-
VM1370 3 Axis Cnc Milling Machine With Siemens and Fanuc System for SaleUS$ 68,500 - 77,500MOQ: 1 Set
Condition
New
Type
Horizontal
CNC or Not
CNC
Automatic Grade
Automatic
Max. Swing Diameter
630mm
Place of Origin
Jiangsu, China
Brand Name
R&C
Model Number
DHM-50
Voltage
380V
Power(W)
15KW
Dimension(L*W*H)
Specific Model
Weight
13000
Certification
CE & ISO
After-sales Service Provided
Engineers available to service machinery overseas
DHM-50 High Speed Horizontal Machining Center

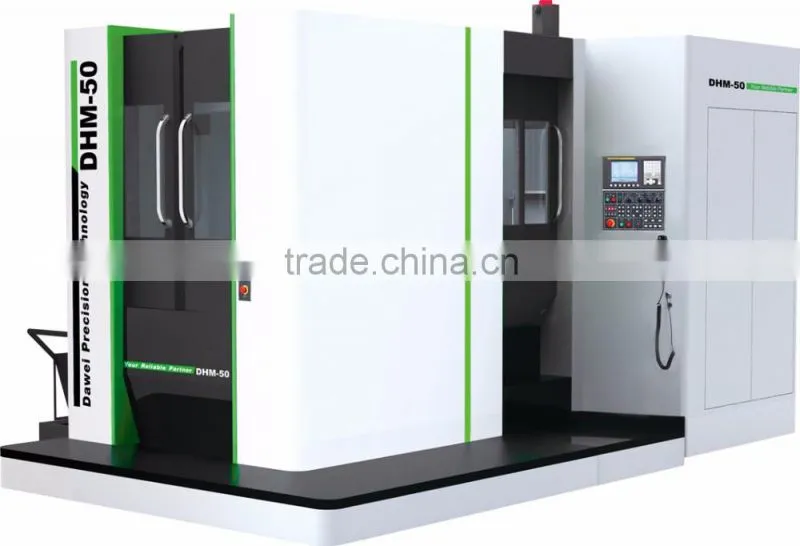

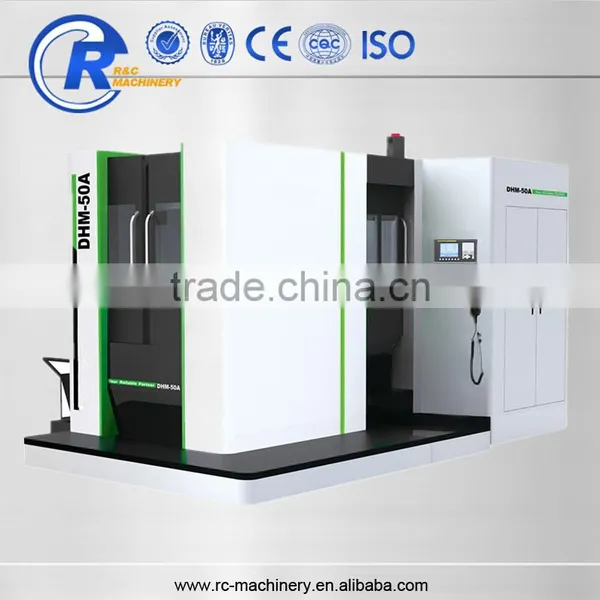

Photos of Mahine
|
|
|
|
Main Parameters
| Machine Type | Unit | DHM-40 | DHM-50 | DHM-63 | DHM-80 | ||
| Worktable | |||||||
| Worktable(length×width) | mm | 400*400 | 500*500 | 630*630 | 800*800 | ||
| Load of table(average load) | kg | 350 | 600 | 1200 | 2000 | ||
| Reference aperture | mm | 50H7 | 50H7 | 50H7 | 50H7 | ||
| Repetitive precision | Sec | ±1 | ±1 | ±1 | ±1 | ||
| Processing range | |||||||
| Maximum travel of X/Y/Z axes | mm | 500/500/400 | 700/650/600 | 1050/1000/1000 | 1000/1000/950 | ||
| Rotary worktable (B axis) | 1°*360 | 1°*360 | 1°*360 | 1°*360 | |||
| Distance from spindle nose to table | mm | 0-500 | 50-700 | 50-1050 | 75-1075 | ||
| Distance from spindle center to table | mm | 0-400 | 200-800 | 80-1050 | 150-1100 | ||
| Spindle system | |||||||
| A tapered hole (7:24) | BT40 | BT50 | BT50 | BT50 | |||
| Spindle speed | r/min | 10000 | 10000 | 10000 | 10000 | ||
| Motor power of spindle | KW | FANUC 5.5/7.5 | FANUC 11/18.5 | FANUC15/18.5 | FANUC15/18.5 |
||
| Transmission form (standard) | Belt type | Belt type | Belt type | Belt type | |||
| Transmission form (optional 1) | |||||||
| Transmission form (optional 2) | ZF | ZF | ZF | ZF | |||
| Tools capacity | 24 | 24 | 24 | 24 | |||
| Tool selection manner | random | Random | Random | Random | |||
| Maximum weight of tools | Kg | 8 | 25 | 25 | 25 | ||
| Maximum length of tools | mm | 300 | 350 | 350 | 350 | ||
| Tool exchanging manner | Tool arm type | Tool arm type | Tool arm type | Tool arm type | |||
| Precision | |||||||
| Positioning accuracy | mm | 0.01 | 0.01 | 0.01 | 0.01 | ||
| Accuracy of repeated positioning | mm | 0.005 | 0.005 | 0.005 | 0.005 | ||
| Requirements for air compressing | Kgf/cmm | 6 | 6 | 6 | 6 | ||
