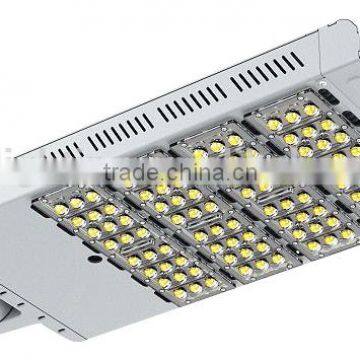

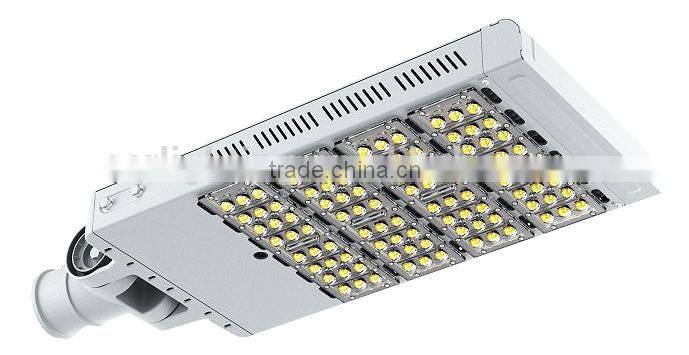

2015 updated die casting aluminum led street light housing 120w 150w
1. Technical Parameters of 2015 updated die casting aluminum led street light housing 120w 150w
| Model | ACR-ST804-120w |
| Power (w) | 120w |
| Led Quantity (pcs) | 96pcs |
| Power Factor | ≥0.9 |
| Power Efficiency | >85% |

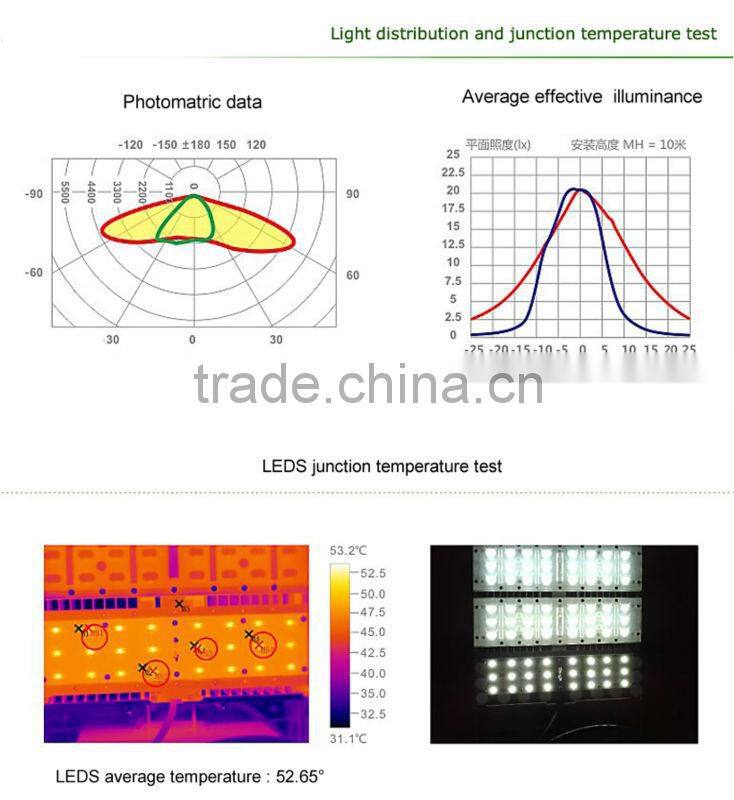

| Luminous Efficiency(lm/w) | 85-110lm/w |
| Flux Attenuation (%) | ≤5%(5000hours) |
| Lifespan | ≥50000Hrs |

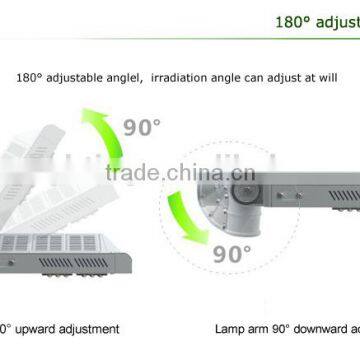

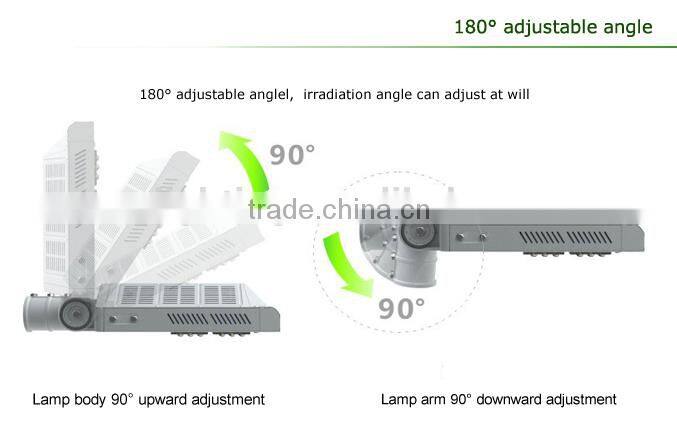

| Arm Adjustable Angle | 180° |
| Working Temperature | -20°C-+55°C |
| Storage Temperature | -25°C-65°C(25°C best) |
| Life Span | 50,000hours |
| IP Grade | IP65 |
| Surface Color | white |
| Warranty | 3years/5years |
| Pieces per carton | 1 pcs/ctn |
2.Specificaton of 2015 updated die casting aluminum led street light housing 120w 150w
ACR new led street light has 7 styles: from 30W to 210W, supports built-in fins improving heat
dissipation, 3D heat-dissipation with air-channel connecting inside and outside, processed by
coating and anodizing , greatly enhance corrosion resistance. It can adjust 180°, and waterproof is Ip65.

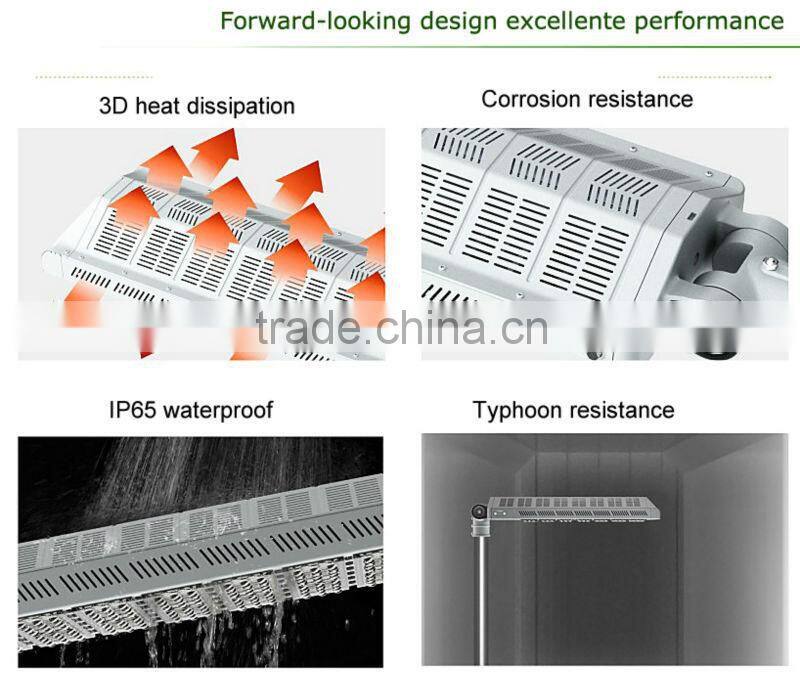

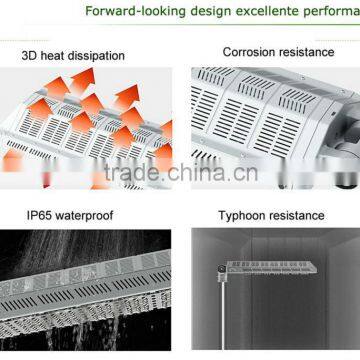

3. Advantages of 2015 updated die casting aluminum led street light housing 120w 150w

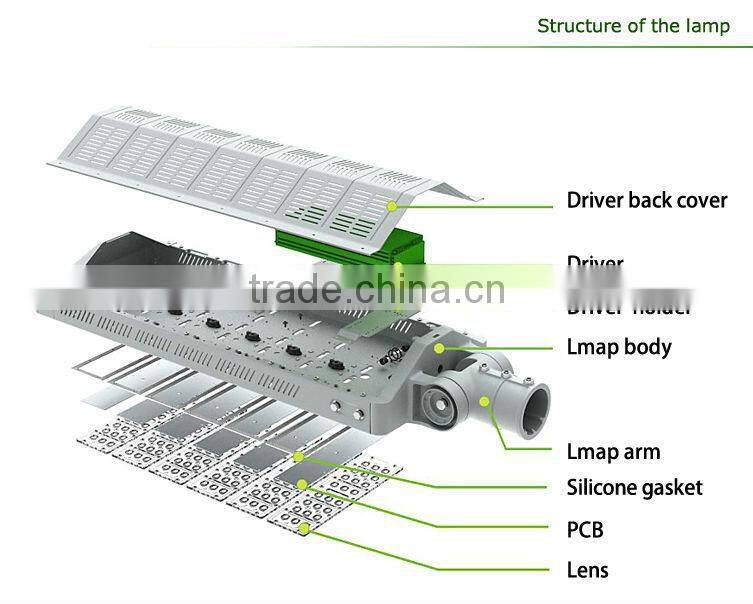

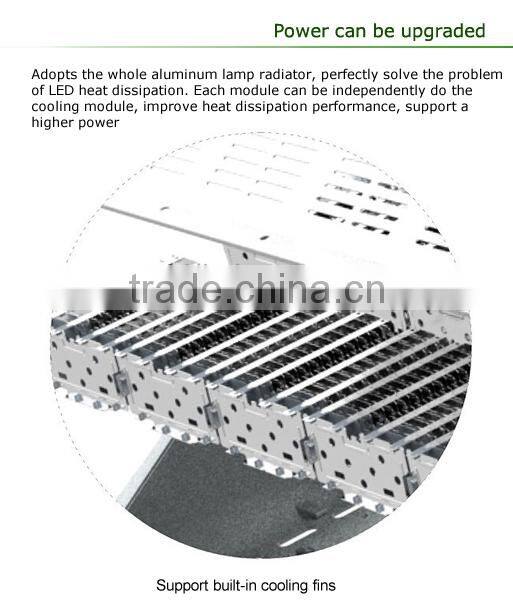

(1) All aluminum whole lamp radiator, air duct design innovation
The whole lamp USES the solid aluminum alloy material, based on the rigorous thermal simulation and test,
air duct was optimized by using innovative modular fins group, radiator, LED light source, zero distance
contact with the whole lamp cooling technology, the perfect solution to LED heat dissipation problem
(2) IP65 waterproof
Using silica gel seal technology, protection grade reaches IP65, perfect organization, dust invasion,
torrential rain nor water penetration.
(3) Hurricane resistant level 16
Through professional wind tunnel test, the maximum wind speed of 56 m/s, namely hurricane at
level 16, also do not have any deformation, the phenomenon such as loose, very strong.
(4) Independent power design
Drive power split type design, is not affected by the LED lamp body temperature, improve the
efficiency of the power, stability and life, and convenient maintenance.
(5) Good corrosion resistance
Shell by the processing of the lacquer that bake, radiator anodic oxidation treatment, form a protective
layer at the surface, greatly improve the corrosion resistance, suitable for harsh outdoor environment.
4. Feautres of 2015 updated die casting aluminum led street light housing 120w 150w

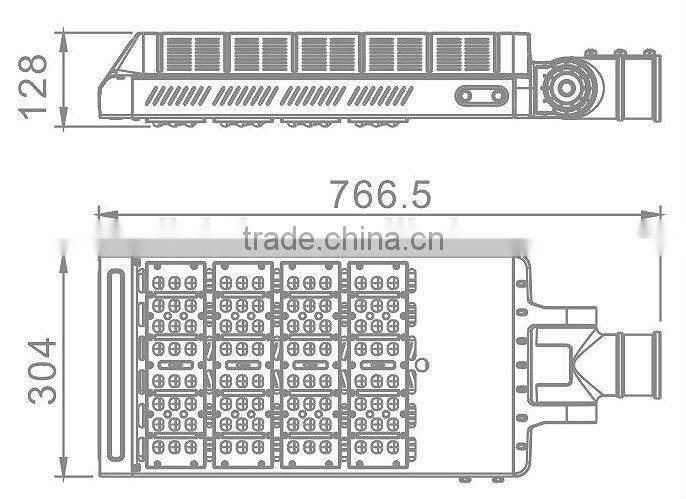

______________________________Size and Dimension
More power to choose
30w, 60w, 90w, 120w, 150w, 180w, 210w a total of 6 cooling suite product combination,
can choose the appropriate cooling suite according to need
