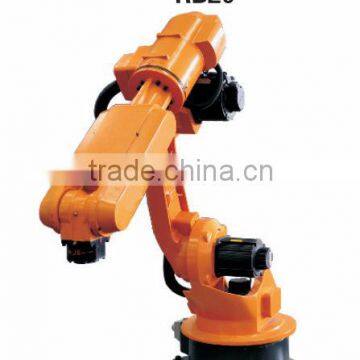

RB20 Manipulator 6-axis educational robotic arm Price China

FOB Price

US$ 3,000 - 30,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Liaoning, China	Brand Name	R&C
Model Number	RB20	Condition	New
After-sales Service Provided	Engineers available to service machinery overseas

1.industrial robot
2.Max loading: 20kg
3.Robot body weight: 245kg
4.loading
5.ISO9001 & CE

RB20 Manipulator 6-axis educational robotic arm Price China

IMAGE > SPECIFICATION > APPLICATION AREA > PACKING > OTHER ROBOTS > WORKSHOP > CONTACT

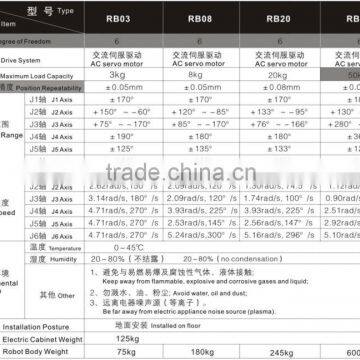

Items		RH06	RB08		RB20	RB50
Degree of Freedom		6	6		6	6
Max. Loading Capacity		6kg	8kg		20kg	50kg
Drive System		AC Servo Motor	AC Servo Motor		AC Servo Motor	AC Servo Motor
Reposition Repeatability		±0.05mm	±0.05mm		±0.08mm	±0.07mm
Movement Range	J1Axis	±170°	±170°		±170°	±180°
	J2Axis	+150°~-60°	+120°~ -85°		+133°~ -95°	+130°~ -90°
	J3Axis	+75°~-170°	+86°~-166°		+76°~-166°	+280°~-160°
	J4Axis	±190°	±180°		±180°	±360°
	J5Axis	±125°	±135°		±133°	±120°
	J6Axis	±360°	±360°		±360°	±360°
Rated Speed	J1Axis	2.62rad/s,150°/s	2.09rad/s,109°/s		1.90rad/s,109°/s	1.23rad/s,70°/s
	J2Axis	2.62rad/s,150°/s	2.09rad/s,74.5°/s		1.30rad/s,74.5°/s	1.12rad/s,64°/s
	J3Axis	3.14rad/s,180°/s	2.09rad/s,120°/s		1.74rad/s,100°/s	0.9rad/s,51°/s
	J4Axis	4.71rad/s,270°/s	3.93rad/s,225°/s		3.39rad/s,225°/s	2.51rad/s,144°/s
	J5Axis	4.71rad/s,270°/s	2.53rad/s,145°/s		2.56rad/s,147°/s	2.92rad/s,167°/s
	J6Axis	4.71rad/s,270°/s	5.24rad/s,300°/s		5.16rad/s,296°/s	5.10rad/s,292°/s
Environmental Condition	Temperature	0~45°
	Humidity	20%~80% (no condensation)
	Other	1. Keeping away from flammable, explosive and corrosive gas and liquid. 2. Avoiding water, oil, and dust. 3. Be far away from electric appliance noise source (plasma).
Installation Posture		Installed on floor
Electric Cabinet Weight		125kg
Robot Body Weight		75kg		180kg	245kg	600kg
