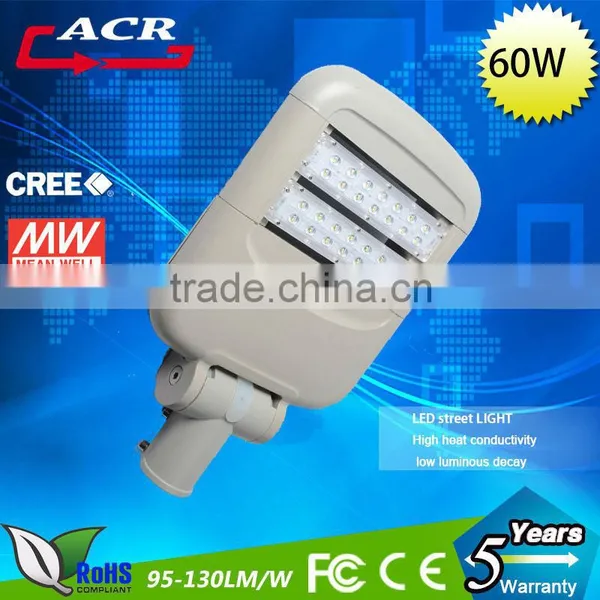

New module design die casting aluminum led street light housing 60w

Specifications

led street light housing 60w
IP65 real waterproof test
bridgelux/cree chip

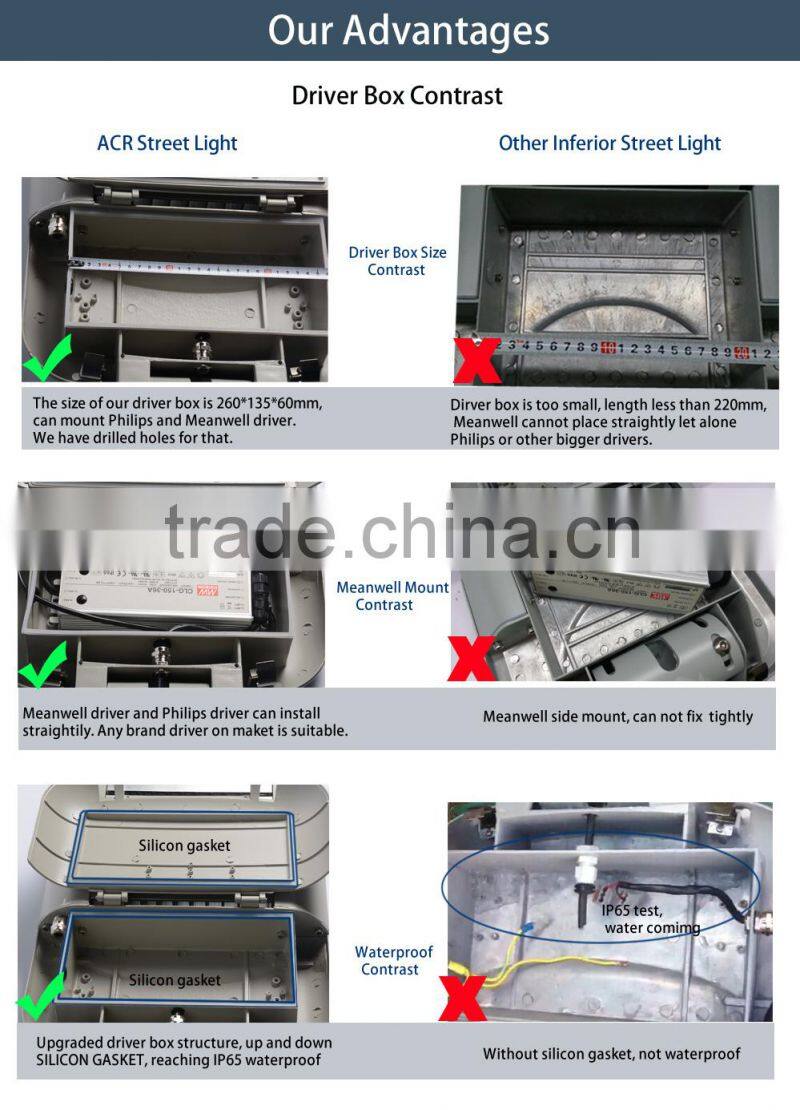

big driver box for mw/philip driver match



New module design die casting aluminum led street light housing 60w

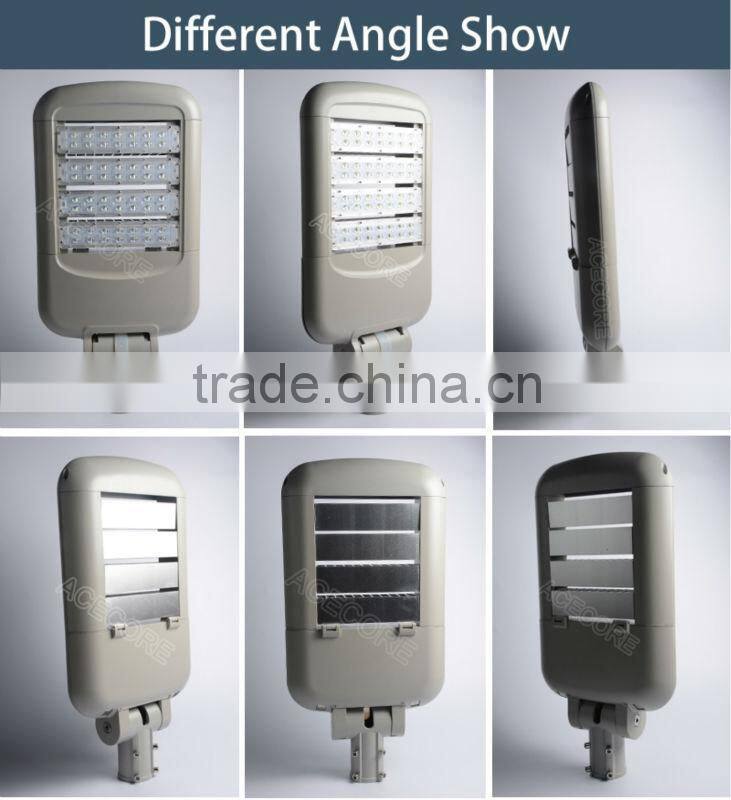

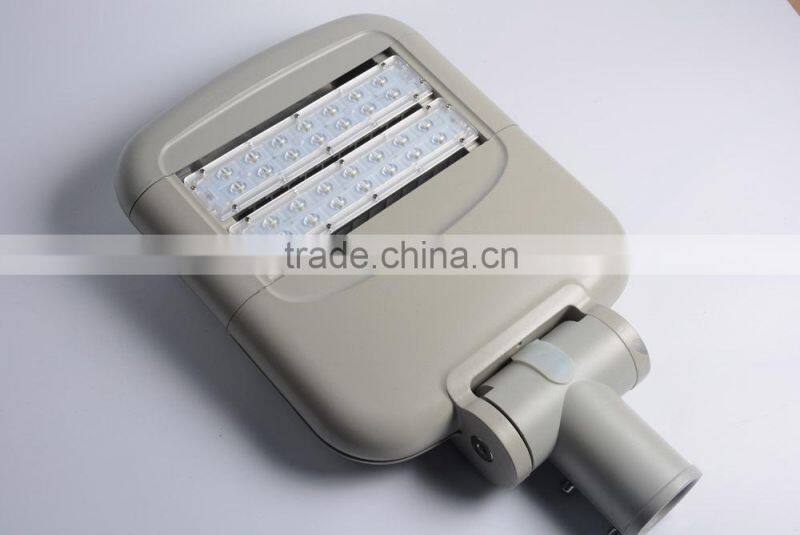

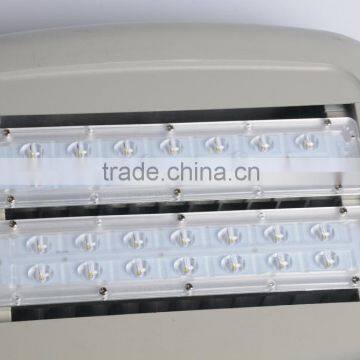

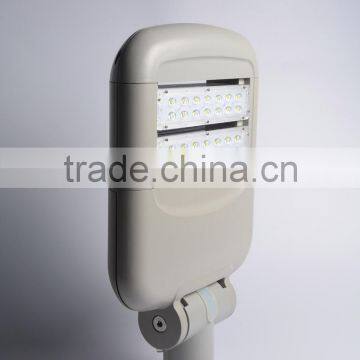

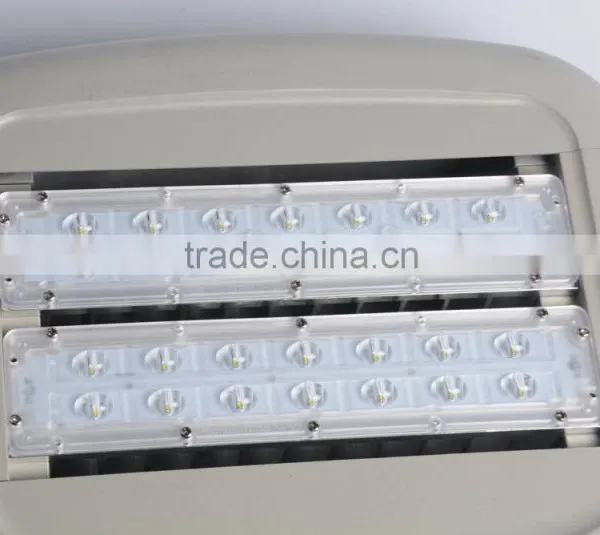

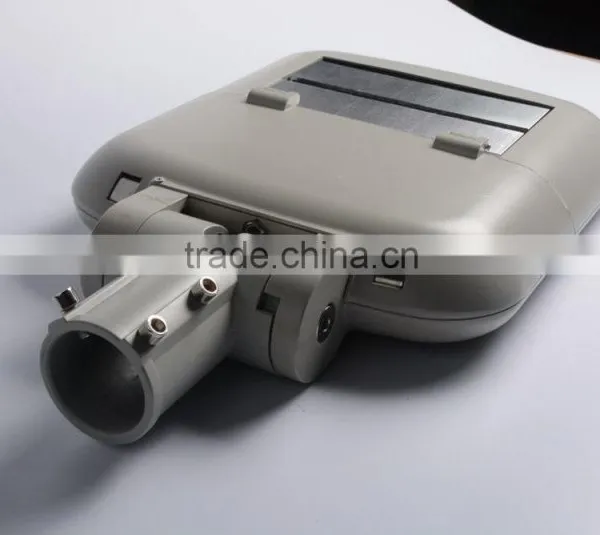

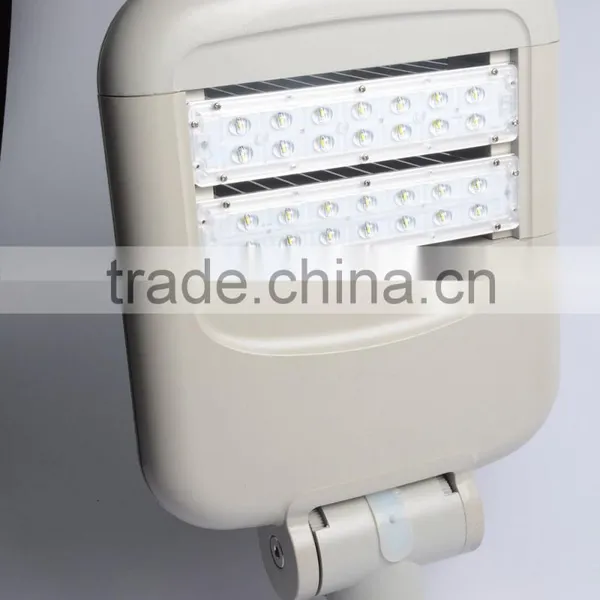

  Product picture





  Overview



 ACR-ST1300B series is the sencond generation modular design led street light,ACR completed the R&D indepently, and reserve all related patents for B-series LED street light, Including the high efficient themral dissipation radiatior, Waterproof of the whole products including driver box, big driver box for meanwell and philip driver, more efficient  CREE/OSRAM LED luminous source and high reliable MEAN WELL HLG Series LED driver make the ACR B series the most cost-effective LED street light available today.



Parameters







Modle	ACR-ST1302B-60w
Brand	ACECORE
Power rating	60W
Model Number	ACR-ST1302B
Material	Die-casting aluminium
Lumen	10000lm
Frequency	50/60HZ

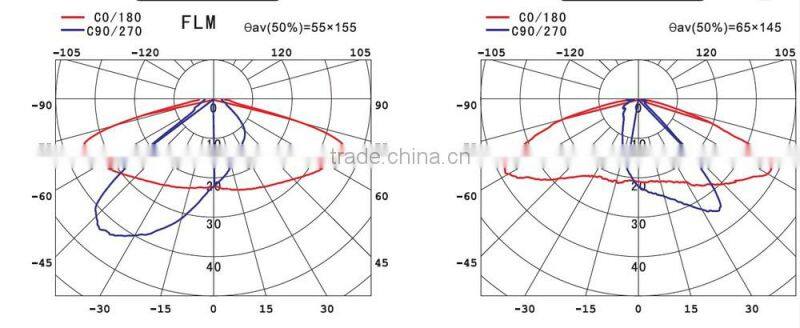

Beam angle	55*155 degree
Color temp	3000-7500k
Led chip brand	CREE/OSRAM/BRIDGELUX
Led driver brand	Meanwell/PHILIP/ACECORE
Net weight	7kg
Product size	565*350*100mm
Packing size	590*370*120mm
Certification	BV CE ROHS FCC TUV
Application	Garden,street,main road,park,highway

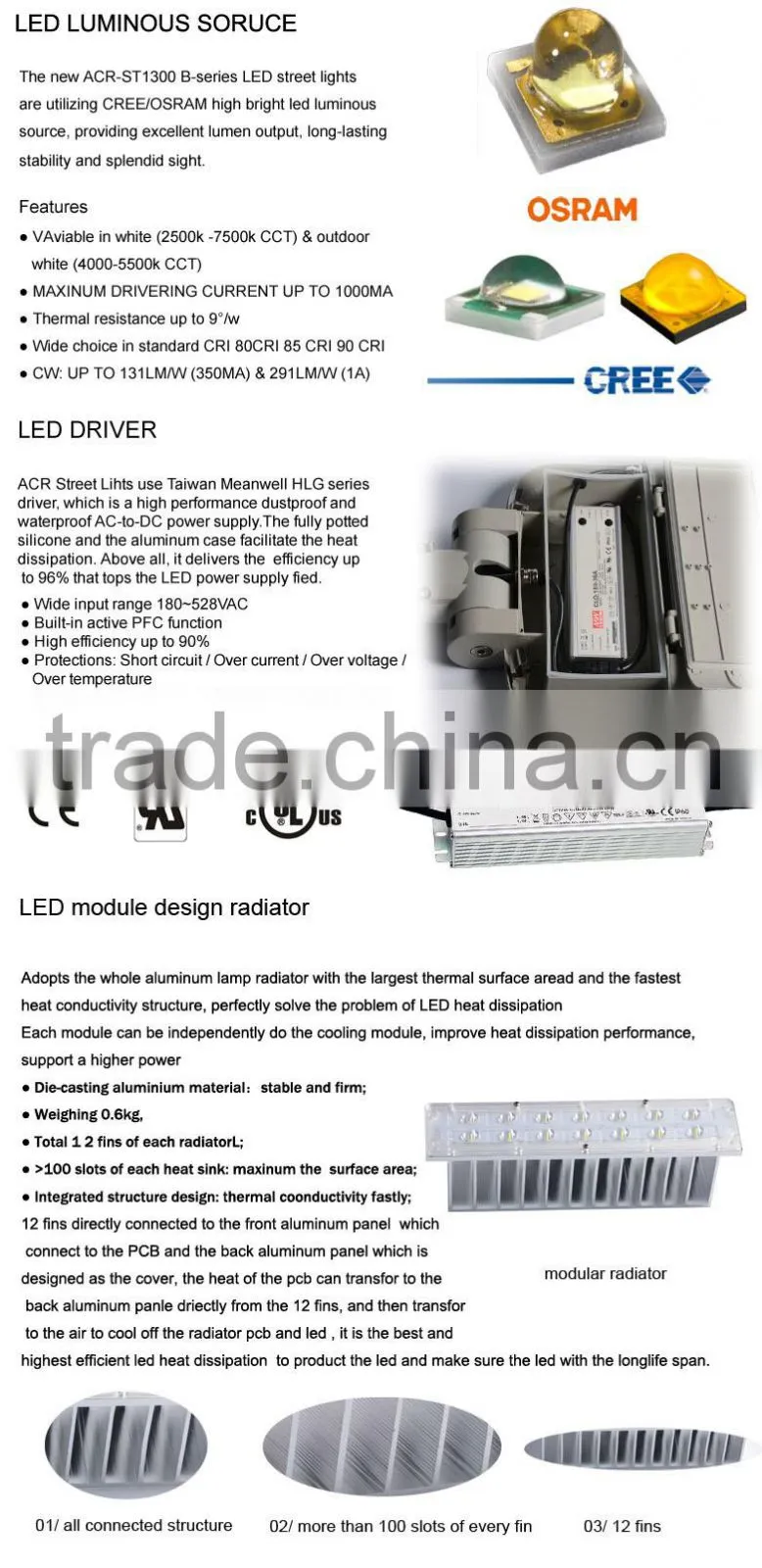

Product Benefits





Whole Design

• The whole lamp uses die-casting aluminum material, based on the rigorous thermal simulation and test, air duct was optimized by using innovative modularfins group,radiator, LED light source, zero distance contact with the whole lamp cooling technology, the perfect  solution to LED heat dissipation problem;

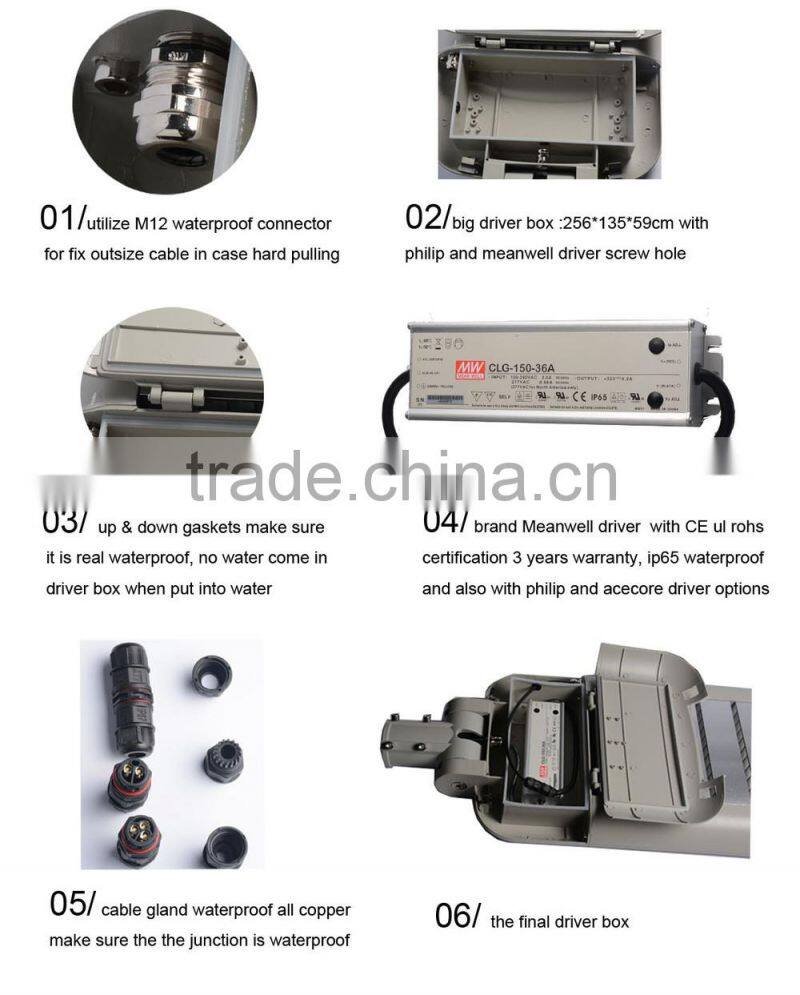

  Waterproof  Details

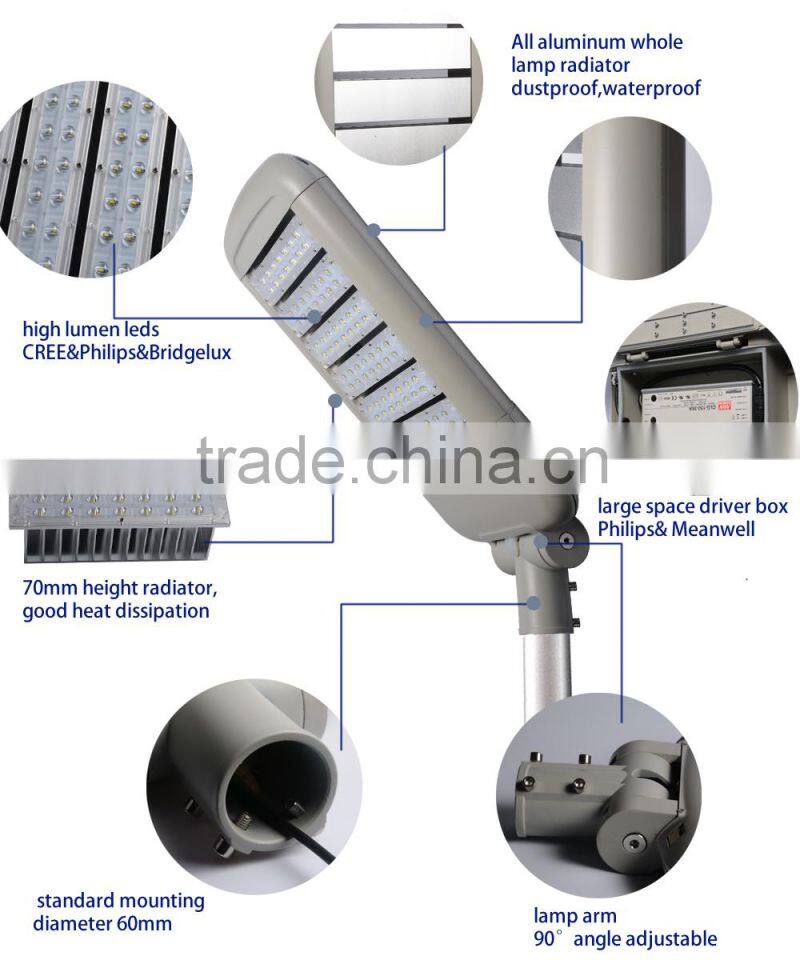

Acr-st1300B series features



acecore new led street light has 6 styles: from 30W to 180W, supports built-in fins improving heat

dissipation, 3D heat-dissipation with air-channel connecting inside and outside, processed by

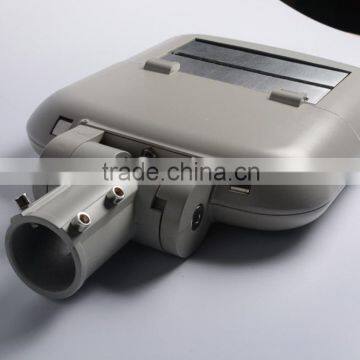

coating and anodizing , greatly enhance corrosion resistance. It can adjust 180°, and waterproof is Ip65.

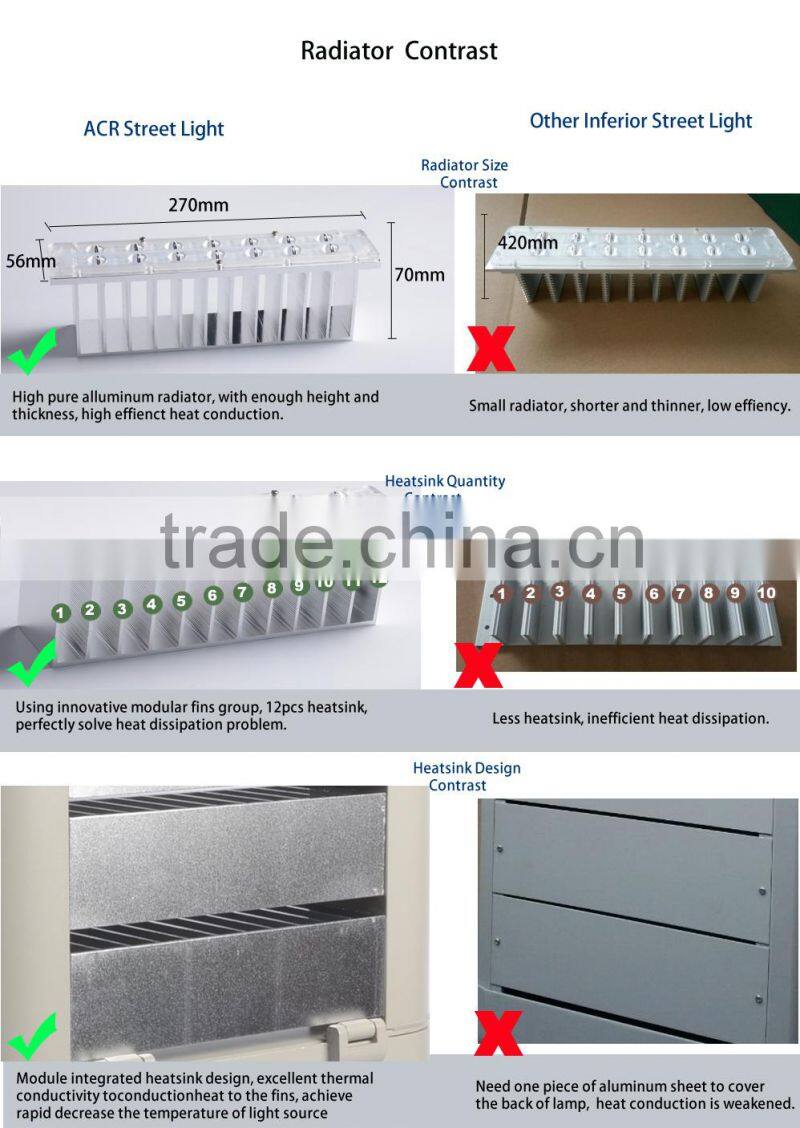

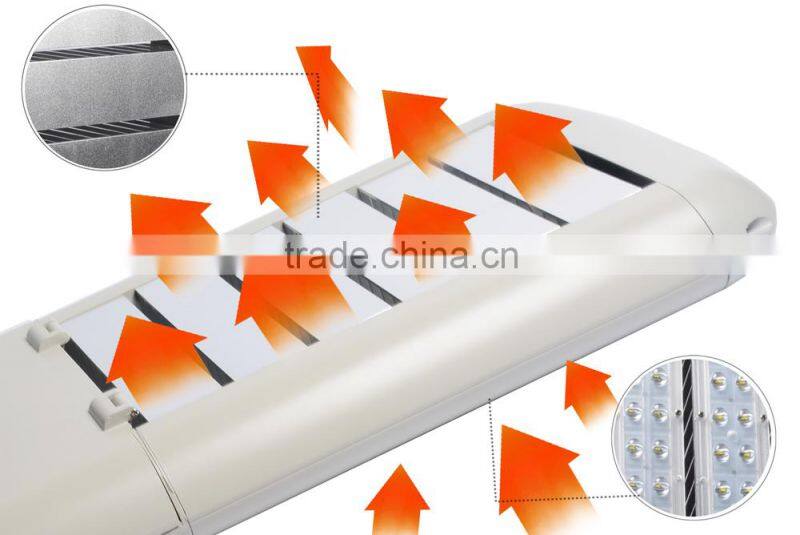

(1) All aluminum whole lamp radiator, air duct design innovation



The whole lamp USES die-casting aluminum material,  based on the rigorous  thermal  simulation  and test, air duct was optimized by using innovative modular fins group, radiator, LED light source,

zero distance contact with the whole lamp cooling technology, the perfect solution to LED heat dissipation problem.



(2) IP65 waterproof



Using silica gel seal technology, protection grade reaches IP65, perfect organization, dust invasion,

torrential rain nor water penetration.



(3) Hurricane resistant level 16

Through professional wind tunnel test, the maximum wind speed of 56 m/s, namely hurricane at

 level 16, also do not have any deformation, the phenomenon such as loose, very strong.



(4) Independent power design

Drive power split type design, is not affected by the LED lamp body temperature, improve the

efficiency of the power, stability and life, and convenient maintenance.



(5) Good corrosion resistance

Shell by the processing of the lacquer that bake, radiator anodic oxidation treatment, form a

protective, layer at the surface, greatly improve the corrosion resistance, suitable for harsh outdoor environment.



More Options:

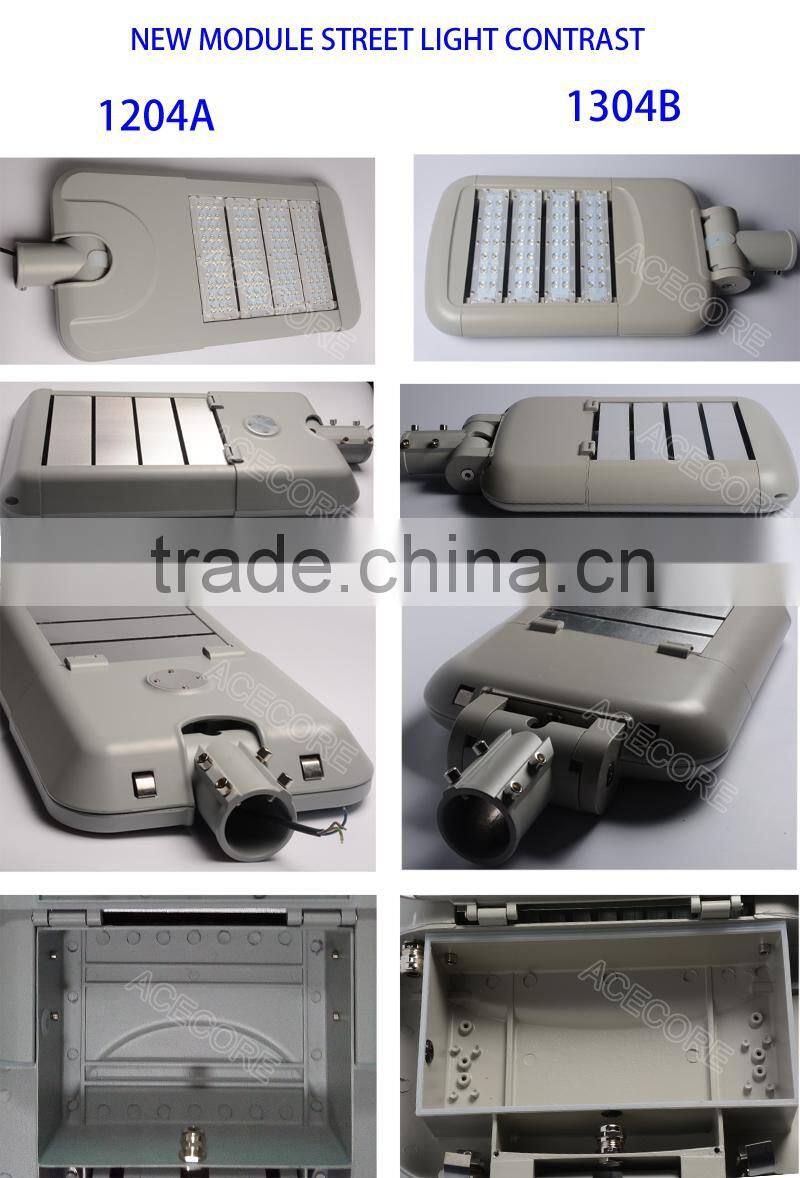

Similar module street light: 1204A

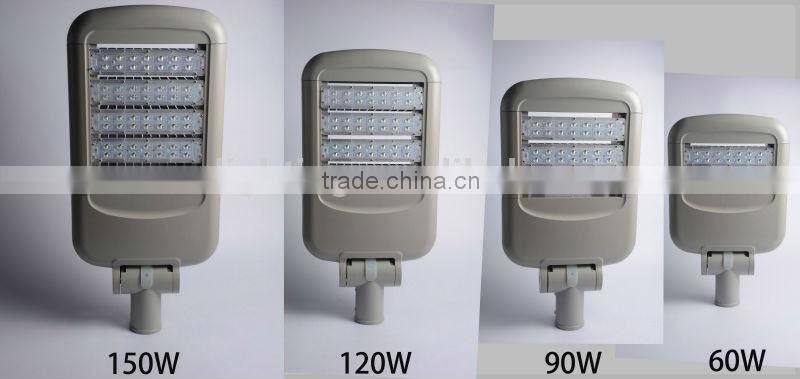

More power to choose



30w, 60w, 90w, 120w, 150w, 180w, 210w a total of 6 cooling suite product combination,



 can choose the appropriate cooling suite according to need

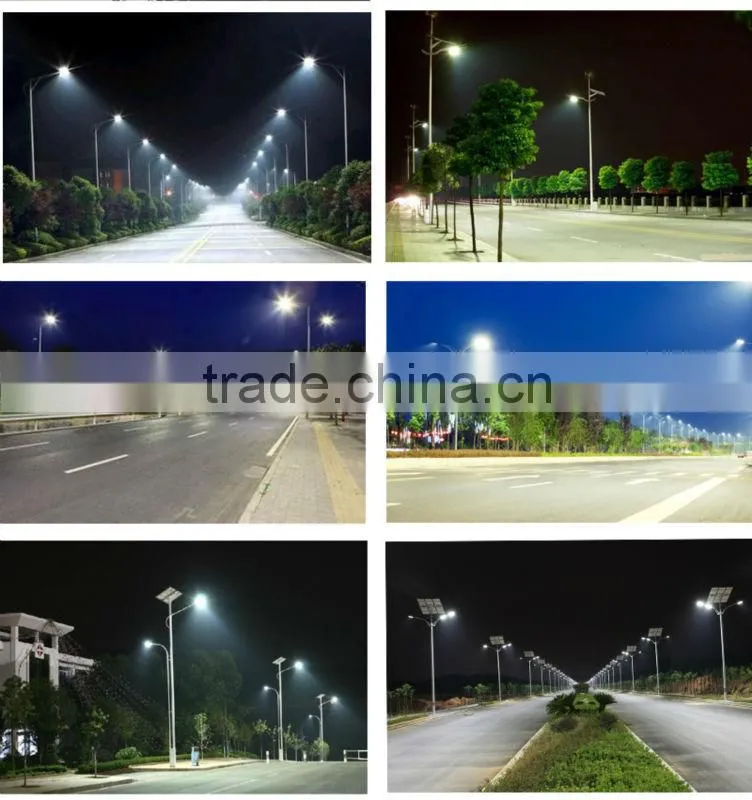

Application

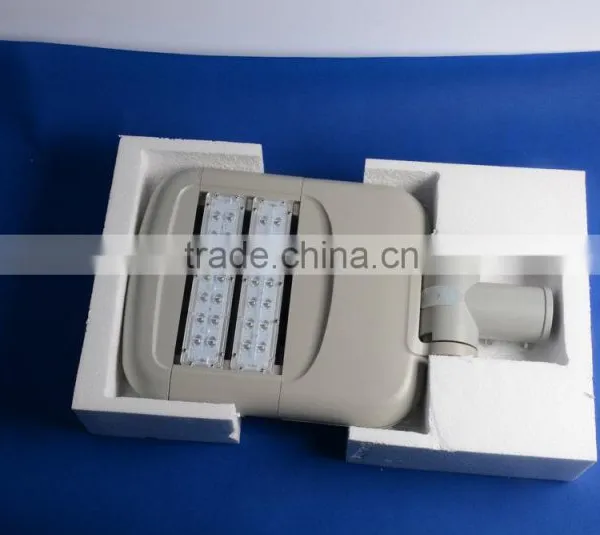

Package and Shippment





Our Capacity



Acecore Optoelectronics Technology Co., Ltd. (Zhongshan) was founded in 2006, dedicated to the production and sales of high quality LED outdoor light: LED street light, led flood light,led gas station light, led canopy light, solar led light, all in one solar street light and so on.Company has engineers, senior technicians, and many other professional technology research and development staff and first-class production and testing equipment, guarantee the production of high quality.Strong technical force, complete production testing equipment and strict quality control process to ensure theproduct quality, won the trust of many custoers domestic and abroad .
