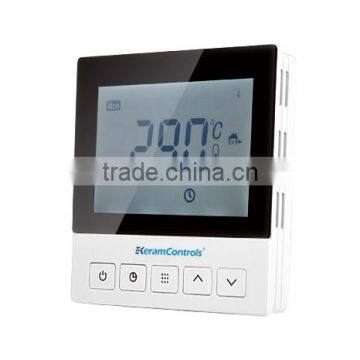

For Water Floor Heating Easy Master Controller Wifi Nest Thermostat

Main Features

Large LCD display with backlight

Permanent user setting retention during power loss

Can control valve and boiler at the same time .

Optional type of control for different heating application including room thermostat; floor thermostat or room thermostat with floor limitation

Optional programming Period: 7 individual day programming with 48 separate time to select economic or comfort mode.(Every half hour as a period of time) /cancel the programming function.

With wireless function.

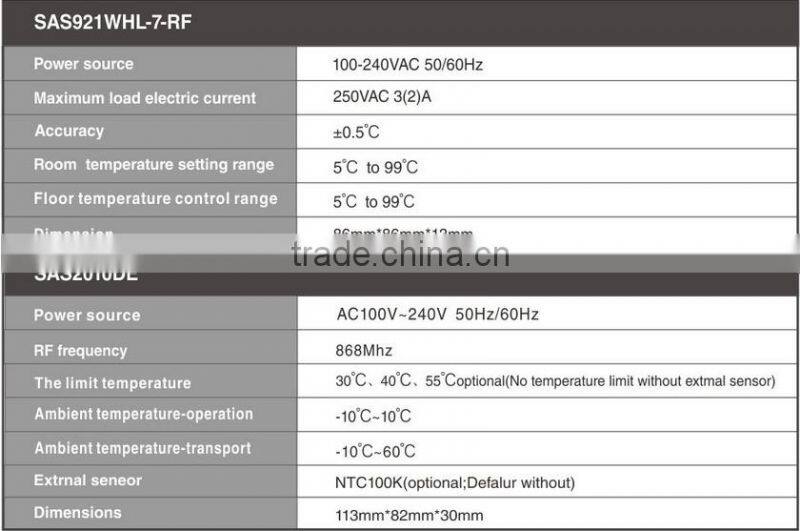

Technicial Data

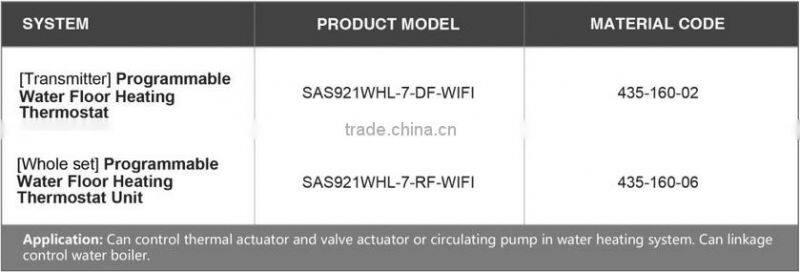

Model Selection

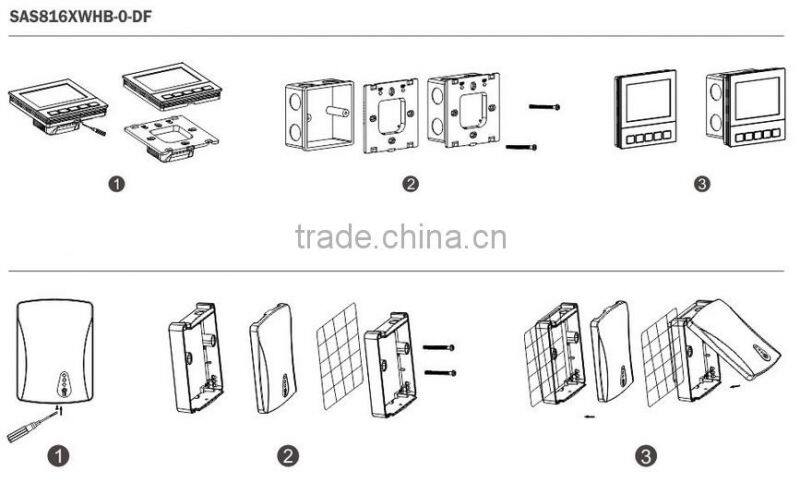

Installation

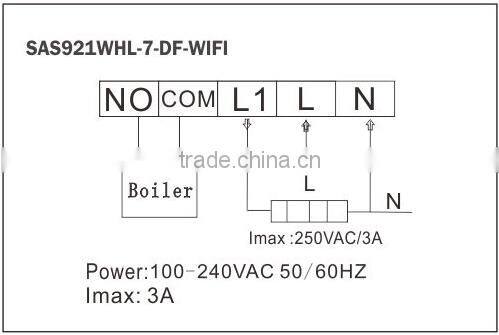

Wiring Diagram
