High Quality Sensitive Temperature Thermostat Control

                                  Keram® Room Temperature Thermostat

1.About Keram

Keram(Nanjing) Controls& Equipments Co;,Ltd. Was founded in 2000,a professional manufacturer andsupplier of controls equipment and products design.

2.Application

Range of application: Suitable for temperature control of all air conditioner coil pipe, electric valve, electric wind valve and electric air gate. Nice appearance, comfortable hand sense and steady performance Mechanical temperature controller and digital display temperature control are available.

3.Models for your choices

1) ITEM No.QY-Y366

Specification

Set-point Range:5°C-35°C

Dispaly:Large Character LCD

Display Accuracy: +/- 1 Centigrade

Power Supply:  220VAC±10%, 50/60HZ

Switch Current Rating:<3A

Dimensions:86*86*13.5mm

Sensing Element :NTC

Housing:Flam Retarding ABS

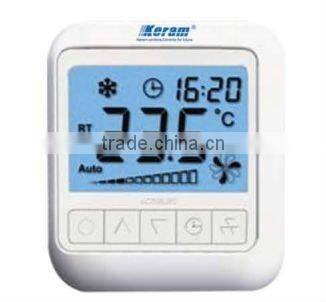

2)ITEM NO: QY-Y368

Description

The QY-Y368 thermostat is a stand-alone microprocessor based thermostat with a touch screen.The thermostat is designed to control room temperature by way of on/off controlling the fan coil units (with or without motorized cvalvels),damper or electric heaters in heating,cooling and ventilation applications.Modles are availble for heating,cooling and ventilating control of 2-pipe or 4-pipe fan-coil units.

Specification

Sending Element:Themistor

Power Supply:50Hz 220V  AC±10%

Dimension:86*86*13.6mm

Mounting hole distance:60mm (standard)

Set-Point range:5-35°C

Housing:Flame retarding ABS

Load:<2A 30VDC

Accurary:  ±1°C

Housing:Flame retarding ABS

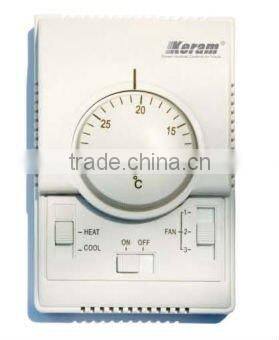

3)ITEM NO:QY-P201

Description

This thernostat is designed to control the motorrised valve,and the fan in 2-pipe fan coil applications.The thermostat operates an on/off valve to provide control at the desired

setpoint temperature.The fan can also be controlled from the thermostat.In some cases

it is wired to run continuously,and can be switched off with the system on/off switch,while with

other models,there is a choice of running the fan continuously.

Features

Anti-flammable ABS housing

Air inflated membrane box sensing element

Slide switch,easy to operate

Cool/heat selection

High/medium/low fan speed selectable

Precisely mechanical driving structure

ensure long-term operaion

Compatible wiht both 2-wired and 3-wired

motorised damper

Thermostat mounts directly onto a wall or conduit box

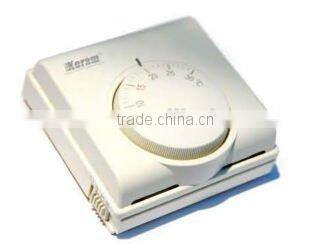

 4) ITEM NO.:QY-P301

Description

Suitable for control temperature of indoor center air conditioner and other heating facility

control temperature range:10-30°C

Work voltage:220V-/50Hz

Load current:16 A(resistive)

Sense component:air film case
