M Series Small Size Mini Single Pressure Controller

                                                        M Series Single Pressure Controls

Description

• M series single pressure controls is small in size, and used in compact refrigeration plant where space is limited. It also can used in water, air, steam and domestic heating and pumping system.
• Adjustable range with mechanical differential pressure.
• Dual scales
• Renovated SPDT micro-switch ensures the reliable switch function.
• Flexible mounting bracket suits various kids of application.
• Various connections are available on request.
• CE approval

Installation Considerations

Two mounting holes are provided in the body.These are 3.2mm diameter with 16mm

centres.A bracket is supplied which may be used as an alternative.

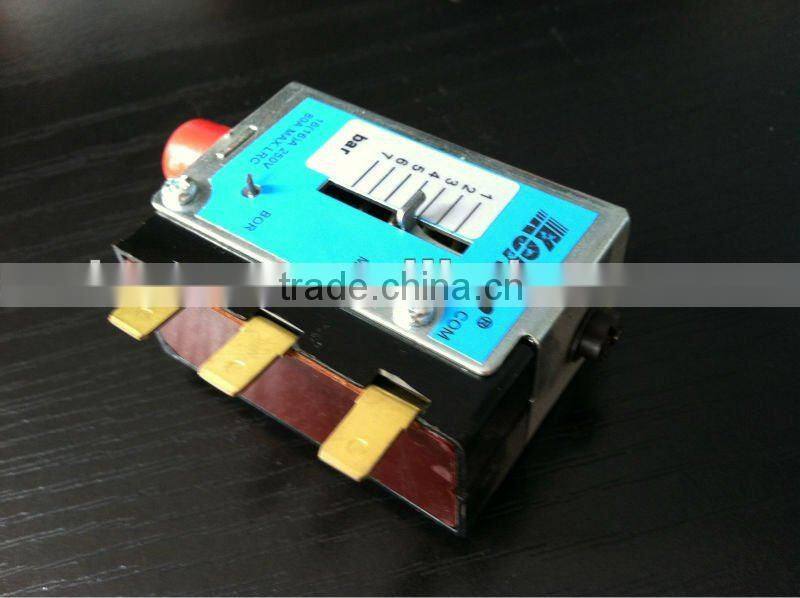

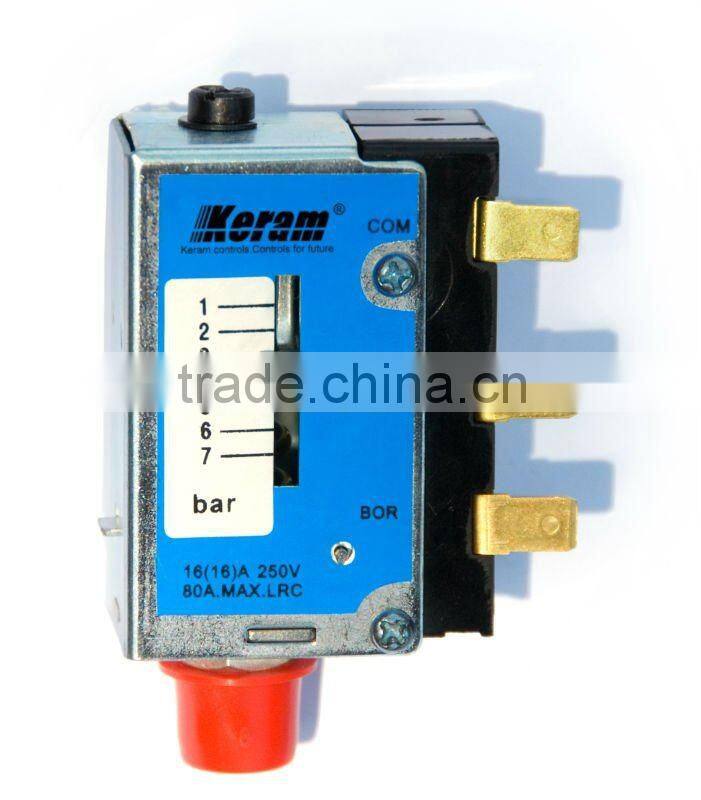

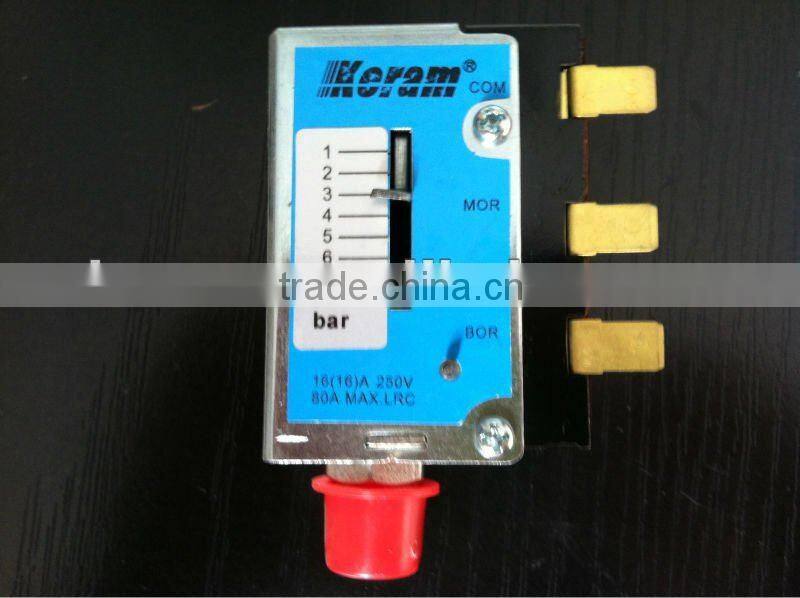

Phisical Description

The M series single pressure controls is versatile and robust,with easily adjustable

range settings.It is made up of three elements,the case,the pressure unit and the switch.the pressure unit us a seamless brass bellows(normally used on refrigeration

or pressurised heating system applications).A restrictor can be incorporated into the pressure element to minimise the effect of pump pulsations.The switch is a single pole change over stwitch that enables wiring for make on rise or break on rise.automatic and manual reset versions are also available.

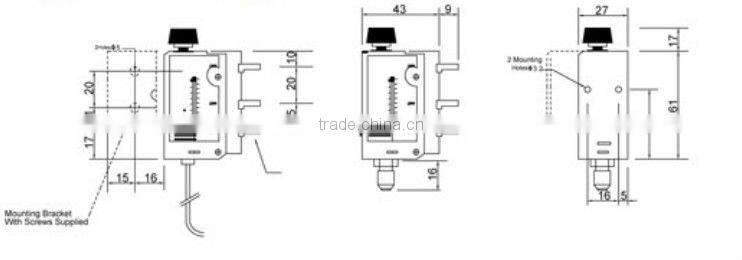

Apperance Drawing
