Specifications
1.Small apperance, light weight,2.CE/UL approval
ure setting can be defined on request

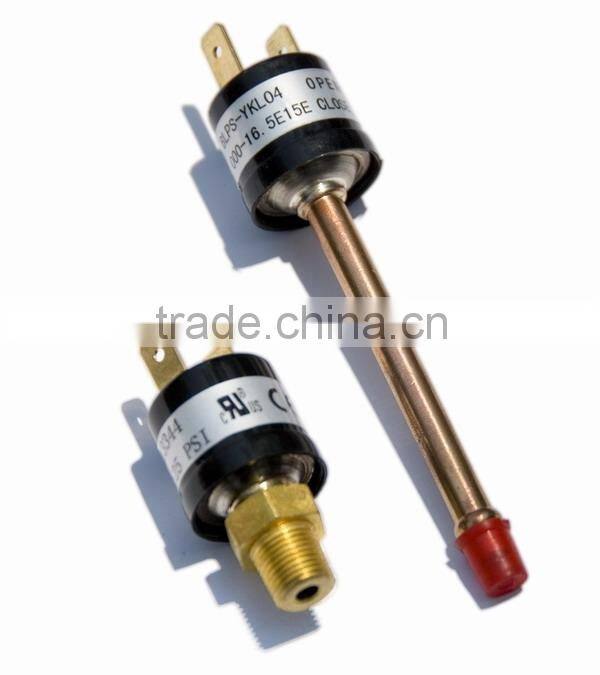

K series small pressure controls
Working principal
By the action of the butterfly metal diaphragm and the reset action to implement the switch between open state and close state , so as to achieve the control or alarm.
Specification
Rated Voltage: | 6-36vdc 125/240(V) | Type: | mechanical pressure switches |
Max Working Pressure: | 1000000(Pa) | Model: | K series |
Rated Current: | 400mA-14(A) | Brand: | Keram |
Mechanical Life: | 100T(times) | OEM: | Yes |
Description
Accuracy:Min±0.005MPa
Size:φ22×20mm;the connection is by request
Function: Auto reset or Manual reset,according to request
Medium:liquid,gas,water,oils,refrigeration fluid.
Structure:Sealed structure with stainless steel house
Optional pressure range:0~2500PSI(180Bar or 18MPa),according to request
Switch type:Normal open,Normal close,SPST
Rated voltage:6~36VDC 110~250VAC
Medium temp.:-35~135°C
Ambient temp.:-35~120°C
Used:Pressure controlling of air ,water,internal wiring of electric refrigerating equipment or room cooler units or remote outdoor condensing units for domestic cooling systems.
Typical Applications:safety controls/air conditioning/refrigeration
