Oilless Flage Bi-metal Self Lubricating Bearing Bushing

Oilless Flage Bi-metal Self Lubricating Bearing Bushing thumbnail-1
Oilless Flage Bi-metal Self Lubricating Bearing Bushing photo-1
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
HTB
Model Number:
HTB-800
Place of Origin:
Shaanxi, China
Contact Supplier Request Quote Chat Now
Xian Pin-Guan Electro-Mechanic Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HTB
Model Number HTB-800
Place of Origin Shaanxi, China

Specifications

1.Minim oil lubrication,applied in water-lubrication environmen
2.Good mending, low-noise, non-pollution
3.High density



 TYPES OF THE OUR PRODUCTS





Type F-0.5 D +0.20 d +0.15 L -0.04 h B
4040 60 46 40 39.5 3.5 3
4035 62 47 40 35 3.5 3.5
4055 68 55 45 55 3.5 5
5040A 72 57 50 40 3.5 3.5
5040B 70 57 50 40 3.5 3.5
5050 70 57 50 50 3.5 3.5
5460 92 60.6 54 60 3.5 3.3
6053 83 67 60 53 3.5 3.5
6060 87 67 60 60 3.5 3.5
6065 77 67 60 65 3.5 3.5
6060A 88 68 60 60 4 4
6060B 87 68 60 60 4 4
6465 102.6 70.4 63.5 65 3.5 3.5
6473 103 70.8 63.8 73 3.5 3.5
6553 85 72 65 53 3.5 3.5
6564 87 72 65 64 3.5 3.5
6575 108 72 65 75 3.5 3.5
7060 93 77 70 60 3.5 3.5
7090 108 80 70 90 5 5
7560 100 82 75 60 3.5 3.5
8060 105 87 80 68 3.5 3.5
8580 127 92 85 80 3.5 3.5
85103 128 92.6 85 103.5 3.5 3.8
89126 138 97.5 89.2 126.5 4.2 4.2
95127 144 105 95 127 5 5

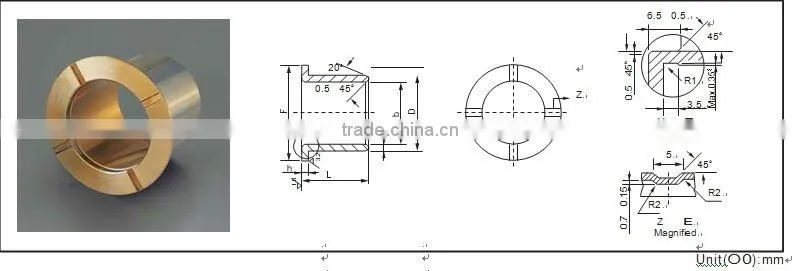

Oilless flage Bi-metal self lubricating bearing bushing

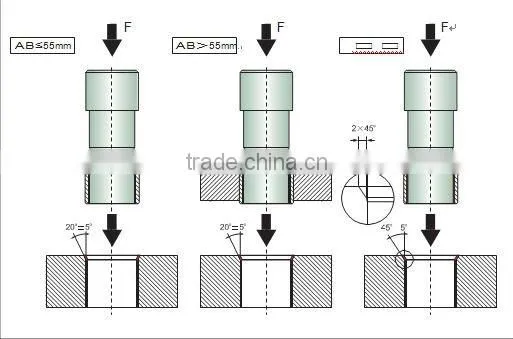

INSTALLING METHOD

Oilless flage Bi-metal self lubricating bearing bushingOilless flage Bi-metal self lubricating bearing bushing

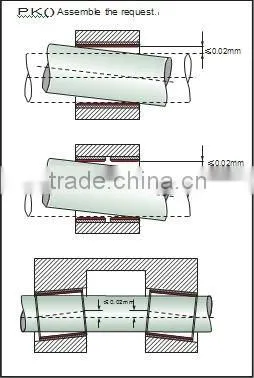

INSTALLING ATTENTION

1. To keep the bushing, housing dean before installing.







2. The outside surface can be covered with a little grease or oil during installing, which help the process. And please not too much.







3. The bushing should be pushed into housing slowly with mandrel (oil push machine is recommended), it is for hidden to hammer the part directly.



4. We need your instructions if the housing wall is thin or made from soft metal in order not to destroy it.







5. In order to simply the installment and keep the working layer, we recommend that the shaft should own chamfer and







HRC45/RZZ-3. Gr plating layer is allowed.







6. Grease and Oil are recommended in order to shorten the mending.
