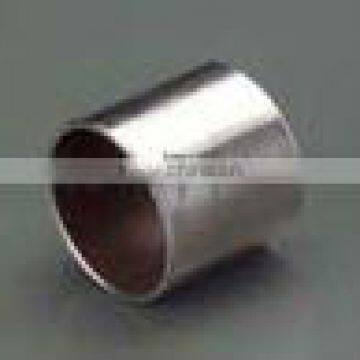

HTB-1S Stainless stell self-Lubricating sliding bearing
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shaanxi, China |
Product Description
Specifications
1.Stainless steel backing, which can strengthen the load and transfer heat.2.Competitive price
3.Quick delivery
MATERIAL STRUCTURE:
1. PTFE/Pb composition, 0.01-0.03mm, anti-abrasion material, which will form a
lubricating film during operation.
2. Bronze powder layer, 0.2-0.35mm, which further strengthen the combination of
the bronze plate and PTFE layer and transfer the heat more quickly.
3. Stainless steel backing, which can strengthen the load and transfer heat.
APPLICATION CHARCTERISTIC
1. PTFE with oil fibre can protect the shaft, while machine in operation.
2. It is of low friction coefficient, good anti-wear.
3. Good running in property.
4. It fits well in motion of circumgyration, swaying and to-and-fro.
5. Good anti-corrosion.
6. It can be used in food machine, pharmaceutical etc, due to lead-free.
7. It is mainly used in the condition of strong acid and alkali, such as chemical
Industry, pumps, valves etc.
TECHNICAL DATE
|
Static Load |
|
|
friction coefficient |
0.01~0.05 | |
Max Load |
Low-speed Rotation | 140N/ |
|
|
dry friction |
2m/s |
|
Rotation,Oscillation |
|
| max linear velocity |
liquid lubrication |
10m/s |
|
intermittent operation |
3.6N/mm2 m/s |
|
Thermal Conductivity | 40W(m k)-1 | |
Max PV (Dry Friction) |
long-time operation |
1.8N/mm2 m/s |
|
Coefficient of thermal expansion |
12 10-6/k | |
Operation Temp. | -195 °C ~+280 °C
|
|
|
| ||
