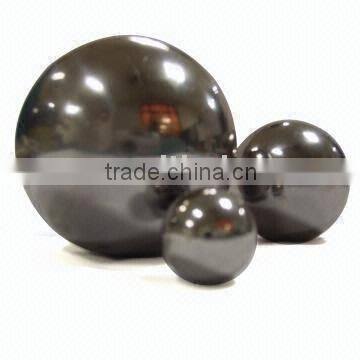

stainless steel ball

Specifications

Specification & Feature:

Chrome stee balls AISI52100

Universal material for ball and roller bearing industry.

Chrome steel balls contain chromium and due to through hardening

has an excellent surface quality and high load bearing.

Hardness:  Modern heat treating facilities, complete with controlled

atmosphere and temperature, to maintain excellent hardness

control with a through hardness of HRC 60 to 67.

Size Available: 0.5mm - 102mm (4")

Grade Available:  G5, G10 - G1000

Application:  Universal for many application.   For example: balls &

roller bearings, Linear montion, Balls lead screws, grinding media.

Carbon  steel balls AISI1015

Feature: High hardness with a soft core giving

resistance to shock load & excellent resistance

to surface wear.

Hardness:  Hardness is HRC 60 min. Reference

the accompanying chart for minimum case

depth.

Size Available: 2.0mm - 50mm (2")

Grade Available:  G40 -- G1000

Application:  Moderate loads and alow rotating

parts, for example: castors, conveyors, roller

skates, drawer slides, seat slides, bicycles,etc.

440C Stainless Steel:

A martenistictype stainless steel

used extensively  in bearing

applications thathardness,

dimensional stability, corrosion

resistance and toughness.

balls are resistant to corrosion

fresh water, steam, crude oil,

gasoline,perspiration, alcohol, blood

and  stuffs. 440 is also magnetic.

 Size Available: 0.5mm - 102mm (4")

Grade Available:  G10 - G1000

304 Stainless Steel

Steel is an austentistic, unhardened

resistance to corrosion by oxidizing

agents,most organic chemicals, food

and sterilizing solutions. It has a

Steel and is slightly magnetic.

Size Available: 0.5mm - 102mm (4")

Grade Available:  G100 - G1000

316 Stainless Steel:

316 stainless steel balls provide resistance

tosulfurous acid compounds and other

highly corrosive environments, and

is used in the presence of sulfuric,

phosphoric and acetic acids. It is the

least magnetic of the 300 series.

 Size Available: 0.5mm - 102mm (4")

Grade Available:   G100 - G1000

carbon content than 302 Stainless

stainless steel with excellent
