Features:
- High energy efficiency
- One-piece / no internal parts
- Clog-resistant performance
- High discharge velocity
Technical Parameter of silicon carbide nozzle:
Density (g/cm3) |
Flexural Strength (MPa)
|
Fracture toughnessK1C (M·Pam1/2) |
Free Si content (%) |
Vickers microhardness (GPa) |
3.09 | 326 | 4.47 | 7.76 | 25 |
Design Features:
- Nozzle Materials: Silicon Carbide(SiC/SiSiC)
- Spray Patterns: full cone spiral and hollow cone spiral spray;
- Spray angles: from 60 to 170 degree;
- Pressure Range: 0.7 to 25 bar (2.6 to 11960 L/min);
- Inlet connection Type: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3", 4";
- Thread Standard: available in type male, female and flange connection;
- Also referred to as: Pigtail Nozzles, Twister Nozzle, Sprinkler Head, Whirl Nozzle.
Application:
- Power plant, burning coal project desulfurization and denitration.
- Air purification, air cooling and defoaming
- Evaporation, cooling, and dust controlling ,fire protection
- Wetting air by dust removing spray--environment protection
- Pre-treatment requires for non-blocking spray
- Air cooling Desulphurization and dust control
- Exhaust gas cleaning, Plastic spiral fogging nozzles
- Fire fighting, fireproof Fire protection
- Steel and iron /petrochemical industry dustproof application

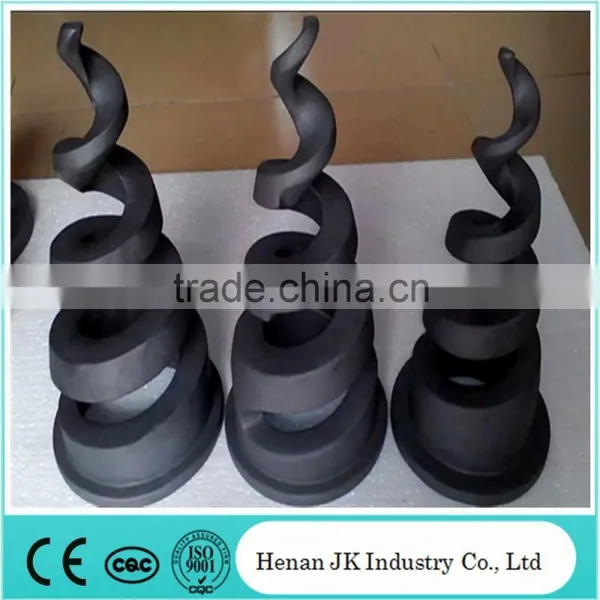

a. The same sic spray nozzle pic.
b. Other silicon carbide products pic.
PS: Silicon Carbide Ceramic includes silicon carbide plate, silicon carbide fish plate, silicon carbide tube/pipe, silicon carbide roller, silicon carbide beam, silicon carbide crucibles and so on other special types. We can customizabled as for your requirement.
Q1: Are you a manufacture or trader?
A:Factory+trade(mainly factories,at the same time,we operates other related products).
Q2: Can we visit your factory?
A:Sure,welcome at any time,seeing is believing.
Q3: What's the MOQ of trial order?
A:No limit,We can offer the best suggestions and solutions according to your condition.
Q4: Which payment terms can you accept?
A:T/T,Western Union,Moneygram,Paypal are available for us.
Q5: After an order is confirmed,when to deliver?
A:15-25days after deposit.
Q6: Is your company accept customization?
A:We have own factory and excellent technical team,and we accept OEM service.
Q7: How about your company's certification?
A:ISO9001 and Test Report,also we could apply other necessary certification.
Q8: How to slove the quality problems?
A:If the products are not confirmed to customer samples or have quality problems,our compay will be responsible to make compensation for it.
Q9: What is the service life of your tubes?
A:The service life of different tube is unlike.It also depends on your using condition and method.
