Specifications
Quartz Glass Tube1. Customized Sizes
2. OD: 2.5-350mm
3. Advanced Equipment and Skilled Engineer

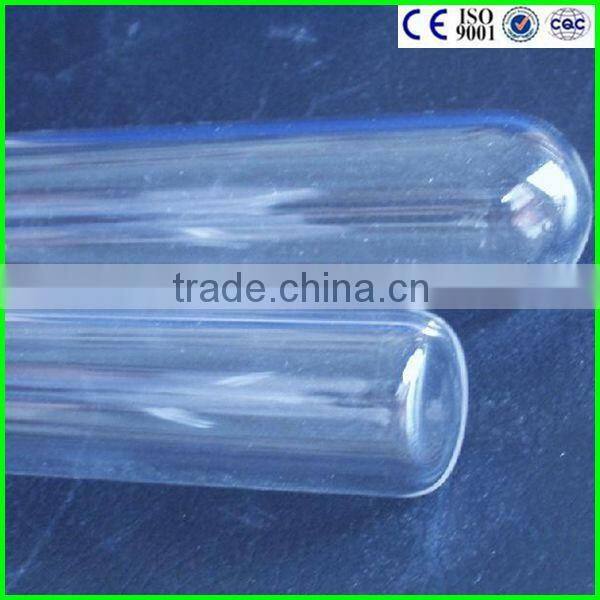

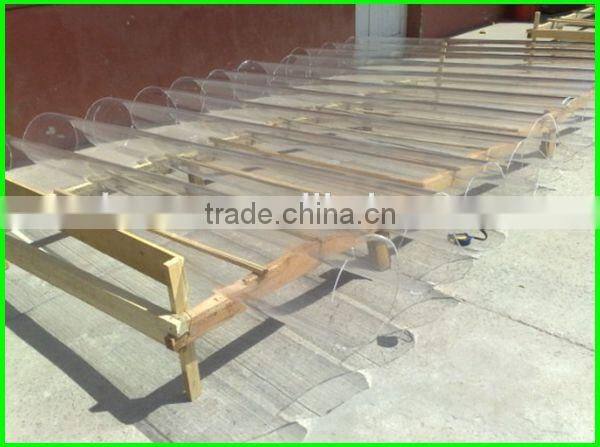

Superior Purity Edge Grinded Quartz Glass Tube
Quartz Glass Tube
1. Customized Sizes
2. OD: 2.5-350mm
3. Advanced Equipment and Skilled Engineer
Quartz Glass Tube Description:
It is with tight size tolerance, slinky form and excellent feature. Melting point at 1730 degree, mainly apply for Thermocouples, samplers and high temperature parts. This products providing to Europe, America, the all and the one quality accord with international standard.
We could make many kind further quartz products according your demand. It is used in thermocouple and equipment of industry.
Quartz Glass Tube Strength:
1. Professional quartz tubes and further processing product factory.
2. Opening 6 sets of quartz tube furnace.
3. Having advanced machine centre and technical glass lathe.
4. Skilled international sales and service team.
Quartz Glass Tube Advantages:
1. High quality, competitive price and elegant appearance.
2. High temperature resistance and corrosion resisting.
3. Accurate dimension according to customs’ request.
4. Long time to use.
Quartz Glass Tube Physical Properties:
Density | 2.2±0.05 (g/cm³) | 1.Thermal stability: cooling from 1100°C to 20°C for three times, No crack.
2.Heating to 1100°C for one hour, No color change |
Hardness | 5.5-6.5 (Mohs') | |
Design Tensile Strength | 4.8X107(N/m²) | |
Design Compression Strength | >1.1X109 (N/m²) | |
Coefficient of Thermal Expansion(20°C-300°C) | 5.7X10-7 (cm/cm°C) | |
Thermal Conductivity (20°C) | 1.4 (W/M.°C) | |
Specific heat(20°C) | 670 (J/kg.°C) | |
Electrical Resistivity (350°C) | 7x107(Ω.cm) | |
Dielectric Constant | 3.75 | |
Dielectric Strength | 5x107(v/m) | |
Softening Point | 1680 (°C) | |
Annealing Point | 1210 (°C) | |
Strain point | 1120 (°C) | |
Short-period working temperature | 1300 (°C) | |
Long-period working temperature | 1100 (°C) |
Quartz Glass Tube Chemical Elements Composition: (unit: ppm)
SiO2 | Al | B | Ca | Co | Cu | Fe | K | Li | Mg | Mn | Ni | Ti | Na |
99.97% | 20 | 0.2 | 2.0 | 0.5 | 0.3 | 1.0 | 3.5 | 1.0 | 0.5 | 0.5 | 0.5 | 2.0 | 3.5 |
Quartz Glass Tube Application:
Widely used in the filed of semiconductor, metallurgy, chemical industry, electric light source, photo-communication, medical equipment, scientific instruments and so on.
We really appreciate your visiting and assisting. For further more information, pls kindly contact with me.
Quartz Glass Tube Packing:
1. Plastic Air Cushion Film
2. Foam Material
3. Paper Carton
4. Wooden Case
Quartz Glass Tube Shipping:
Delivery quartz tube will be arranged 5-7days after the receipt of your payments.
We could supply you the follow shipping way for your choice:
--By DHL/FedEx (Door to door, Home delivery service)
--By Air to your nearest Airport
--By Sea to your nearest Seaport
--By the sellers’ DHL/FedEx Payer’ account or shipping agent
1.Your inquiry related to our products or prices will be replied within 24hours
2. Guarantee samples quality same as mass production quality
3. All our products have 1-year warranties.
4. Offering the support to solve the problem in the application or selling period.
5. Competitive prices based on same quality.
1. Can you accept OEM?
Yes! We can manufacture as per your request specification.
2. Can you deliver the goods via our shipping agent?
Yes, we could help you make the delivery using your shipping agent
3. Can you supply sample?
We could like to give you suitable suggestion about the quartz tube according to your detail application.
4. What about your After-sales service?
We promise that we can change or refund products if there are any quality problem.
If need our help, please feel free to contact us!
