Automatic Lithium Ion Battery Double Pulse Spot Welding Machine Microcomputer Dual Pulse Battery Spot Weld Machine

 automatic lithium ion  battery Double pulse spot welding machine Microcomputer dual pulse spot welder welding machine,battery spot weld machine

product name:

Features:

1 , Microcomputer digital control, precision welding energy is adjustable to accommodate a variety of welding requirements;

2 , Precision controlled discharge time (photoelectric control system);

3 , Static pressure soldering, welding head speed can be adjusted;

4 , High reliability and high efficiency.

Scope:

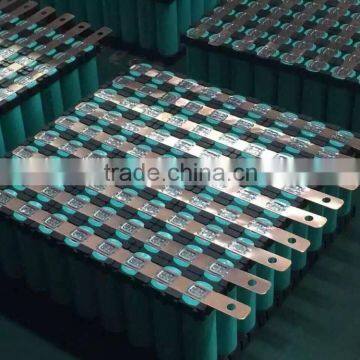

Laptop Battery (18650 et cylindrical lithium) combination welding; lithium-ion battery anode batteries, nickel-aluminum composite tape, protective welding plate or the like; nickel-metal hydride nickel-cadmium batteries in combination welding. It applies to a thickness of 0.25mm or less battery pole piece welded, and the need to adjust the pressure and welding speed precision applications.

Model : TWSL-280

Power : 10KVA (max)

Input Frequency : 50 / 60Hz

Input voltage : 220VAC

Input gas source : 7-8 Bar (kg / cm)

Primary current : 5-30A

Primary short-circuit current : 1800A

The whole structure : Integrated structure

Welding arm structure: Telescopic swing control

Electrodes to the body distance : 100 mm

Cylinder diameter : 20 mm

The number of pulses : 0-8

Pulse energy level : 0-999

Automatic compensation range : + 40V - 40V

Digital display panel : 7-segment LED display

External dimensions : 550 * 240 * 390 mm

Gross weight : 40 kg

FAQ

1 , What is the product ?

It is a welding machine for lithium battery , use for all type of lithium battery  welding .

2 , how is it performance ?

It is  more effectioncy , works faster  ,it can help you increase production run ,

and decrease production cost .

3 , what about the quality guarantee and after-sale service ?

we prrovide one year quality guarantee , full time after-sale service .

4 , we want to open battery factory  or an automating system for lithium battery , how it can do that ?

Yes , we can provide you the battery system and solution .battery spot weld machine
