PMAC802 Motor Protection Controller Relay
- Zhuhai
- Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | PILOT | |
| Model Number | PMAC802 | Type | Other, AC motor protection controller |
Product Description
Specifications
Motor controller1. nine standard protection
2. four optional protection
3. Modbus communication
PMAC802 motor controller
PMAC802 motor controller is used to control the contactor in the AC circuit (rated voltage up to 600V). it integrates measurement, protection and control functions.
Application:
Lower voltage MCC
Integrated process and electrical control
Protection:
9 Standard protection: Start overtime, overload, overcurrent, phase failure, current unbalance, short circuit, earth fault, underload,
external fault.
4 optional protection: Leakage current, Overvoltage, undervoltage, EExe overload (tE)
Measurement:
Current--Ia, Ib, Ic, In, I_unbl
Voltage--Vab, Vbc, Vca (optional)
Power--active power, reactive power (optional)
Power factor (Optional)
Frequency (Optional)
Energy (Optional)
Communication:
Modbus-RTU
2nd Modbus-RTU
Status input(DI):
5
Relay output (DO)
3
One 4~20mA analog output
Display:
LED or LCD

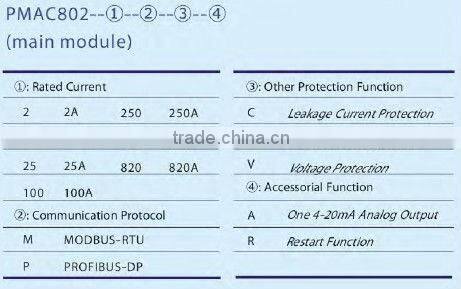

Order information:
For more information, pls kindly contact us. Thanks in advance.
