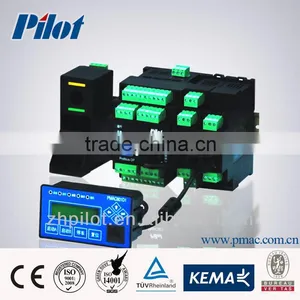

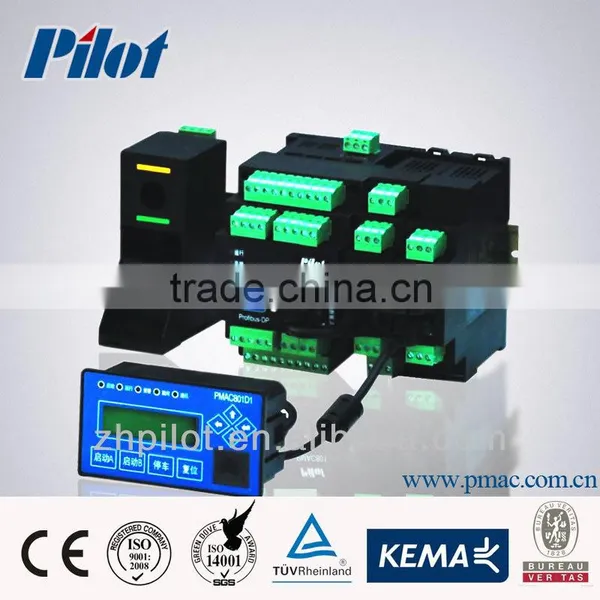

PMAC801 AC three phase Motor Protection Relay
- 20000 Piece / Pieces per Month
- Zhuhai Port
- T/T
Product Details
Place of Origin: | Guangdong, China | Brand Name: | PILOT | Model Number: | PMAC801 |
Motor Type: | AC Motor |
Product Description
PMAC801 Motor Protection Device integrates measurement,protection,and control functions. RS485/ Modbus,optional Profibus module.
1. Use module framework. Several modules can be selected flexibly.
2. PMAC801 provides 17 protection functions such as start overtime protection, overload protection, overcurrent protection, phase failure protection, current unbalance protection, earth fault/leakage current protection, short circuit protection, underload protection, external fault protection, overvoltage protection, undervoltage protection, under power protection, phase sequence error protection, EEx e overload protection, temperature (PTC/NTC) protection, analog input protection.
3. Provides measurements of three phases current, three phase /phase voltage, zero phase sequence current, active power, reactive power, power factor, frequency, and active energy measurements.
4. Provides protection, direct starter, reversing direct starter, star/delta starter, and autotransformer starter etc motor starting control modes.
5. Main module provides 9 DIs for start, stop and reset etc. signals input. If more DIs are needed, an extended digital module can be selected. Some of the DIs are programmable.
6. Main module provides 5 DOs to meet varies of starting control modes and protection action. If more DOs are needed, an extended digital module can be selected. Some of the DOs are programmable.
7. Provides 4~20mA analog output for DCS.
8. 8 trip events can be stored in non-volatile memory.
9. Through an extended analog module, 2 analog input or 1 analog and 1 hot resistance input can be added.
10. Small size and compact configuration.
11. Easy installation. Proper for 35mm DIN rail.
Application
Lower volatge MCC
Integrated process and electrical control
6 modules
main module, current measurement module (CT module), display module, extended digital module, extended analog module,and power supply module.
9 standard protection
- start overtime
- overload
- overcurrent
- phase failure
- current unbalance
- earth fault
- short circuit
- underload
- external fault overvoltage
8 optional protection
- Overvoltage
- Undervoltage
- Phase sequence (only for PMAC801)
- Under power
- EEx e overload
- Temperature and analog input (only for PMAC801)
- Leakage current
Technical Parameters
Rated voltage of Motor: AC 380V or 660V. Direct connect to PMAC801.
Rated current:

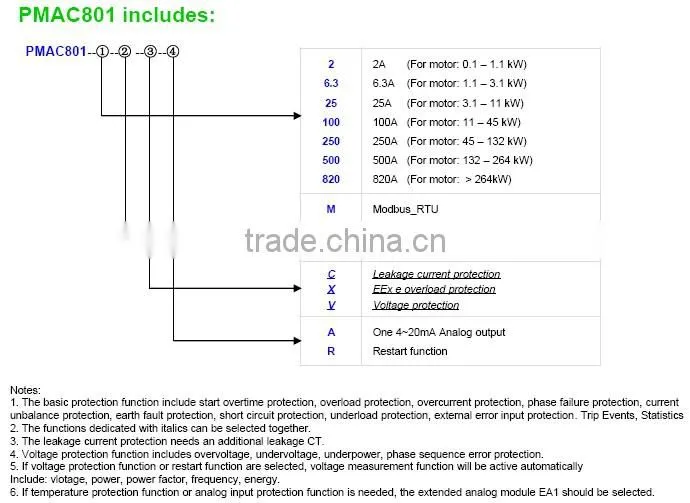

Rated current of motor | Rated current of PMAC801 |
0.5A~2A | 2A |
1.6A~6.3A | 6.3A |
6.3A~25A | 25A |
25A~100A | 100A |
100A~250A | 250A |
250A~500A | 500 A |
500A~820A | 820A |
Note: Users can choose proper type of PMAC801 for motors according to the form above.
Power supply: 85~265V AC or DC.
Type of digital input: PMAC801 provides internal 30VDC power supply for digital input circuit.
Output capacity of control relay:250V/16A, 380V/2A, 110VDC/0.5A
Output capacity of signal relay: 250VAC/5A
Note: PMAC801 has 5 relays, the front 3 are control relays, and the others are signal relays.
Range & Accuracy
Item | Range | Precision | Item | Range | Precision |
Current | 10%~200% Ie | ±1% | Power factor | 0~1 | ±1% |
200%~800% Ie | ±3% | ||||
Leakage current | 10%~100% In | ±1% | Active power | 0~600.0KW | ±2% |
PTC/NTC | 10R~10K | ±5% | Active energy | 99,999,999.9kWh | ±5% |
Voltage | 50%~150%Ue | ±1% | Analog output | 4mA~20mADC | ±2% |
Frequency | 45HZ~65HZ | ±1% | Analog input | 4mA~20mADC | ±2% |
EMC
Electrostatic discharge | EN 61000-4-2, Level 3 |
Electromagnetic field immunity | EN 61000-4-3, Level 3 |
Fast transient/burst immunity | EN 61000-4-4, Level 4 |
Surge immunity | EN 61000-4-5, Level 3 |
Conducted Emission | EN 55022, Class B |
Radiated Emission | EN 55022, Class B |
Environmental Conditions
Ambient temperature of work | -10~+55°C |
Ambient temperature of storage | -25~+70°C |
Humidity | ≤85% |
Dimension and Installation
