Application
Lower volatge MCC
Integrated process and electrical control

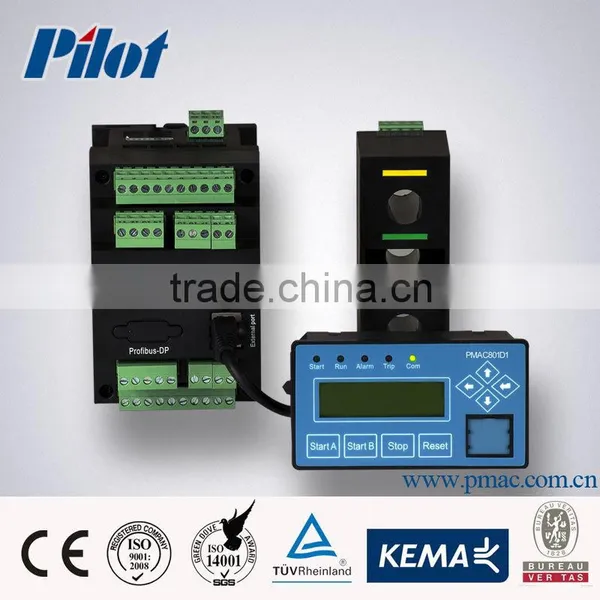

6 modules
main module, current measurement module (CT module), display module, extended digital module, extended analog module,and power supply module.
9 standard protection
- start overtime
- overload
- overcurrent
- phase failure
- current unbalance
- earth fault
- short circuit
- underload
- external fault overvoltage
- Overvoltage
- Undervoltage
- Phase sequence (only for PMAC801)
- Under power
- EEx e overload
- Temperature and analog input (only for PMAC801)
- Leakage current
Technical Parameters
Rated voltage of Motor:
AC 380V or 660V. Direct connect to PMAC801.
Rated current:
Rated current of motor |
Rated current of PMAC801 |
0.5A~2A |
2A (For Motor: 0.1 - 1.1kW) |
1.6A~6.3A |
6.3A (For Motor: 1.1 - 3.1kW) |
6.3A~25A |
25A (For Motor: 3.1 - 11kW) |
25A~100A |
100A (For Motor: 11 -45kW) |
100A~250A |
250A (For Motor: 45 - 132kW) |
250A~500A |
500 A (For Motor: 132 - 264kW) |
500A~820A |
820A (For Motor > 264kW) |
Note: Users can choose proper type of PMAC801 for motors according to the form above.
Power supply: 85~265V AC or DC.
Type of digital input: PMAC801 provides internal 30VDC power supply for digital input circuit.
Output capacity of control relay:250V/16A, 380V/2A, 110VDC/0.5A
Output capacity of signal relay: 250VAC/5A
Note: PMAC801 has 5 relays, the front 3 are control relays, and the others are signal relays.
Range & Accuracy
Item |
Range |
Precision |
Item |
Range |
Precision |
Current |
10%~200% Ie |
±1% |
Power factor |
0~1 |
±1% |
200%~800% Ie |
±3% |
||||
Leakage current |
10%~100% In |
±1% |
Active power |
0~600.0KW |
±2% |
PTC/NTC |
10R~10K |
±5% |
Active energy |
99,999,999.9kWh |
±5% |
Voltage |
50%~150%Ue |
±1% |
Analog output |
4mA~20mADC |
±2% |
Frequency |
45HZ~65HZ |
±1% |
Analog input |
4mA~20mADC |
±2% |
EMC
Electrostatic discharge |
EN 61000-4-2, Level 3 |
Electromagnetic field immunity |
EN 61000-4-3, Level 3 |
Fast transient/burst immunity |
EN 61000-4-4, Level 4 |
Surge immunity |
EN 61000-4-5, Level 3 |
Conducted Emission |
EN 55022, Class B |
Radiated Emission |
EN 55022, Class B |
Environmental Conditions
Ambient temperature of work |
-10~+55°C |
Ambient temperature of storage |
-25~+70°C |
Humidity |
≤85% |

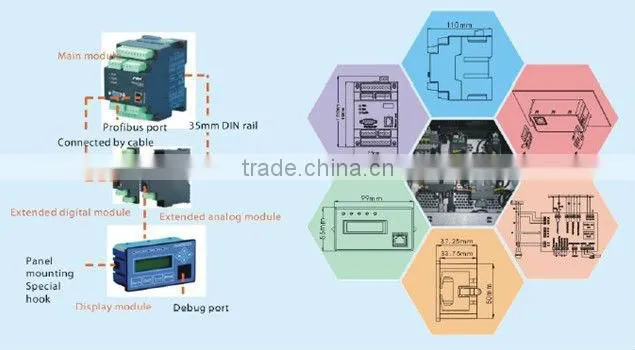

Dimension and Installation
