60W Bridgelux Chip Led and High Quality Monocrystalline Silicon Import From Usa All in One Solar Street Light

60W Bridgelux Chip Led and High Quality Monocrystalline Silicon Import From Usa All in One Solar Street Light photo-1
60W Bridgelux Chip Led and High Quality Monocrystalline Silicon Import From Usa All in One Solar Street Light photo-2

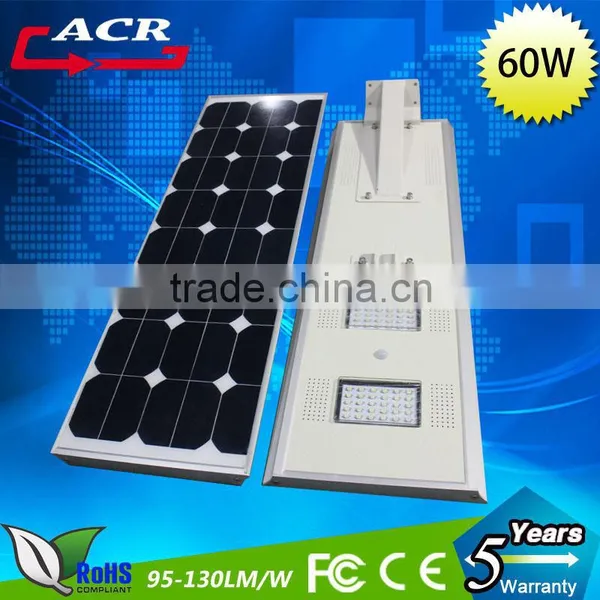

60W Bridgelux Chip Led and High Quality Monocrystalline Silicon Import From Usa All in One Solar Street Light photo-3
60W Bridgelux Chip Led and High Quality Monocrystalline Silicon Import From Usa All in One Solar Street Light photo-4
60W Bridgelux Chip Led and High Quality Monocrystalline Silicon Import From Usa All in One Solar Street Light photo-5

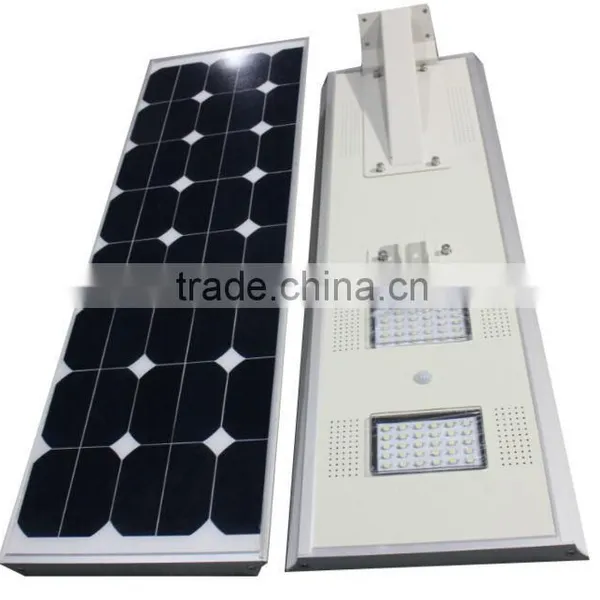

60W Bridgelux Chip Led and High Quality Monocrystalline Silicon Import From Usa All in One Solar Street Light photo-6
US$ 370 - 620 MOQ: 2 Pieces
Key Specifications
Get Latest Price
LED Light Source:
Bridgelux
Input Voltage(V):
DC12/24V
Lamp Power(W):
60
Payment & Shipping
Payment Methods:
Port of Shipment:
zhongshan/shengzhen
Delivery Detail:
Delivery time depends on order quantity.
LED Light Source Bridgelux
Input Voltage(V) DC12/24V
Lamp Power(W) 60
Lamp Luminous Flux(lm) 6000
Lamp Luminous Efficiency(lm/w) 100
Color Temperature(CCT) Pure White
Working Temperature(℃) -40, +50
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
IP Rating IP65
Certification CCC, CE, FCC, LVD, UL
Warranty(Year) 3
Place of Origin Guangdong, China
Brand Name ACR
Model Number ACR-SS100-60w

Why to choose acecore company to buy all in one solar led street light

  • OEM as customer required as best as we can
  • best price : factory directly supply with private mold
  • high quality: professional QC to control the quality and all products with CE ROHS and ip65 certification
  •  fast delivery:sample  less than 4days, normal order less than 10days
  • best service: 24 hours support
  • products hot sale: hot sale in china mainland and many other countries.

60W bridgelux chip led and high quality monocrystalline silicon import from usa  all in one solar street light

Product Description

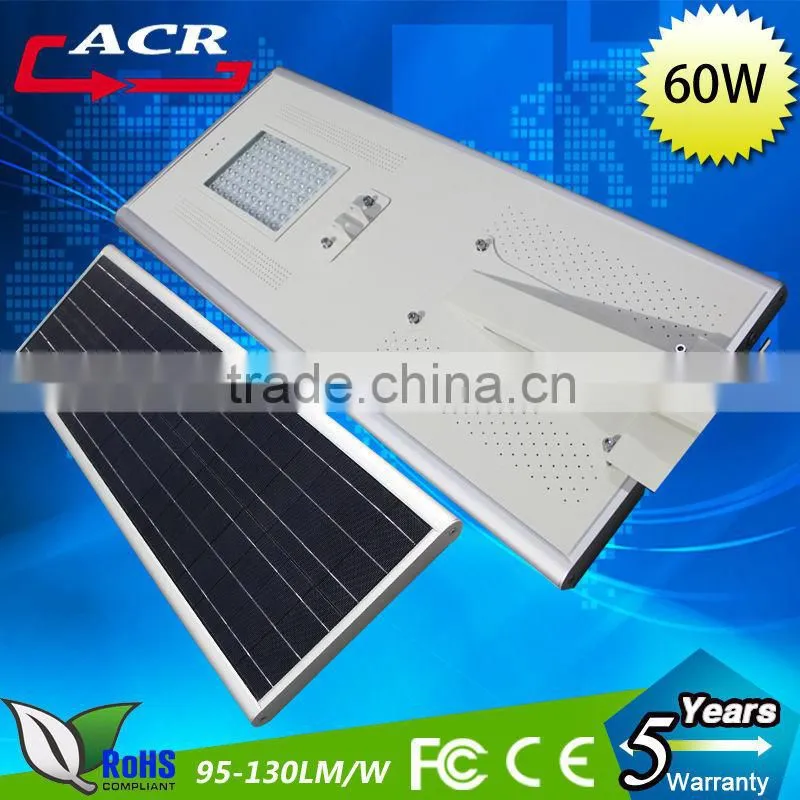

   60W bridgelux chip led and high quality monocrystalline silicon import from usa all in one solar street light

60W bridgelux chip led and high quality monocrystalline silicon import from usa all in one solar street light

1. Technical Parameters





Model ACR-SS100-60w    all in one solar led street light
Solar panelMax power18V80W ( monocrystalline silicon )
Life time25 years
BatteryTypeLithium iron phosphate Battery 12.8V/33AH
Life time5 years
LED Lamp                (with sensor)Max power12V 60W
Led chip brandUSA Bridgelux
Lumen (LM)6000-6600m
Life time50000hours
Viewing Angle120°
Charge timeBy sun6hours  (with enough strong shine )
Discharge timeFull power>15hours
Saving mode>30hours
Working TemperatureRange( ℃ )-30℃~+70℃
Colour temperatureRange(k)6000k
Mounting heightRange (m)7-9m
Space between lightRange (m)25-30m
Lamps material of mainAluminium alloy
CertificateCE/FC/Rohs/IP65
Warranty period3-5years
Packing & WeightProduct size1200*380*160mm
Product weight22kg
Packing boxneutral carton
Corton size1230*460*230 mm
Q'ty/ctn1sets/ctn
Gross weight25.5kg
Packs Containers20GP280pcs
40GP620pcs







2.Specificaton



  •  Using 5 years warranty best quality lithium iron phosphate battery, ensure the service life of the product.
  • Long-life PV modules with more than 25 years of power generation capacity with monocrystalline silicon imported from USA.
  •  use cree led or bridgelux chip led with high lumen and best quality ,distributed light and power - no single point of failure for enhanced security.
  • all in one Integration design, easy to carry, put solar panel, LED lamp, battery and controller all in one, cableless.
  • work more than 15 hours when normal discharge and more than 30 hours when in energy saving state
  • Self-contained solution - Light on/off controlled by automatic daylight sensing or hour preset, no running or maintenance cost.
  • With CE,ROHS and IP65 certificate.

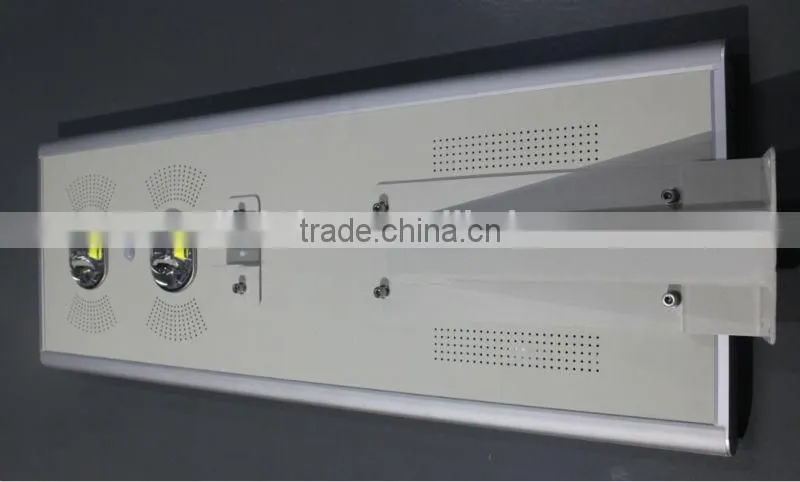

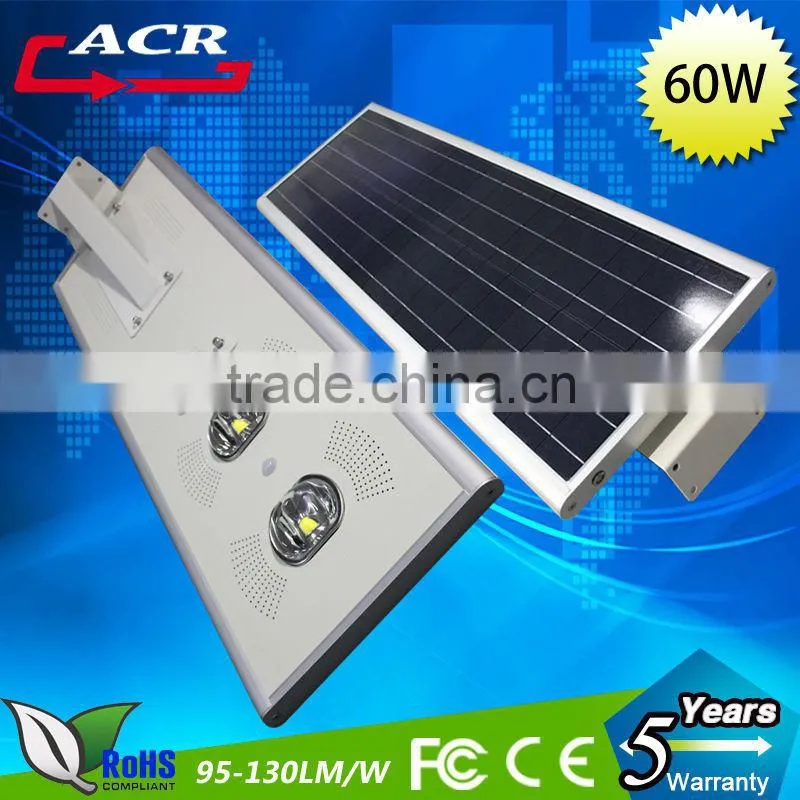

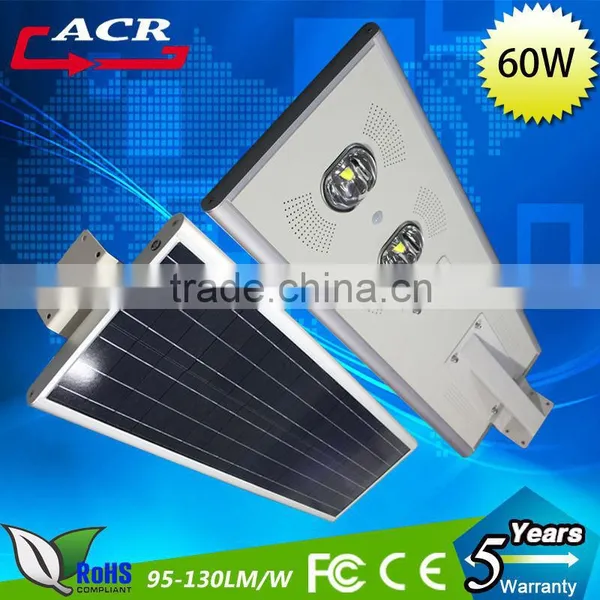

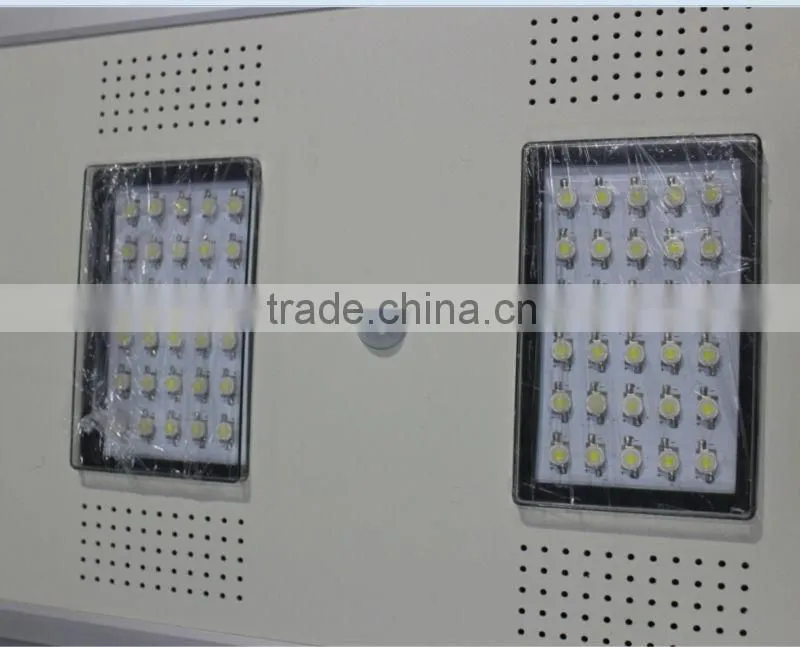

Single LEDS and COB LEDS Options

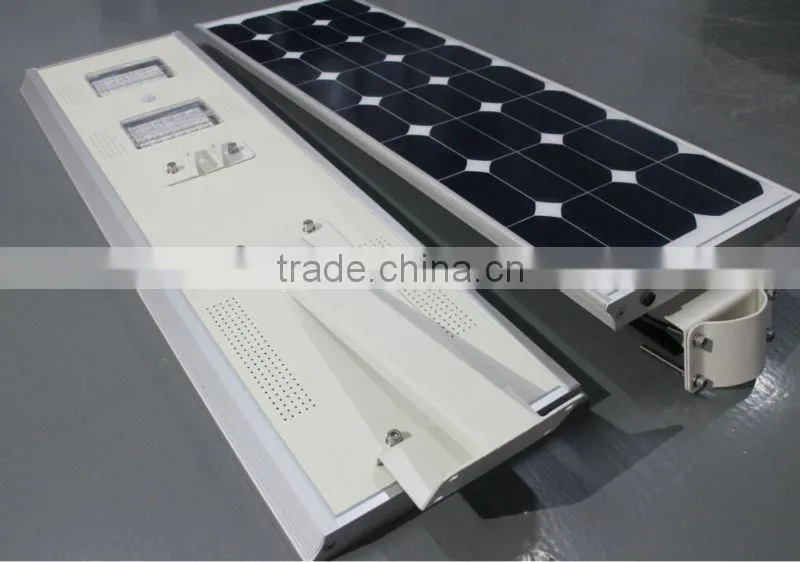

60W bridgelux chip led and high quality monocrystalline silicon import from usa all in one solar street light


 60W bridgelux chip led and high quality monocrystalline silicon import from usa all in one solar street light

60W bridgelux chip led and high quality monocrystalline silicon import from usa all in one solar street light

60W bridgelux chip led and high quality monocrystalline silicon import from usa all in one solar street light

60W bridgelux chip led and high quality monocrystalline silicon import from usa all in one solar street light

60W bridgelux chip led and high quality monocrystalline silicon import from usa all in one solar street light
 60W bridgelux chip led and high quality monocrystalline silicon import from usa all in one solar street light

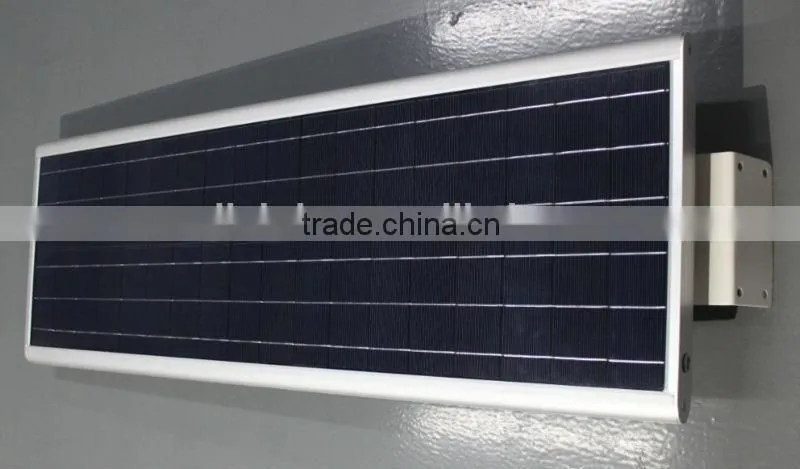

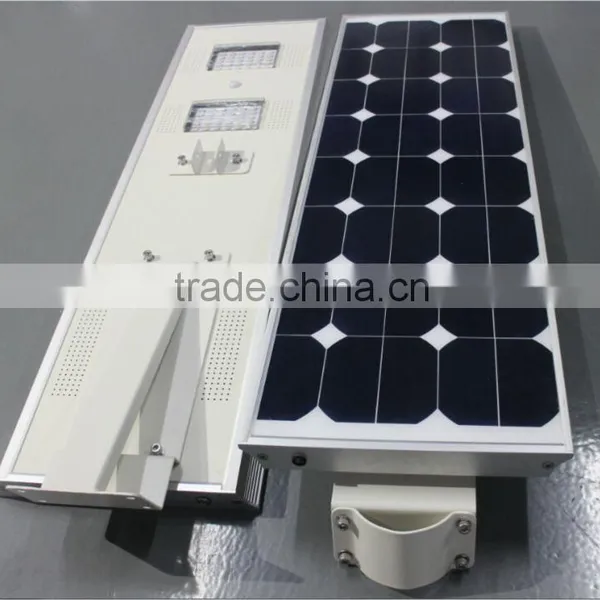

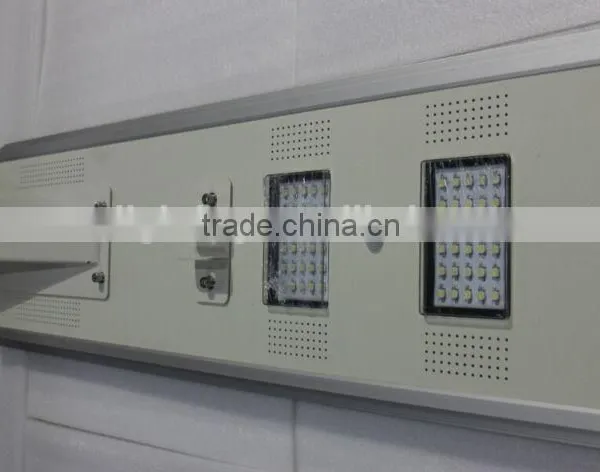

Product parts:
The product is made up with the integrated parts (solar panel, Li-Fe battery, LED,

MPPT controller and human intelligence induction system) and the light pole.


Working characters:
The solar panel converts sunlight into electricity and stored in Li-Fe battery via controller, the LED

light will work in night automatically by light sensor control, and provide light for the darkness area,

the human intelligence induction system can save the energy when the lighting is not necessary









3.Application:

  • Hiking
  • Night Fishing
  • Hunting
  • Third World Country Urban Houses
  • Weather Calamities
  • Famine
  • Pilgrimage
  • Parks
  • Reserves
  • Commercial
  • Industrial estates

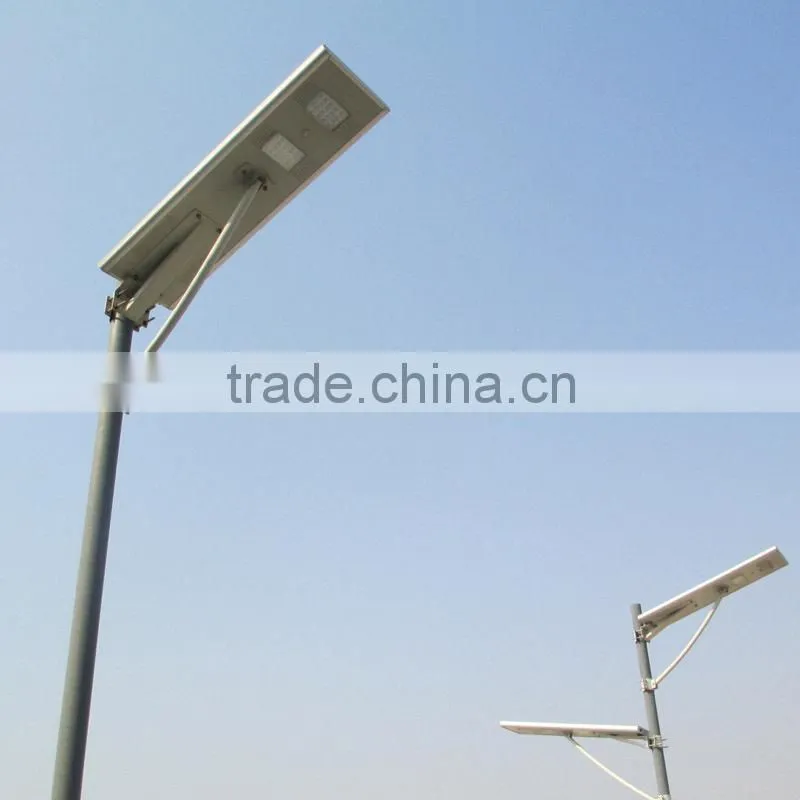

60W bridgelux chip led and high quality monocrystalline silicon import from usa all in one solar street light



60W bridgelux chip led and high quality monocrystalline silicon import from usa all in one solar street light





4. Our Capacity

Acecore Optoelectronics Technology Co., Ltd. (Zhongshan) was founded in 2006, dedicated to the production and sales

of high quality LED outdoor light and indoor lights,  electronic energy-saving lamps, T4 / T5 tube light indoor

lamps and lanterns, total product more than hundred varieties.Company has engineers, senior technicians,

and many other professional technology research and development staff and first-class production and

testing equipment, guarantee the production of high quality.Strong technical force, complete production

testing equipment and strict quality control process to ensure theproduct quality, won the trust of many

custoers domestic and abroad.

 60W bridgelux chip led and high quality monocrystalline silicon import from usa all in one solar street light





Our Service



1.Fast and High Qualtiy Service.



  •  Provide you the fastest and best service.
  •  Respon within 24hours.Professional salesmen server you one to one.
  •  Delivery fast.



2. After Sale Service



  •  We offer the preventative maintenance and after sales Service.From the first begining to the deal close, our service to support the whole process.
  • We will take the initiative to solve the problems and troubles after service.
  • We also offer 5 year warranty period.



3.Welcom to visit our factory anytime!



  •    We can provide IES/datasheet and other data materials if you need
  •    Don't hesitate to contact me, NOW!!!!    O(∩_∩)O
