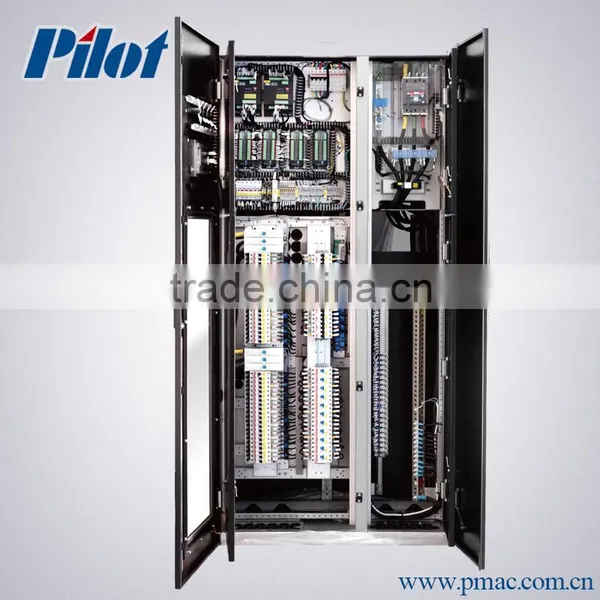

Intelligent Power Distribution Unit
PMAC Series iPDU for Data center and UPS
Standard Function
- Incoming circuit : 1 phase or 2 phase AC power
- Outgoing circuit : 21, 42, 63...168 Branch circuit
- 7’’ Color LCD Touch screen HMI
- Low-low and high-high current alarm and data log
- Installed Monitored SPD surge
- Support Modbus_RTU RS485 communication
- Support Woehner Hot-plug system for MCB
- Monitorting branch circuit ON/OFF status
Optional Function
- K-factor isolation Transformer (K13,K20)
- Static Transfer Switch (STS)
- Support customization
General
- Floor standing installation, suit for raised and non-raised floor environments
- HMI monitors branch circuit from 21 to 168
- Combine PILOT® BPCM for real time power monitoring, historical energy record
- PUE management
- Flexible & Reliable Power Distribution Centre
- Key components from ABB, SIEMENS, Woehner etc.
- Hot-plug system, easy maintanance
- Independent wiring zone, monitoring zone
- Incoming and Outgoing Circuit Power Measuring
- Incoming circuit : Voltage, Current, Active power, Reactive power, Power factor, Frequency, Active energy, Reactive energy, Demand, Max. Demand, THD (U & I), Leakage current (optional), Temperature (optional)
- Outgoing circuit : Current, Active power, Reactive power, Power factor, Active energy, Reactive energy, Demand, Max. Demand, THD
- Alarm function
- Incoming circuit : Alarm for Voltage, Current, Current unbalance
(Optional alarm for Leakage current, Temperature alarm)
- Outgoing circuit : Alarm for current (lo-limit, lo-lo-limit, hi-limit, hi-hi-limit)
Technical Specification
Dimension
Order Information
Photos
For more information, please feel free to contact us ~
