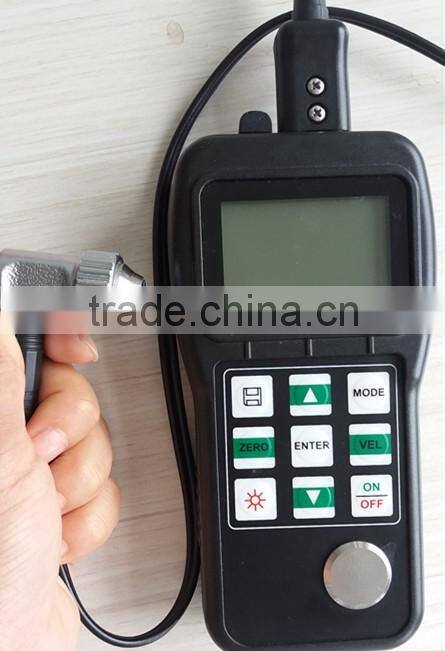

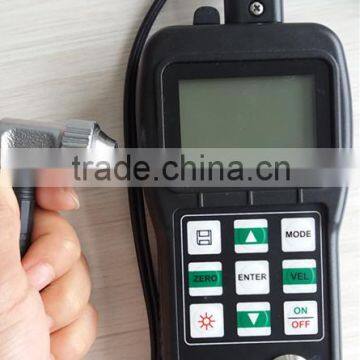

China Manufacter Portable Accuracy Ultrasonic thickness gauge Quality Choice

Display: 128×64 LCD with LED backlight.

Measuring range: 0.75mm~300.0mm (0.03inch~11.8 inch)

Sound velocity: 1000m/s~9999m/s (0.039~0.394in/µs

Display resolution:0.01mm or 0.1mm (lower than 100.0mm)

                  0.1mm (more than 99.99mm)

Accuracy: ±(0.5%Thickness +0.02)mm, depends on Materials and conditions

Units: Metric/Imperial unit seletable.

Lower limit for steel pipes:

5MHz probe: F20mm´3.0mm(F0.8´0.12 inch)

10MHz probe: F20mm´3.0mm(F0.6´0.08 inch)

Power Source: 2pcs 1.5V AA size, batteries.100 hours typical operating time(LED backlight off).

Communication: USB serial port

Outline Dimensions: 150mm×74mm×32mm

Weight: 238 g

Four measurements readings per second for single point measurement,

Memory for up to 5 files(up to 100 values for each file) of stored values

No

Item

Quantity

Note

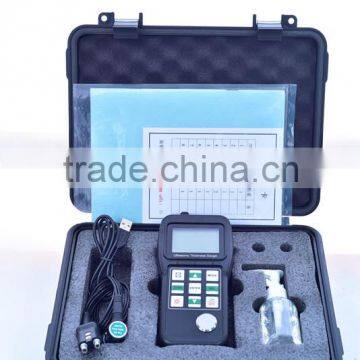

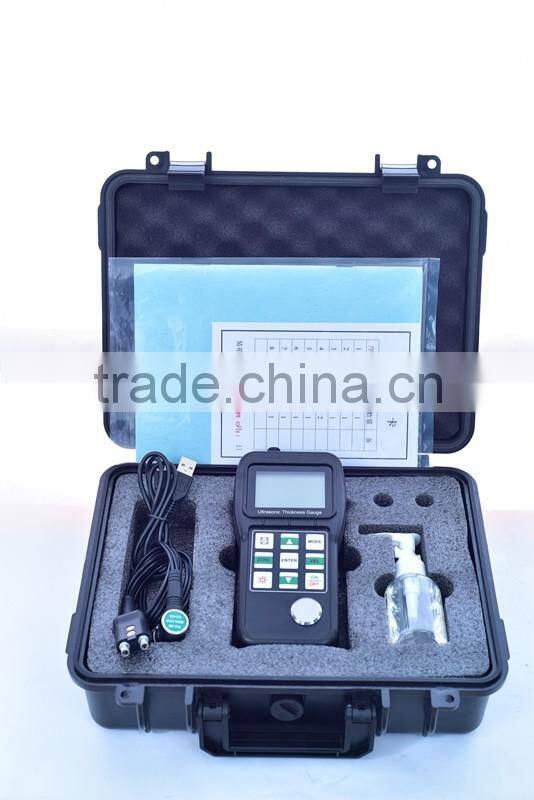

Standard Configuration

1

Main body

1

2

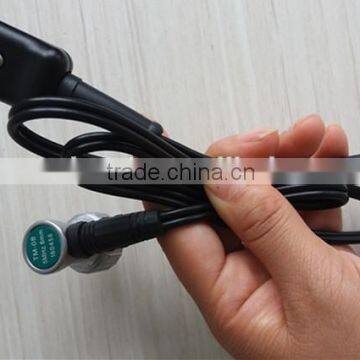

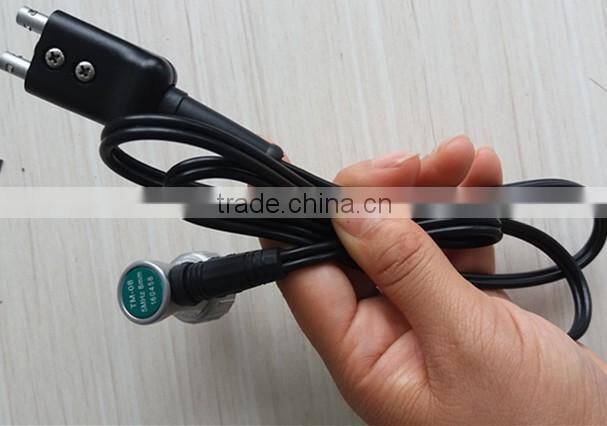

Transducer

1

Model: TM-08

3

Couplant

1

4

Instrument Case

1

5

Operating Manual

1

6

Alkaline battery

2

AA size

12

DataPro Software

1

13

Communication Cable

1

Optional

Configuration

7

Transducer: TM-12

Appendix A

8

Transducer: TM-06

9

Transducer: HT5

10

Mini thermal printer

1

11

Print cable

1

Model

Freq. MHz

Diam. Min.

Measuring range

Lower limit

Description

TM-12

2

14

3.0mm-300.0mm (in steel)

20

For thick, highly attenuating, or highly scattering materials

TM-08

5

8

1.2mm-230.0mm (in steel)

20mm×3.0mm

Normal measurement

TM-08/90

5

8

1.2mm-230.0mm (in steel)

20mm×3.0mm

Normal measurement

TM-06

7

6

0.75mm-80.0mm (in steel)

15mm×2.0mm

For thin pipe or small curvature pipe wall thickness measurement

HT-5

5

13

3mm-200mm (in steel)

30

For high temperature measurement (up to 300℃)

HT5-2

5

13

3mm-200mm (in steel)

30

For high temperature measurement (up to 550℃)
