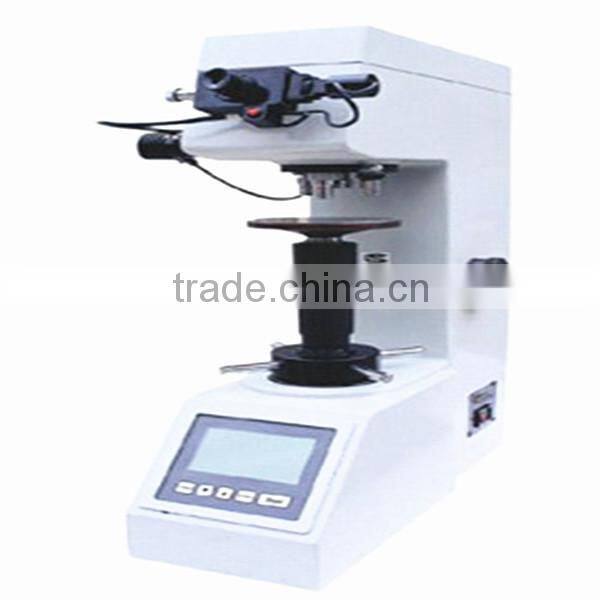

Digital Display Low Load Brinell Hardness Tester Model HBS-62.5

Specifications

TMTeck Manufacturing LTD. (hereafter “TMTeck”) is a leading NDT manufacturers and suppliers in Beijing China and provides innovative technologies and comprehensive know-how to benefit customers in a lot of countries around the world.Till now,TMTeck has been active in the areas of technology-driven inspection solutions that deliver productivity, quality and safety.

     Began from the Ultrasonic Flaw Detector and Coating Thickness Gauge,now TMTeck has developed more than 10 series of testing instruments, including Ultrasonic Flaw Detector, Coating Thickness Gauge,Hardness Testers,Ultrasonic Thickness Gauge ,their accessories and other NDT instruments. These products are widely used in the analysis of materials that enable our customers to monitor, control and validate their critical processes and applications,also our goods has CE certificates.

Feature& Use:

Large LCD screen, menu operating, complete function with data processing, hardness value conversion and so on :

It can be used to determine the Brinell hardness of unquenched steel, cast iron, non-ferrous metals and soft bearing alloys, etc. It is especially suitable to determine the Brinell hardness of soft metal materials and small parts.

Specifications

Measuring range: 8-650HBW

   Test force: 9.807, 49.03, 98.07, 153.2, 294.2, 612.9N

                     (1, 5, 10, 15.625, 30, 62.5kgf)

   Max. height of test piece: 180mm

   Depth of throat: 125mm

   Magnifications of measuring system: 125X, 50X

   Min. scale value of the optical micrometer: 0.5μm

   Power supply: 220/110V AC, 50 or 60Hz

   Dimensions: 580 x 260 x 730mm

   Weight: Approx. 90kg

Standard accessories:

   Large flat anvil: 1 pc.

   Small flat anvil: 1 pc.

   V-notch anvil: 1 pc.

   Tungsten carbide ball penetrator: Φ1, Φ2.5mm, 1 pc. each

   Brinell standardized block: 2 pcs.

   Printer: 1 pc.

TMTeck is committed to the maintenance of long-term partnership with our clients by offering unparalleled services, technology advice and assistance.We sincerely hope friends from all over the world come to our factory to visit,communicate and cooperate!!!

If you have any problems,please dn't hesitate to contact me.
