Leeb Hardness Tester

Specifications

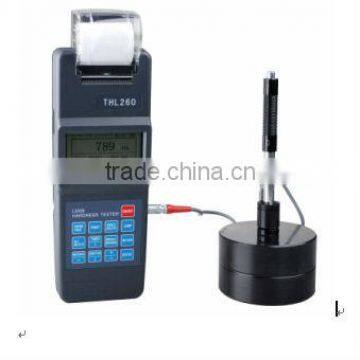

                                                LEEB HARDNESS TESTER THL260

Advantages

l        Large screen(128×64 dot matrix LCD), showing all functions and parameters.

l        Test at any angle, even upside down.

l        Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HV, HB, HS, HL and three types of strength values immediately.

l        Seven impact devices are available for special application. Automatically identify the type of impact devices.

l        Large capacity memory can save 250 groups (at most 6500 single time measured value) of datas, each group include: most 26 single time measured value,average value,measure time and data, the impact direction,number of times,material and hardness scale...etc., can keep over a long period of time with have hereafter browse,edit,print.

l        Upper and lower limit can be preset. It will alarm automatically when the result value exceeding the limit.

l        Batteryinformation indicates the rest capacity of the battery and the charge status.

l        User calibration function.

l        RS232  port with the PC humanity multi-functions data proceeding software.

l        Auto power off to save energy.

l        Excellent after-sale service system for high quality products---two years’ guarantee and all life maintenance. Easy to buy and comfortable to use.

Main Application

l        Die cavity of molds

l        Bearings and other parts

l        Failure analysis of pressure vessel, steam generator and other equipment

l        Heavy work piece

l        The installed machinery and permanently assembled parts

l        Testing surface of a small hollow space

l        Material identification in the warehouse of metallic materials

l        Rapid testing in large range and multi-measuring areas for large-scale work piece

Technical Specifications

l        Measuring range:HLD(170~960)HLD

l        Measuring direction:360°

l        Hardness Scale:HL,HB,HRB,HRC,HRA,HV,HS

l        Display:dot matrix LCD,128×64 dots

l        Data memory: 250 groups max.(relative to impact times 32~1)

l        Continuous working period:about 150 hours(With backlight off, no printing)

l        Communication interface:RS232
