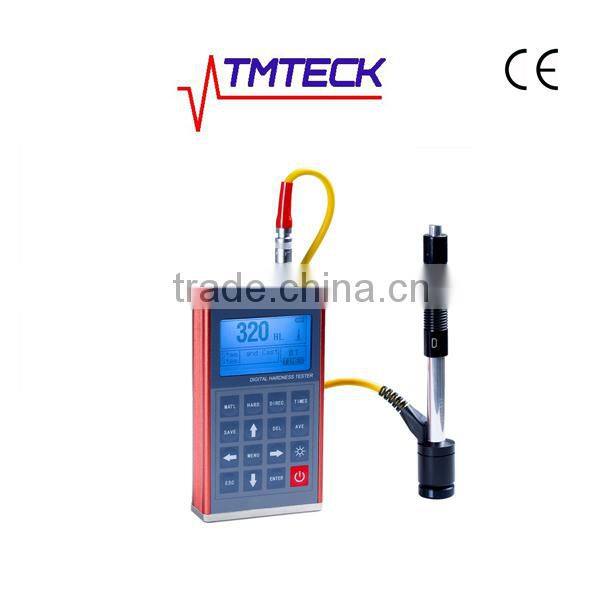

Portable Leeb Hardness Tester THL280

Specifications

128*64 matrix with back-light, showing all functions and parameters.
Converts to all hardness scales (HV,HB,HRC,HRB,HRA,HS)

Leeb hardness tester THL280



Features

LCD display of 128×64 matrix with back-light, showing all functions and parameters.

Converts to all common hardness scales (HV,HB,HRC,HRB,HRA,HS).

English displaying and easy and convenient menu operation.

Powerful PC Software available and USB 1.0 interface.

7 types of Impact Device optional, which don't need to be recalibrated when changing them.

Memory of 600 groups data(impact times:32~1).

Lower limit setting and sound alarm.

Material of “cast steel” is added; HB values can be read out directly when D/DC impact device is used to measure “cast steel” work piece.

Printer be separated from main unit and copies of testing results can be printed as required.

In-built Smart Li lon rechargeable battery while USB connected and charging controlling circuit.

Inbuilt function of Software Calibration.

Two ways of switching off by key and automatically



Specifications



Hardness scale                           HL, HB, HRB, HRC, HRA, HV, HS

Memory                                      48~600 groups (impact times: 32~1)

Measuring range                        HLD(170~960)See below table 1 and table 2

Accuracy                                    ±6HLD (760±30HLD) error of displayed value

                                                   6HLD (760±30HLD) repeatability of displayed value

Standard Impact Device             D

Optional Impact Devices            DC/D+15/G/C/DL

Max. Workpiece Hardness           996HV(For Impact Devices D/DC/DL/D+15/C)

                                                     646HB(For Impact Device G)

Min. Radius of Workpiece (convex/concave)   Rmin = 50mm (with special support ring Rmin= 10mm)

Min. Workpiece weight               2~5kg on stable support

                                                   0.05~2kg with compact coupling

Min. Workpiece thickness           5mm (Impact Devices D/DC/DL/D+15)

                                                   1mm (Impact Device C)

                                                   10mm (Impact Device G)

Min. thickness of hardened surface  0.8mm

Power                                      Rechargeable Li lon battery 3.7V/600mA, 4 years life time

Continuous Working time          approx. 100 h (no back light off)

Charging time                             2-3.5 h

Operating temperature               0~40°C

Relative humidity                      ≤90%

Overall dimensions                   125*67*31mm (main unit)

Weight                                        0.3kg (main unit)

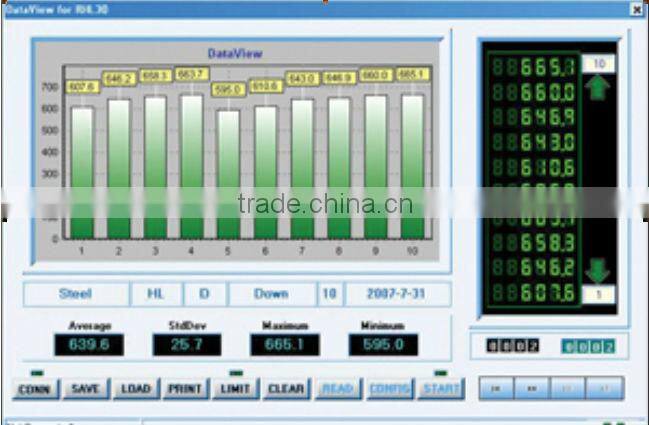

Datapro for Hardness tester THL280

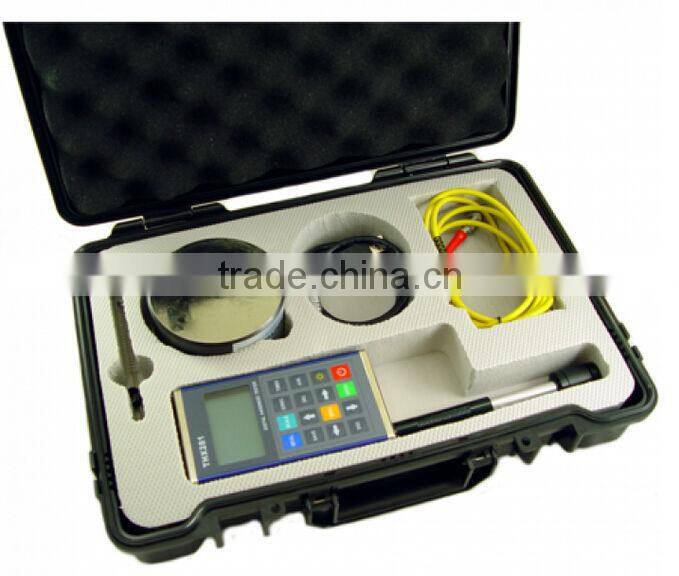

Standard Configuration



Seq	Name	Qty	Remark
1	THL280 Main Unit	1	Standard configuration
2	Impact Device Type D	1	Standard configuration
3	Leeb Standard Test Block	1	Standard configuration
4	Cleaning Brush	1	Standard configuration
5	Supporting Ring	1	Standard configuration
6	Communication Cable	1	Standard configuration
7	Manual	1	Standard configuration
8	Carrying Case	1	Standard configuration
9	THL280 DataPro Software(USB)	1	Standard configuration
10	Battery Case Tool	1	Standard configuration
11	Mini-printer	1	Optional configuration
